HWA-TXTMU 1/2

Part of the HWA Series

Ordering Code: 0067620

UPC: 098268589610

Lead Free: NO

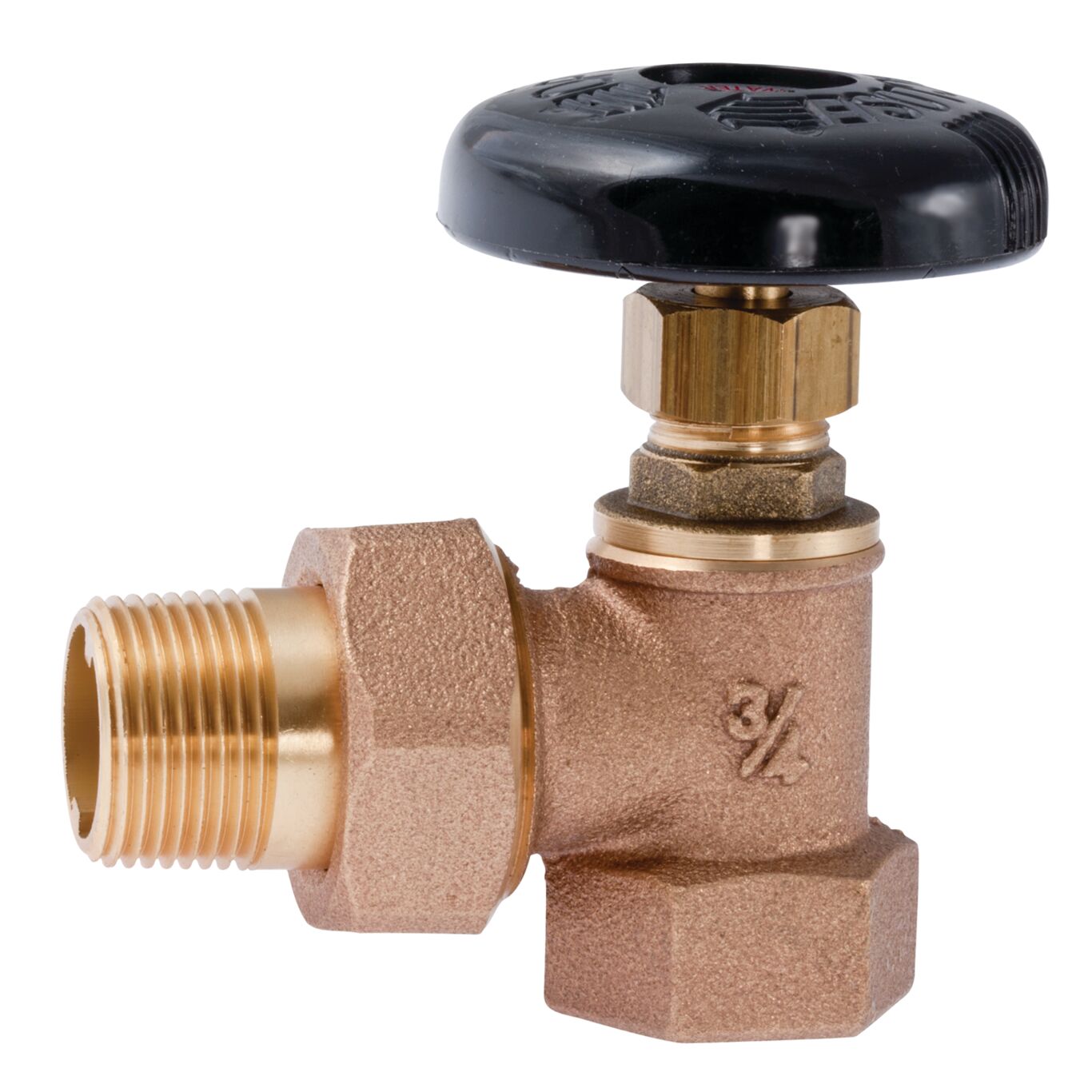

1/2 In Bronze Hot Water Angle Valve, Fip X Male Union

This 1/2 inch hot water angle valve is used in heating applications for gravity hot water heating systems only. It feature a bronze disc, rising stem and phenolic handwheel. The maximum working pressure is 60 PSI (4.2 BAR) (non shock) for hot water. It has FIP x male union connection.

Product Features

  • FIP x male union connection
  • Bronze body
  • Rising stem
  • Screwed in bonnet
Specifications
Body Material Bronze
Body Pattern Angle
BrandName Watts
Control Type Handwheel
Inlet Connection Size 1/2 IN
Inlet Connection Type Male Threaded or Socket
Inlet Thread Type NPT
LeadFree NO
Maximum Pressure-PSI 60
ModelNumber HWA-TXTMU 1/2
Outlet Connection Size 1/2 IN
Outlet Connection Type Union Joint
Outlet Thread Type NPT
Part Number 0067620
Series HWA
Stem Shaft Material Brass
