Part of the HWA Series

Ordering Code: 0067621

UPC: 098268589627

Lead Free: NO

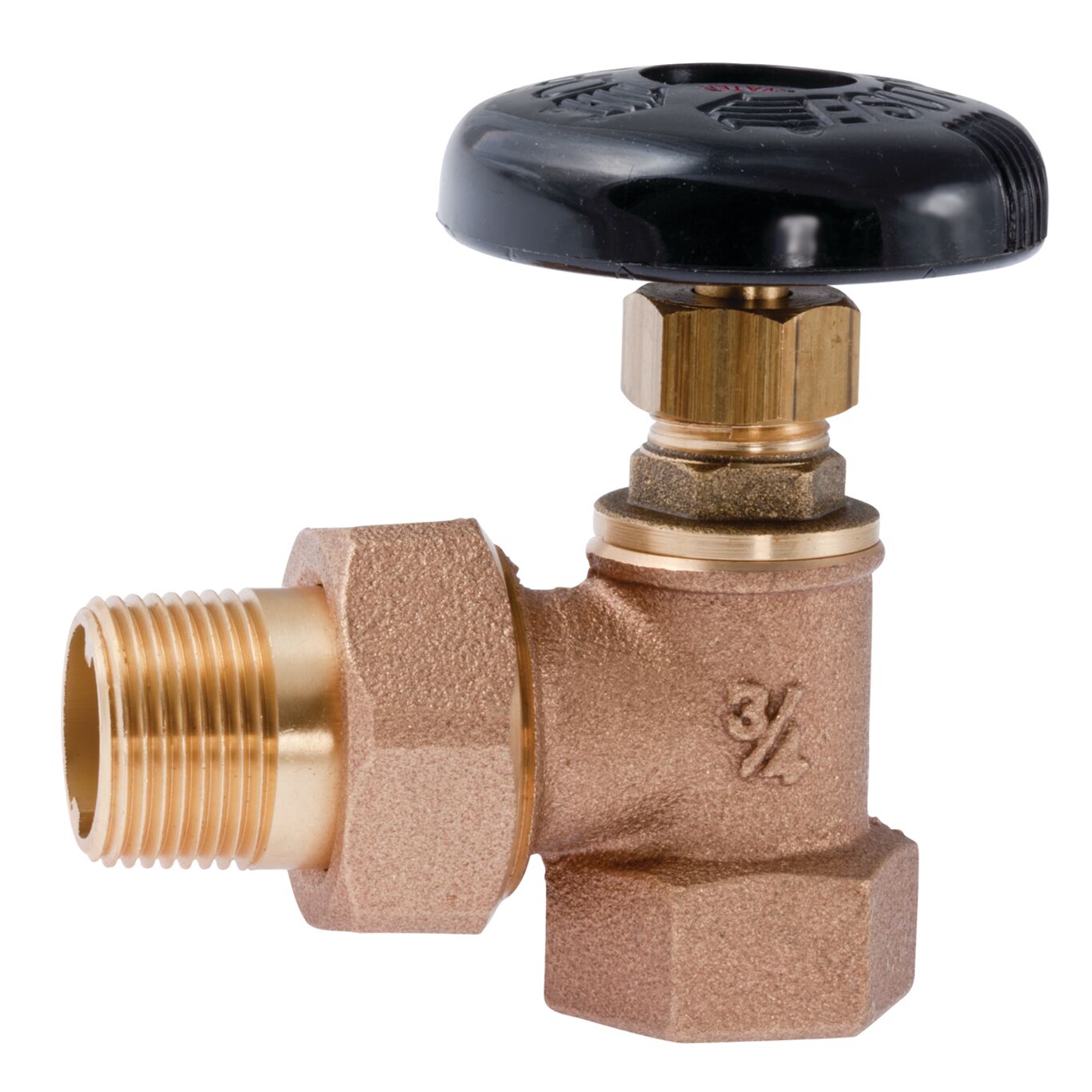

3/4 In Bronze Hot Water Angle Valve, Fip X Male Union

This 3/4 inch hot water angle valve is used in heating applications for gravity hot water heating systems only. It feature a bronze disc, rising stem and phenolic handwheel. The maximum working pressure is 60 psi (4.2 bar) (non shock) for hot water. It has FIP by male union connection.

Product Features

  • Rising stem
  • FIP x male union connection
  • Bronze body
  • Screwed in bonnet
Body Material Bronze
Body Pattern Angle
Brand Name Watts
Control Type Handwheel
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Male Threaded or Socket
Inlet Thread Type NPT
Lead Free NO
Maximum Pressure-PSI 60
Model Number HWA-TXTMU 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Union Joint
Outlet Thread Type NPT
Part Number 0067621
Series HWA
Stem Shaft Material Brass
Valve Style Does Not Apply To Product
