RA-1-SW

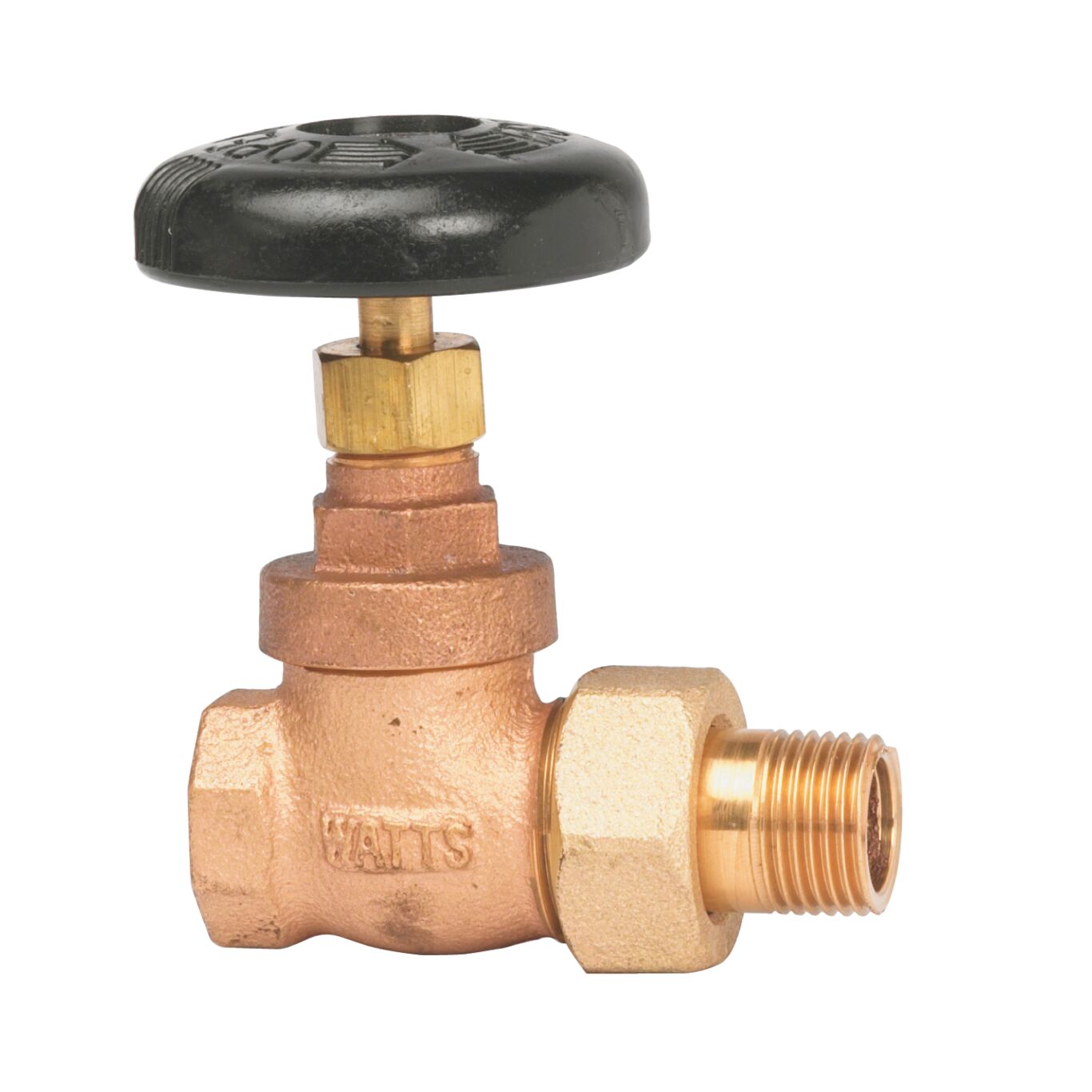

Bronze Steam Radiator Gate Valves
×
![]()
RA-1-SW
Bronze Steam Radiator Gate Valves
Features
- Used as shutoff valves in steam or hydronic heating systems
- Thread x male union connection
- Bronze body and straight pattern
- Sizes 1/2 in. to 1 1/2 in. (15 to 40mm)
Jump to Section
Series RA-1-SW Steam Radiator Gate Valves are used as shutoff valves in steam or hydronic heating systems. They feature a bronze body and straight pattern with thread x male union connections. Maximum Working Pressure: 60psi (4.2 bar) non-shock water, 15psi (1 bar) non-shock saturated steam.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific RA-1-SW
