RA-2-AP 3/4

Part of the RA-2-AP Series

Ordering Code: 0067455

UPC: 098268401554

Lead Free: NO

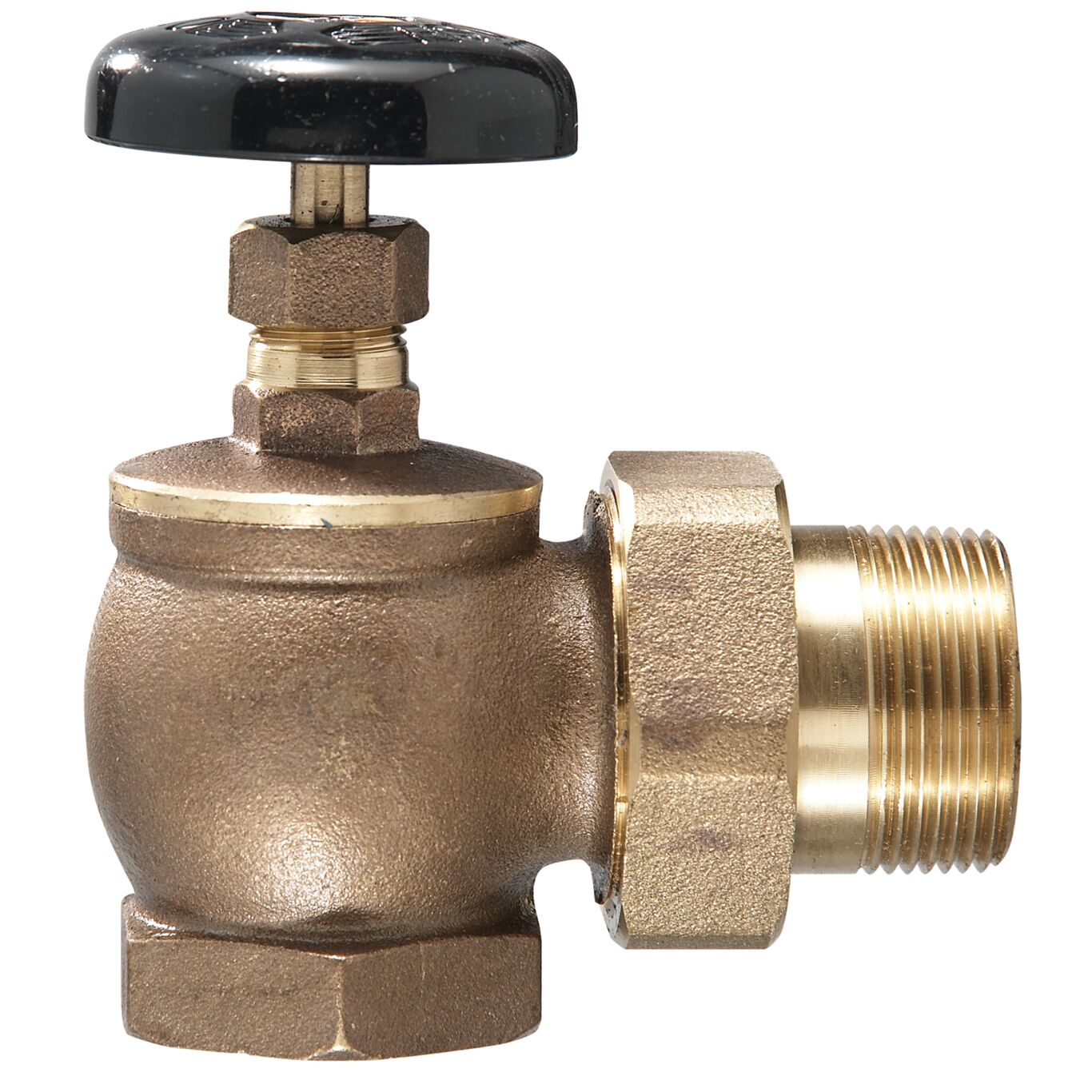

3/4 In Brasssteam Radiator Angle Valve

This 3/4 inch steam radiator valve is used as a shutoff valve in steam or hydronic heating systems. It feature a brass body and angle pattern with FIP x male union connections.

Product Features

  • FIP x male union connections
  • Rising stem
  • Brass body
  • Angle pattern
Body Material Brass
Body Pattern Angle
Brand Name Watts
EANUCCCode 098268401554
Hydronic Item Type Radiator Supply Valve
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Thread Type IPS
Lead Free NO
Maximum Pressure-PSI 60
Maximum Steam Pressure-PSI 15
Maximum Temperature-Fahrenheit 250
Maximum Water Pressure-PSI 60
Outlet Connection Size 3/4 IN
Outlet Connection Type Union Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0067455
Series RA-2-AP
