UL
Bronze Union Elbows
UL
Bronze Union Elbows
Features
- Used in steam and hot water systems
- Bronze body with FIP female threaded x male threaded union or solder x male threaded union connections
- Pressure tested
- Sizes 1/2 in. to 1 1/4 in. (15 to 32mm)

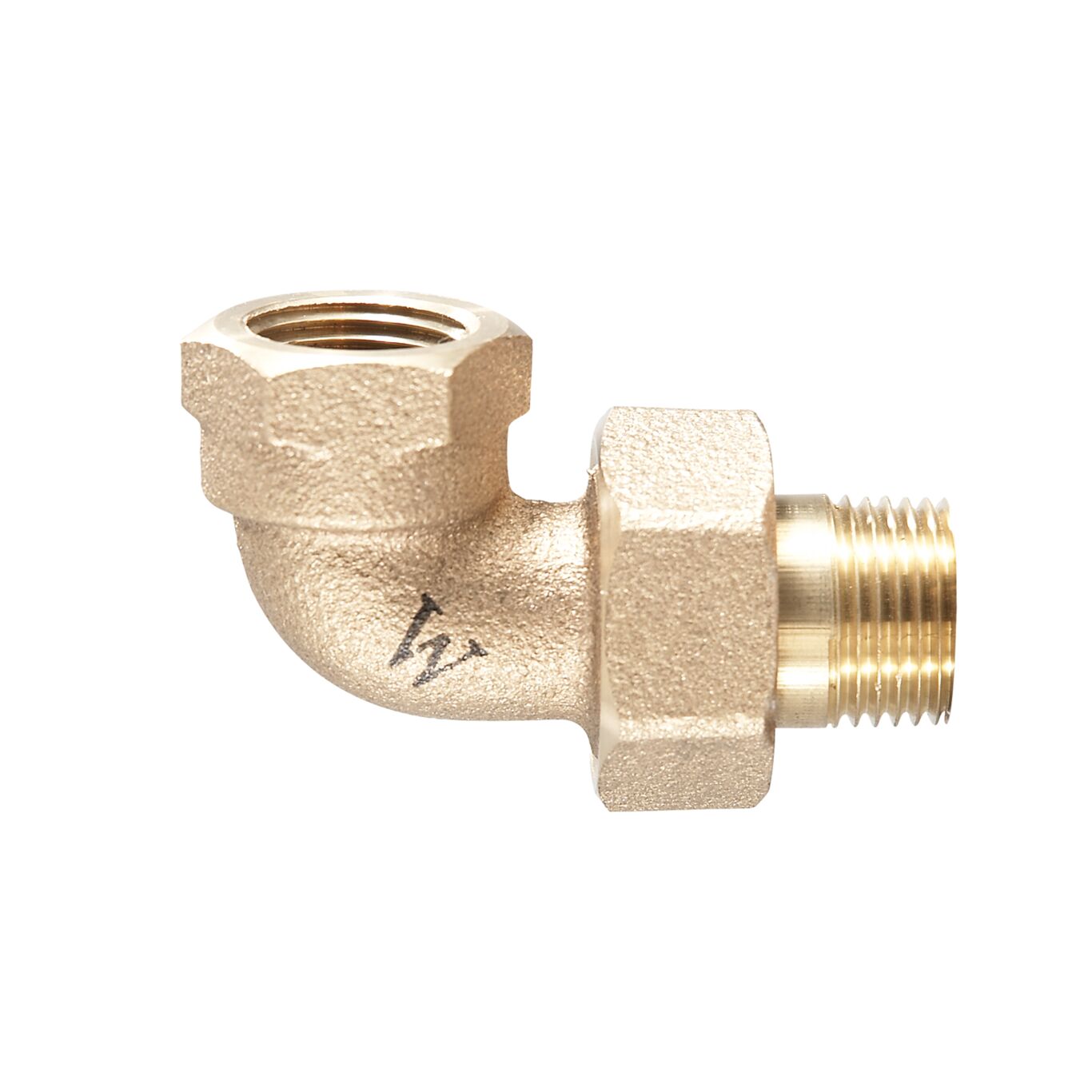

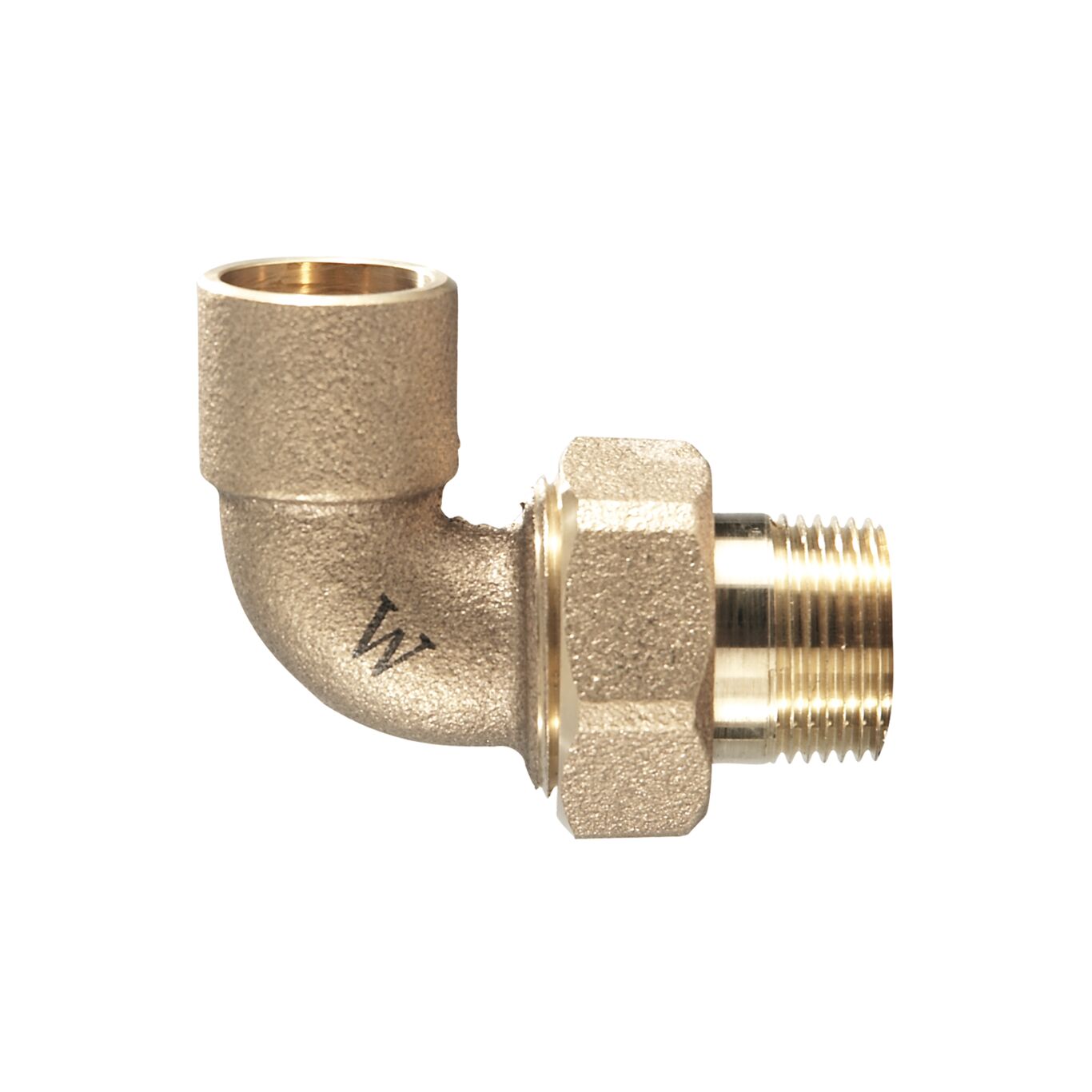

Series UL Bronze Union Elbows are used in steam and hot water systems. They feature a bronze body with FIP female threaded x male threaded union or solder x male threaded union connections, bronze nut, and brass tailpiece. Model UL-1 is available in sizes 1/2 to 1 1/4 in. (15 to 32mm) with FIP x male union connections. Model UL-2 is available in sizes 1/2 and 3/4 in. (15 and 20mm) with solder x male union connections. Maximum Working Pressure: 60psi (4.2 bar) (non-shock) for hot water, 15psi (55kPa) (non-shock) for saturated steam.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
