RPVM1
Purge, Drain and Balancing Valves
RPVM1
Purge, Drain and Balancing Valves
Features
- Economical solution for purging, balancing, and draining of hydronic heating loops
- Also serves as a shutoff valve and a drain valve for each zone or loop
- Positive shut off dual valve design ensures a tight seal
- Available in threaded outlet x solder inlet and solder x solder

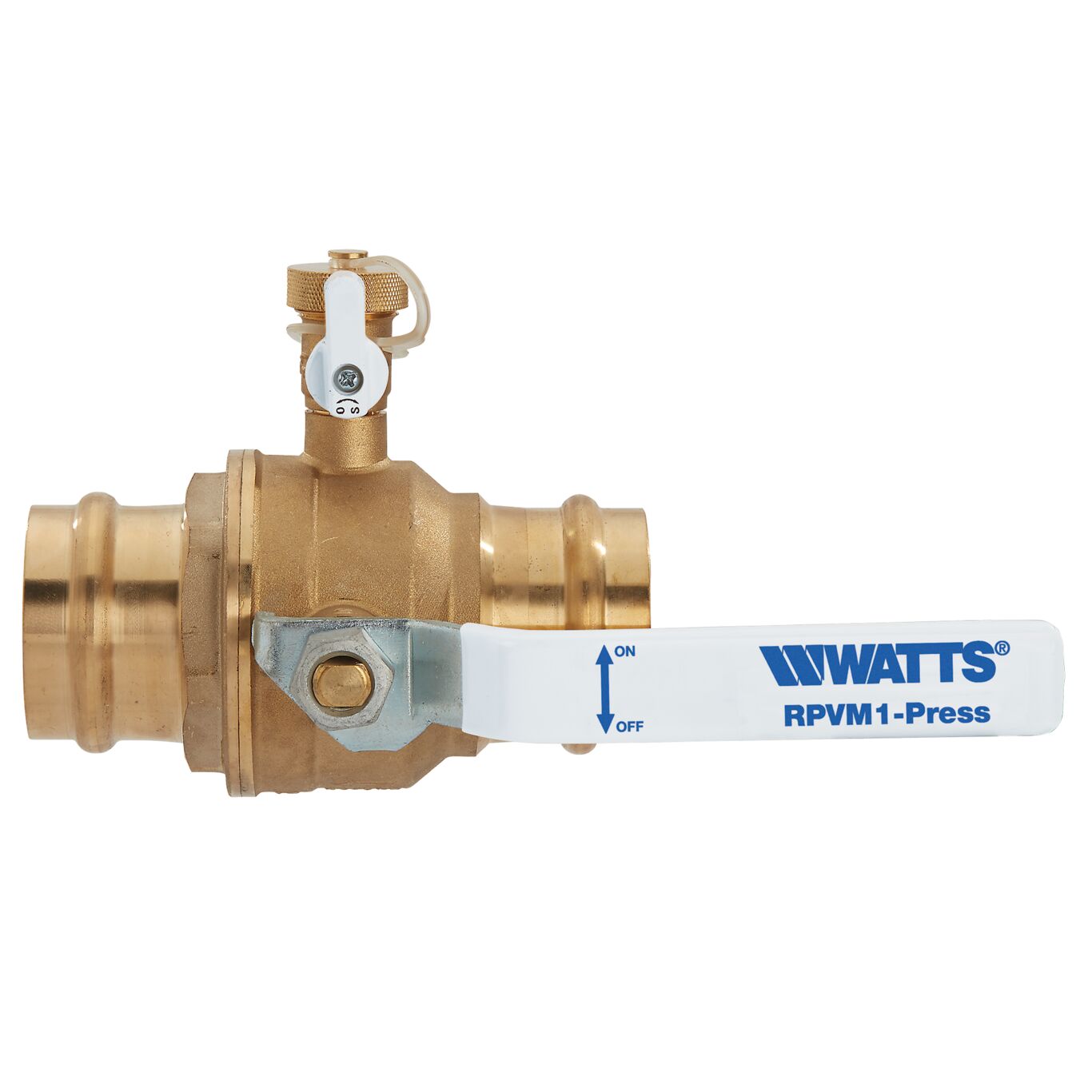

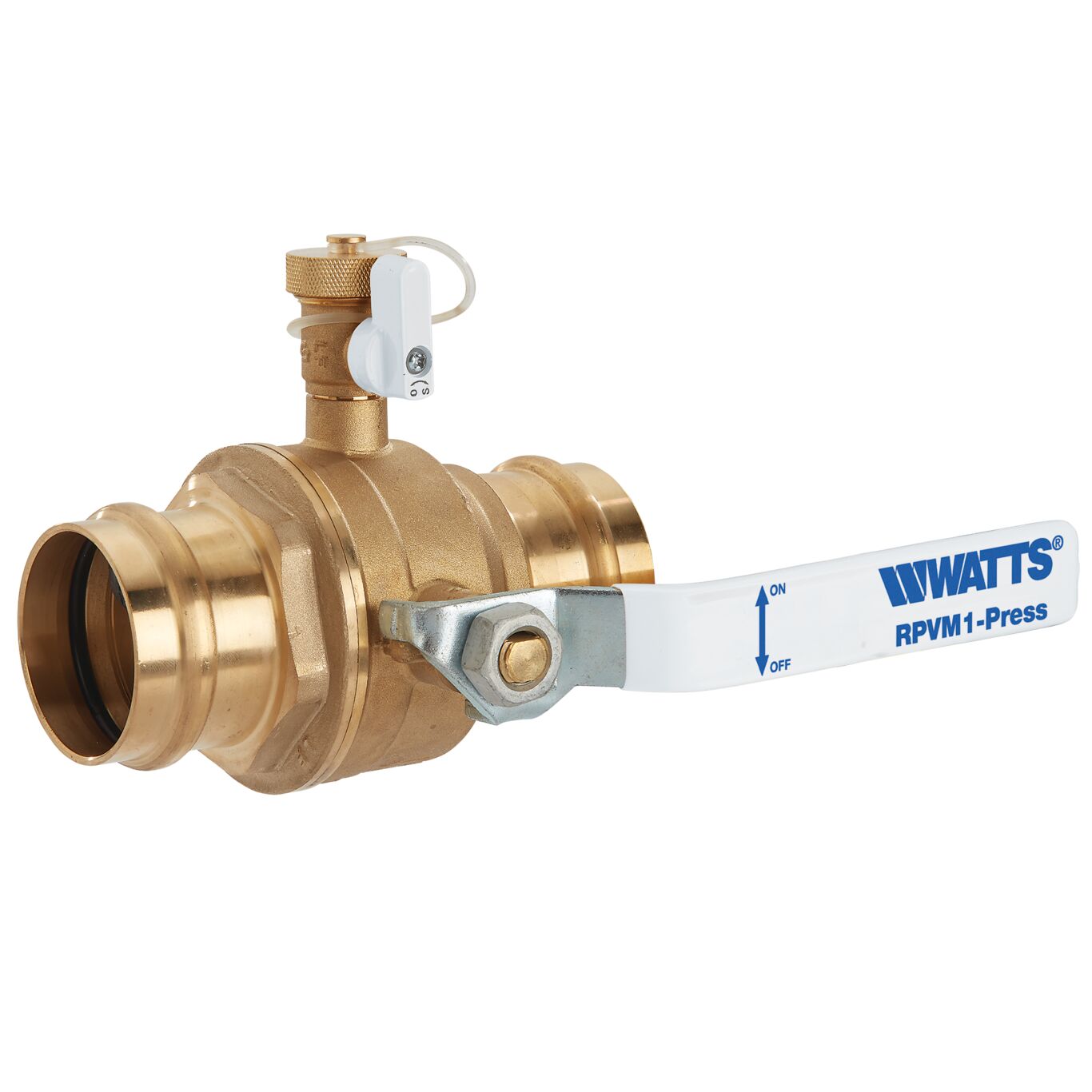

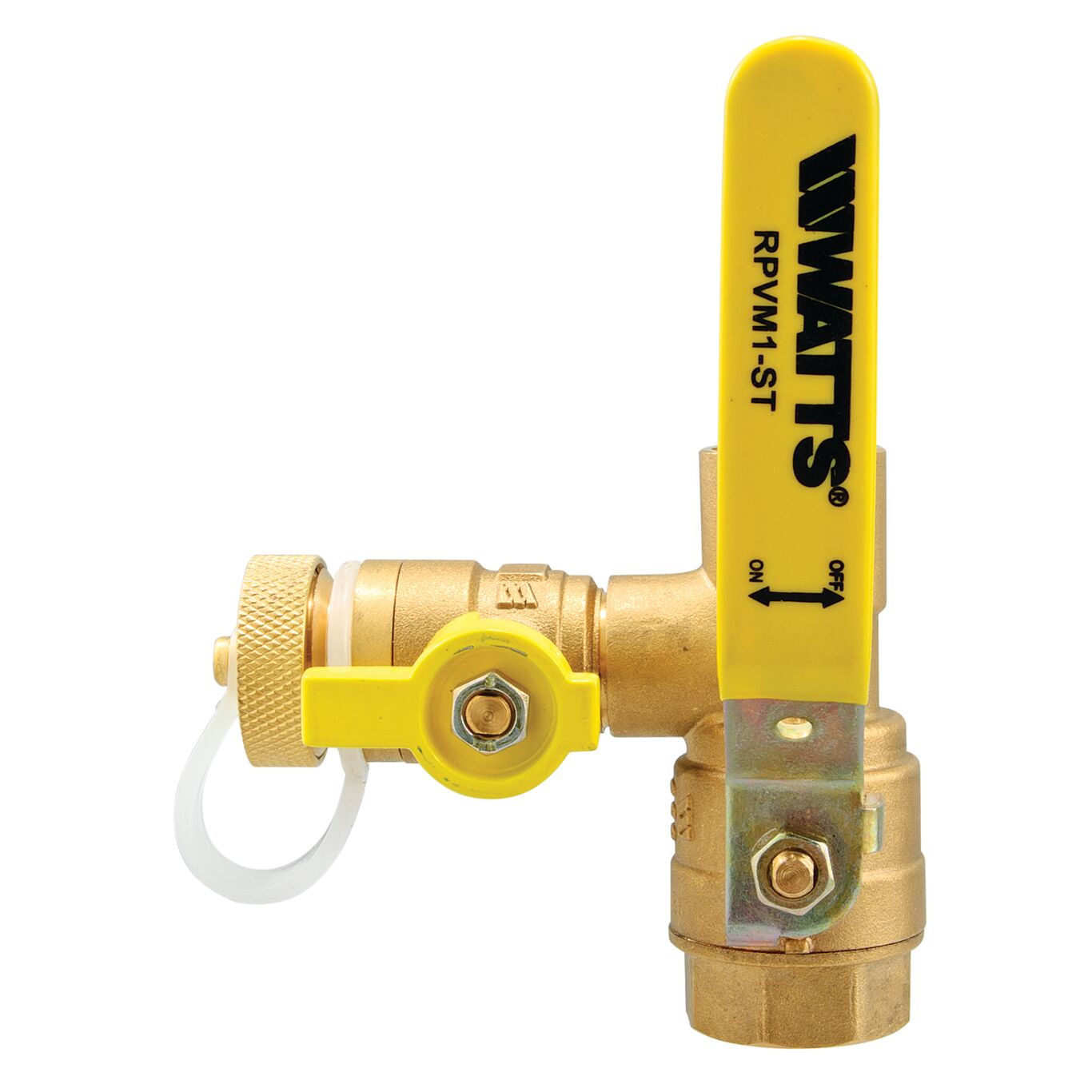

Series RPVM1 Residential Purge and Balancing Valves are used in heating applications on boiler return piping to facilitate removal of air from heating zones on initial fill and to control water flow through circulation loop. It also serves as a shutoff valve and a drain valve for each zone or loop. Available in threaded outlet x solder inlet and solder x solder in 3/4, 1 and 1-1/4 inch sizes. Also available in press x press connections in 1/2 to 2 inch sizes.
Series RPVM1 provides high-volume purging, accurate balancing, a positive drip-tight shutoff, and is ideal for use in hydronic heating loops. Maximum Working Pressure: 50psi (344.8kPa).
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific RPVM1
