Part of the G Series

Ordering Code: 0036096

UPC: 098268395822

Lead Free: Not In Scope

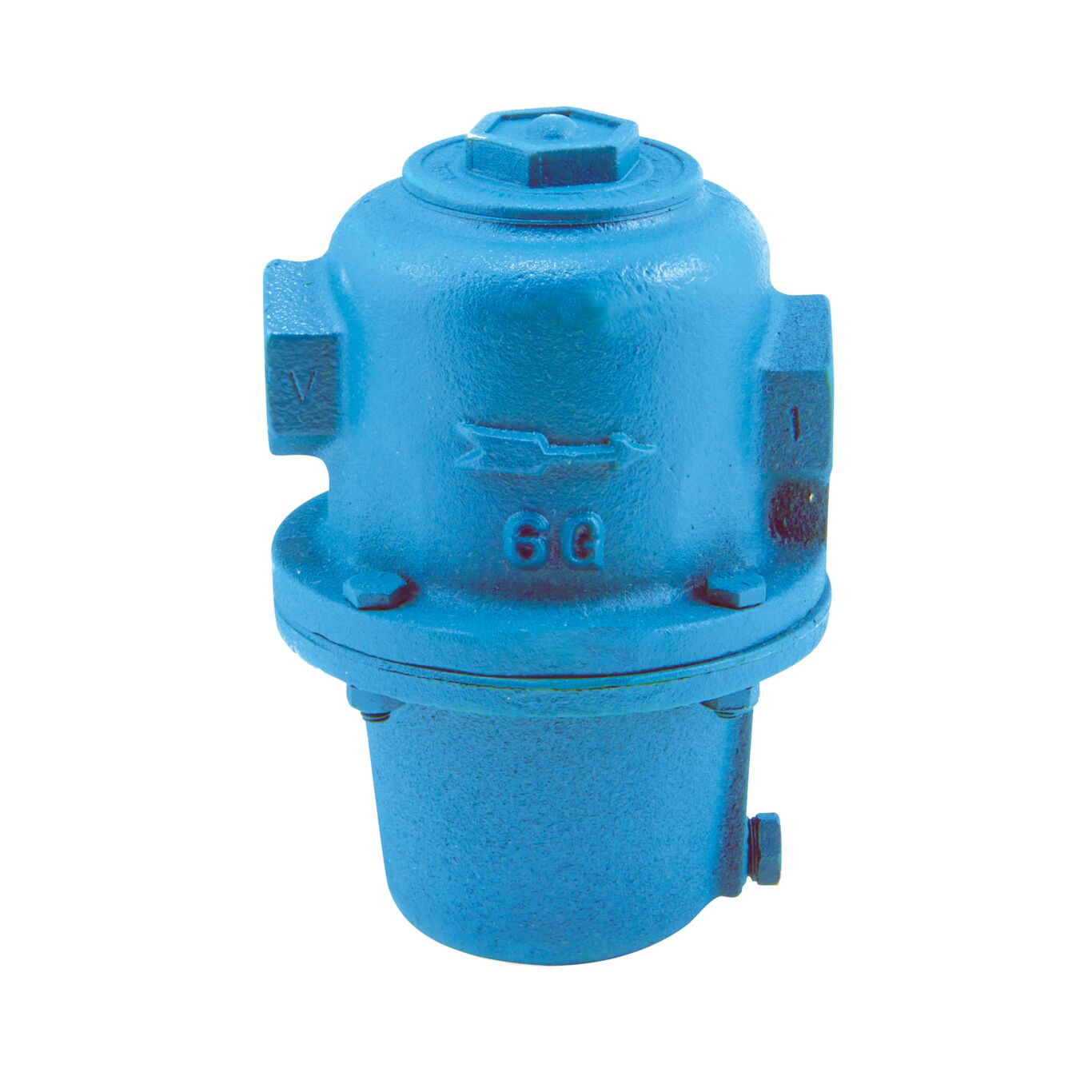

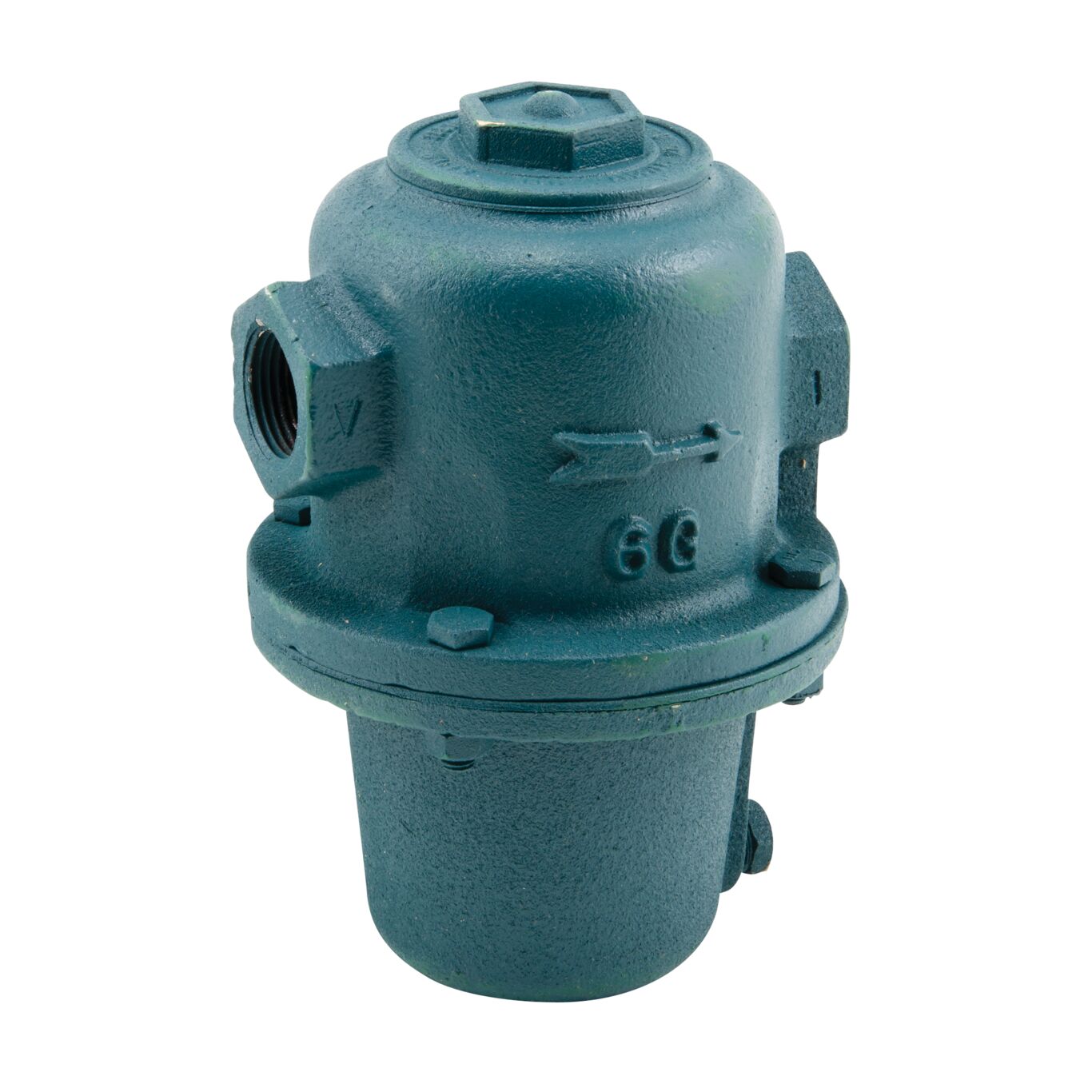

3/4 In Float And Thermostatic Steam Trap, Max 15 psi, Max Mbh 217

This 3/4 inch float and thermostatic steam trap is designed for use on modulating process equipment and as main distribution line drip traps. It features a straight through design for fast and simple installation. The stainless steel valve head and seat provide long service life.

Product Features

  • Female x female
  • Straight-through design
  • Copper sweat tailpiece
  • Iron body
Body Material Cast Iron
Body Pattern Straight
Brand Name Watts
EANUCCCode 098268395822
Hydronic Item Type Steam Trap
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free Not In Scope
Maximum Pressure-PSI 50
Maximum Steam Pressure-PSI 15
Maximum Working Pressure-PSI 15
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0036096
Pipe Plug No
Pressure Adjustment Range 25 IN HG to 15 PSI
Series G
