STMTMSTREP1GT/MON35A
×
![]()
Discontinued
Part of the G Series
Ordering Code: 0036068
UPC: 098268395600
Lead Free: Not In Scope

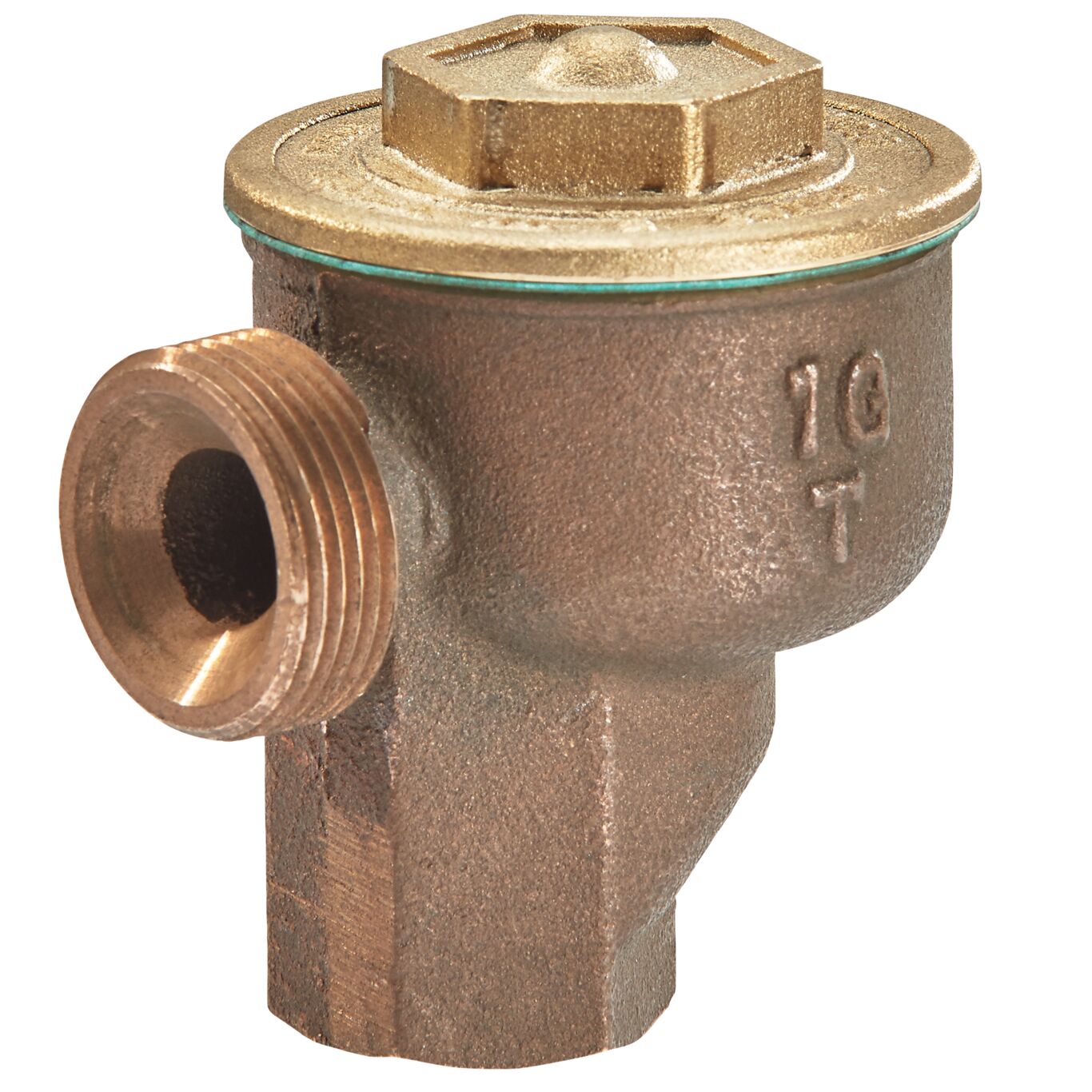

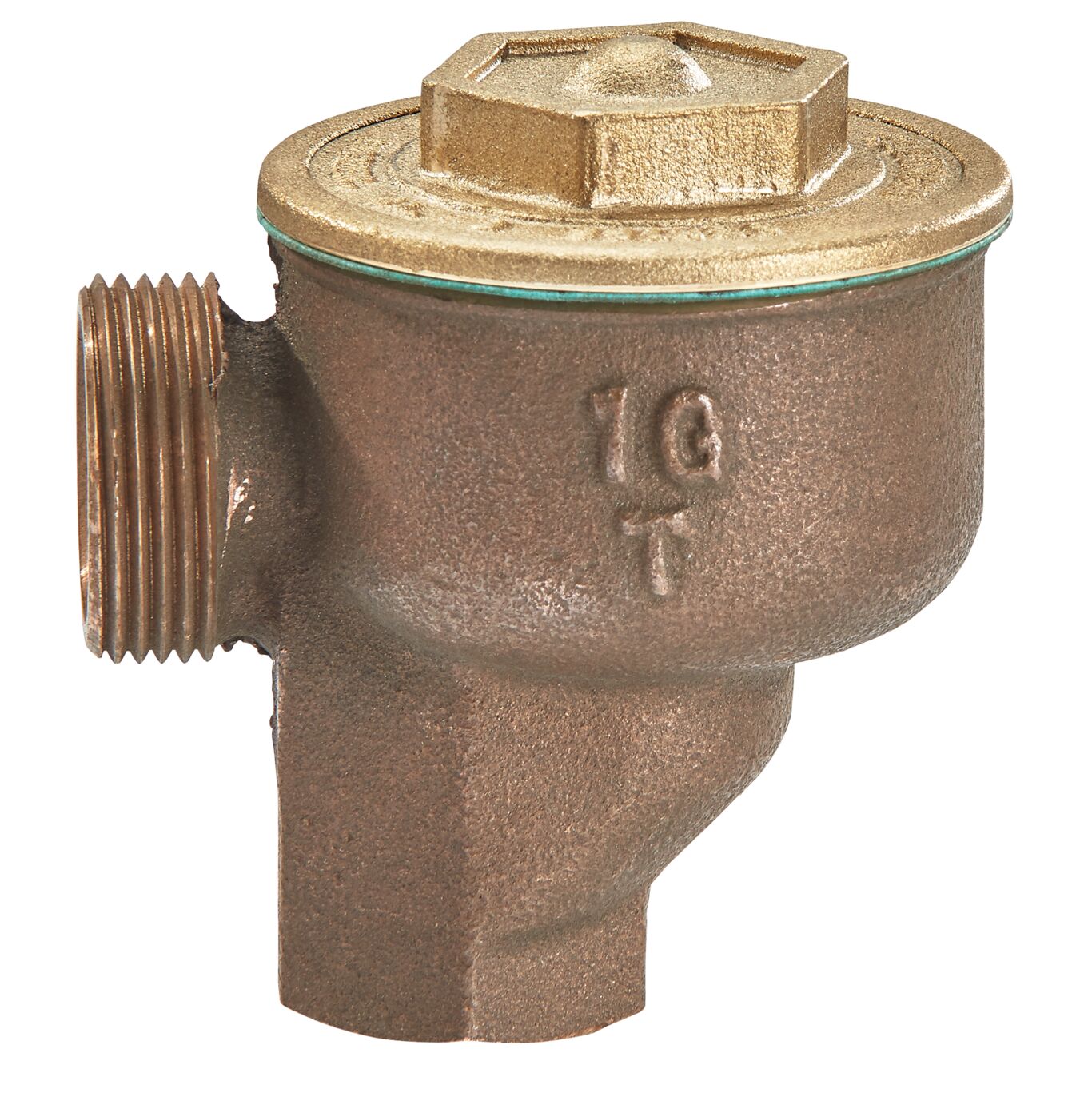

Replacement Thermostatic Angle Radiator Steam Trap
This radiator replacement steam trap is an angle out board only. It is a replacement used to repair old or obsolete radiator steam traps without the cost of replacing the steam trap body or performing expensive repiping.
Features
- Rugged brass construction
- Union inlet
- Female x female
- Copper sweat tailpiece
| Specifications | |
|---|---|
| Body Material | Brass |
| Body Pattern | Angle |
| Brand | Watts |
| EAN | 098268395600 |
| Hydronic Item Type | Steam Trap |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Size-Metric | 13 MM |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | Not In Scope |
| Maximum Operating Temperature-Fahrenheit | 267 |
| Maximum Pressure-PSI | 25 |
| Maximum Steam Pressure-PSI | 25 |
| Maximum Temperature-Fahrenheit | 267 |
| Maximum Working Pressure-PSI | 25 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0036068 |
| Pipe Plug | No |
| Series | G |
