STMTMSTTRP-1GSW

Part of the G Series

Ordering Code: 0036041

UPC: 098268395426

Lead Free: Not In Scope

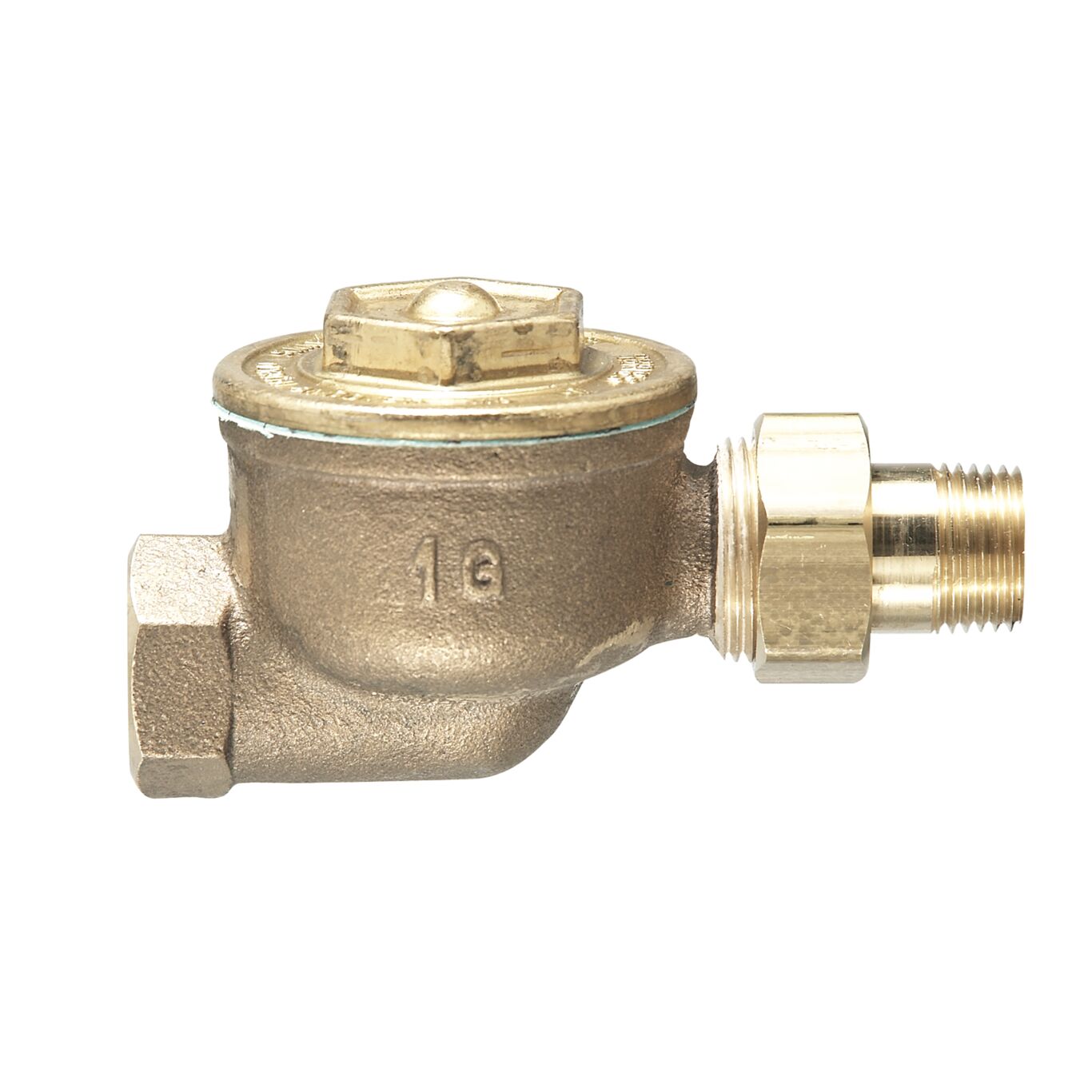

1/2 In Thermostatic Radiator Steam Trap, Straight

This 1/2 IN straight thermostatic radiator steam trap is designed to remove condensate, air and non-condensable gases from heating systems, while still sensitive enough to close tightly in the presence of steam. It is recommended for use on radiators and convectors.

Product Features

  • Copper sweat tailpiece
  • Rugged brass construction
  • Straightway pattern
  • Female x female connections
Specifications
Air Venting No Vent
Body Material Brass
Body Pattern Straightaway
Bottom Tapping No
Bottom Tapping Size Does Not Apply To Product
BrandName Watts
Contact Rating Does Not Apply To Product
Fastfill Feature No
Fill Tapping Size Does Not Apply To Product
Float Chamber Connection Size Does Not Apply To Product
Flow Rate Does Not Apply To Product
Hydronic Item Type Steam Trap
Inlet Connection Size 1/2 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
LeadFree Not In Scope
Maximum Operating Temperature-Fahrenheit 267
Maximum Pressure-PSI 25
Maximum Steam Pressure-PSI 25
Maximum Temperature-Fahrenheit 267
Maximum Working Pressure-PSI 25
Minimum Pressure-PSI 25.00
Minimum Working Pressure-PSI 25.00
ModelNumber STMTMSTTRP-1GSW
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0036041
Pipe Plug No
Pressure Adjustment Range 25" to 25 PSI
Pressure Steam Discharge Capacity Does Not Apply To Product
Purge And Drain Diameter Does Not Apply To Product
Purge And Drain Outlet Size Does Not Apply To Product
Series G
Side Tapping No
Side Tapping Size Does Not Apply To Product
Strainer No
Strainer Material Does Not Apply To Product
Switch Type Does Not Apply To Product
Temperature Adjustment Range Does Not Apply To Product
Temperature Range Does Not Apply To Product
Top 1 Tapping Size Does Not Apply To Product
Top 2 Tapping Size Does Not Apply To Product
Top Tapping No
Vacuum Breaker No
Venting Capacity Does Not Apply To Product
