WFT-125 2 Watts

Part of the WFT Series

Ordering Code: 0037123

UPC: 098268502640

Lead Free: Not In Scope

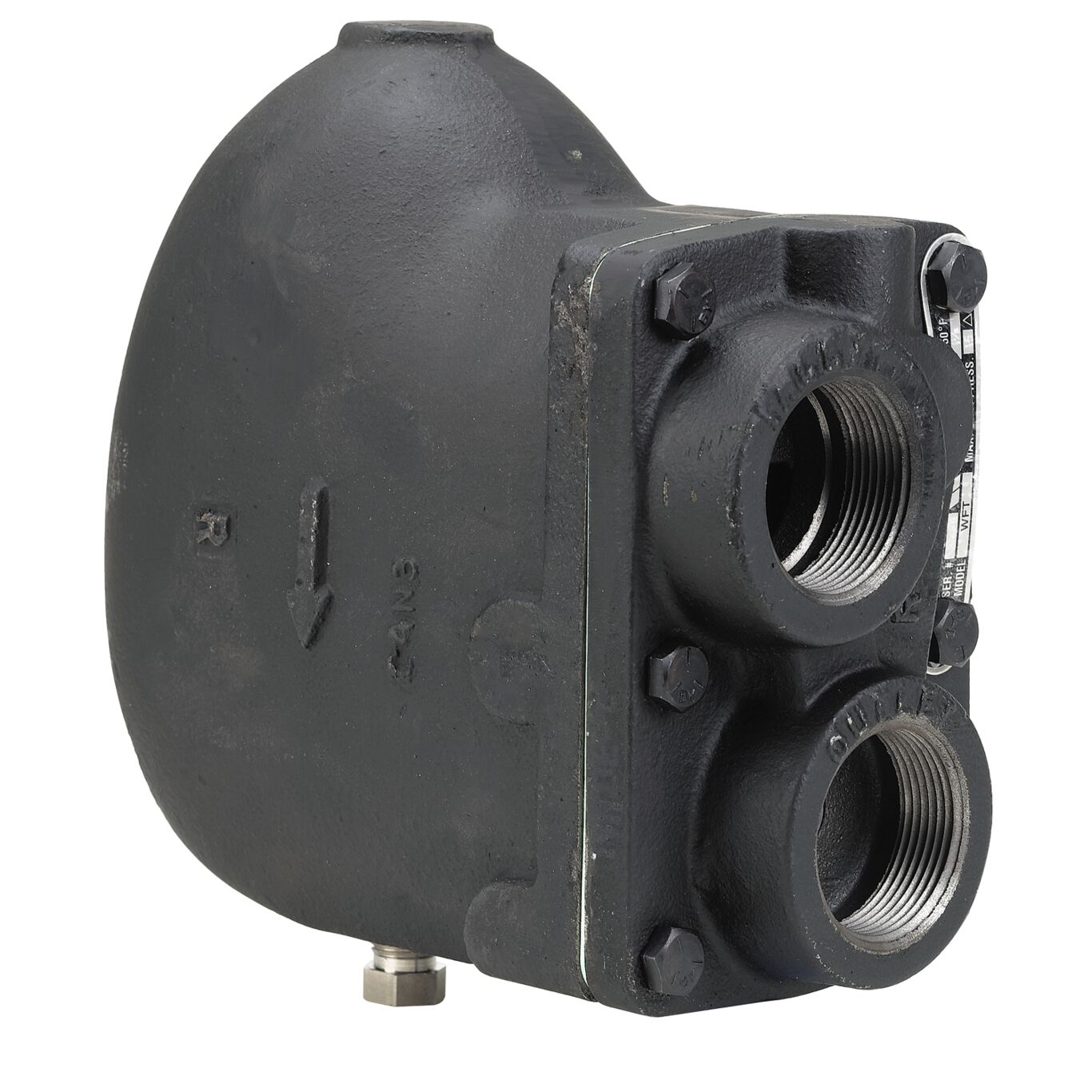

2 In Float And Thermostatic Steam Trap, .332 Orifice, 125 Psi

This 2 inch float and thermostatic steam trap with 0.332 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It features an iron body h-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping and it is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. Operating pressure is 125 PSI.

Product Features

  • Balanced pressure thermostatic element
  • Universal 4-port design
  • Water hammer resistant
  • Cast iron body and cover
Specifications
Air Venting No Vent
Body Material Cast Iron
Body Pattern C-Pattern
Bottom Tapping Yes
Bottom Tapping Size 1/2 IN
BrandName Watts
Contact Rating Does Not Apply To Product
Fastfill Feature No
Fill Tapping Size Does Not Apply To Product
Float Chamber Connection Size Does Not Apply To Product
Flow Rate Does Not Apply To Product
Hydronic Item Type Steam Trap
Inlet Connection Size 2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree Not In Scope
Maximum Operating Temperature-Fahrenheit 353
Maximum Pressure-PSI 125
Maximum Steam Pressure-PSI 125
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-PSI 125
ModelNumber WFT-125 2
Outlet Connection Size 2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0037123
Pipe Plug No
Pressure Steam Discharge Capacity Does Not Apply To Product
Purge And Drain Diameter Does Not Apply To Product
Purge And Drain Outlet Size Does Not Apply To Product
Series WFT
Side Tapping No
Side Tapping Size Does Not Apply To Product
Strainer No
Strainer Material Does Not Apply To Product
Switch Type Does Not Apply To Product
Temperature Adjustment Range Does Not Apply To Product
Temperature Range Does Not Apply To Product
Top 1 Tapping Size Does Not Apply To Product
Top 2 Tapping Size Does Not Apply To Product
Top Tapping No
Vacuum Breaker No
Venting Capacity Does Not Apply To Product
