WIB
Discontinued
Inverted Bucket Steam Traps
WIB
Discontinued
Inverted Bucket Steam Traps
Features
- For use in steam main and process applications to provide reliable condensate removal
- Ideal for steam process equipment including pressing machines, cookers, vats, etc.
- Water hammer resistant and drains condensate at saturation temperatures
- Rugged and long lasting design

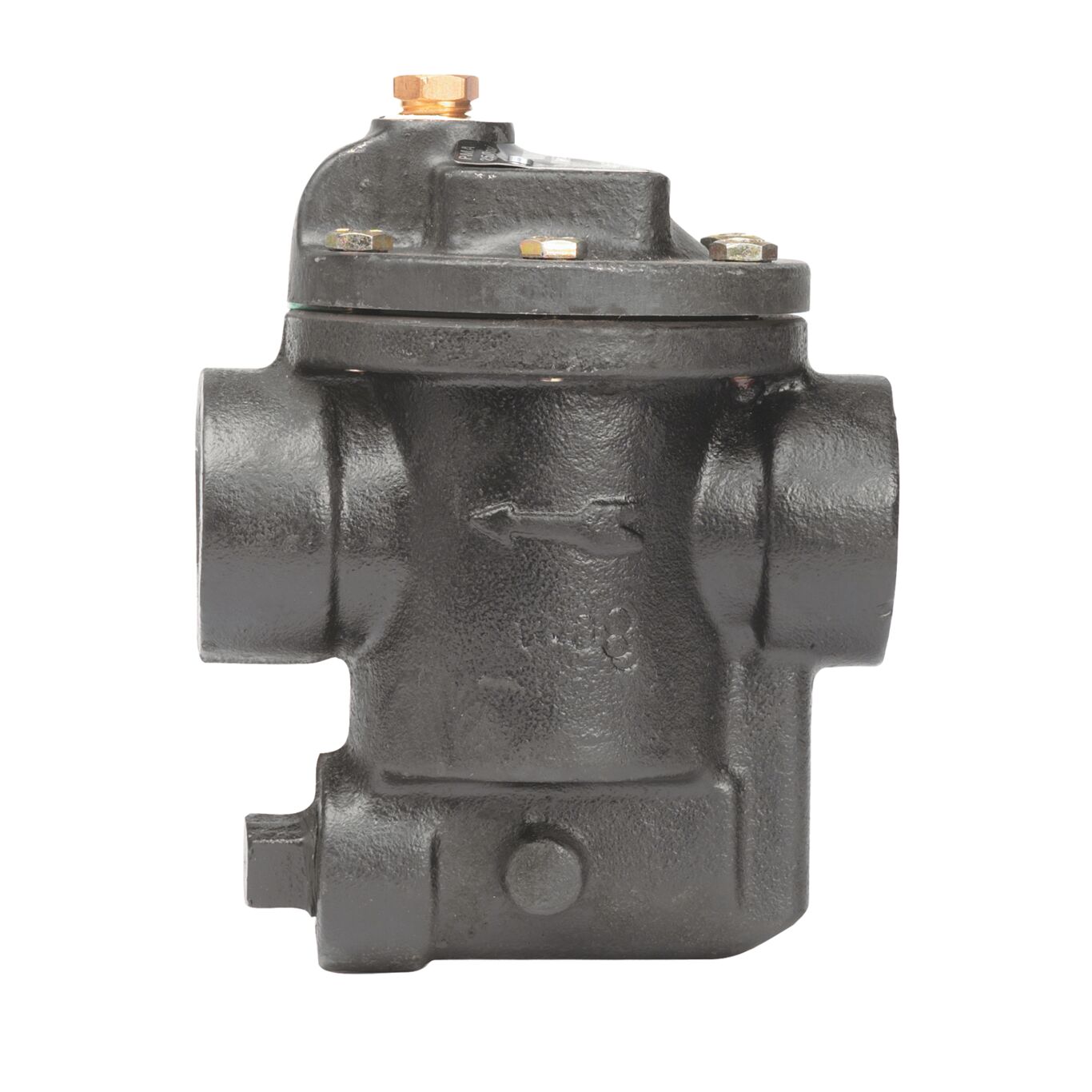

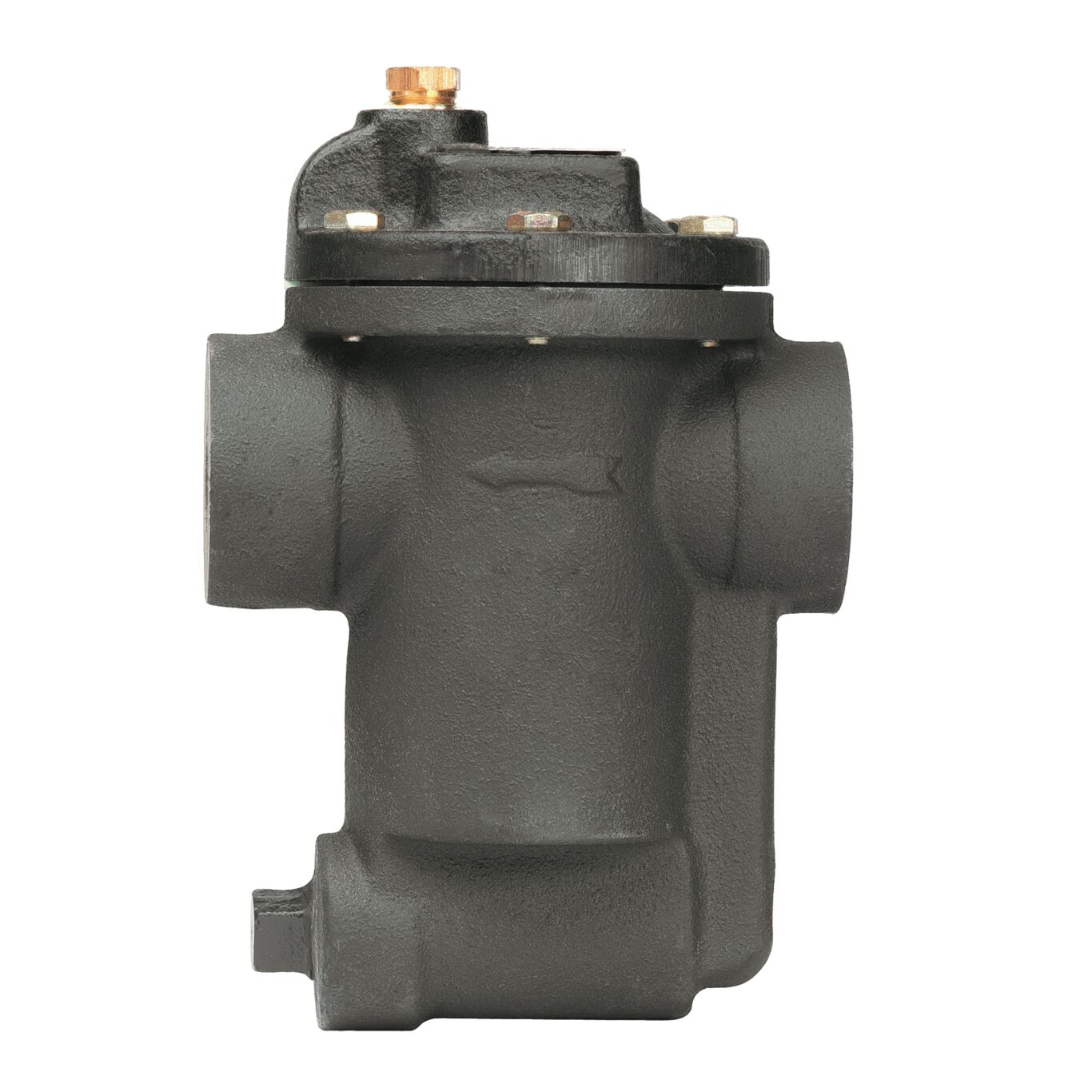

Series WIB Inverted Bucket Steam Traps are used in steam main and process applications to provide reliable condensate removal. They feature an iron body, stainless steel bucket and linkage, stainless steel valve and seat and non-asbestos cover gasket. Series WIB is water hammer resistant and drains condensate at saturation temperatures. Maximum Operating Pressure: 150psi (10 bar) for Model WIB 80; 250psi (17 bar) for Model WIB 81.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific WIB
