WTD

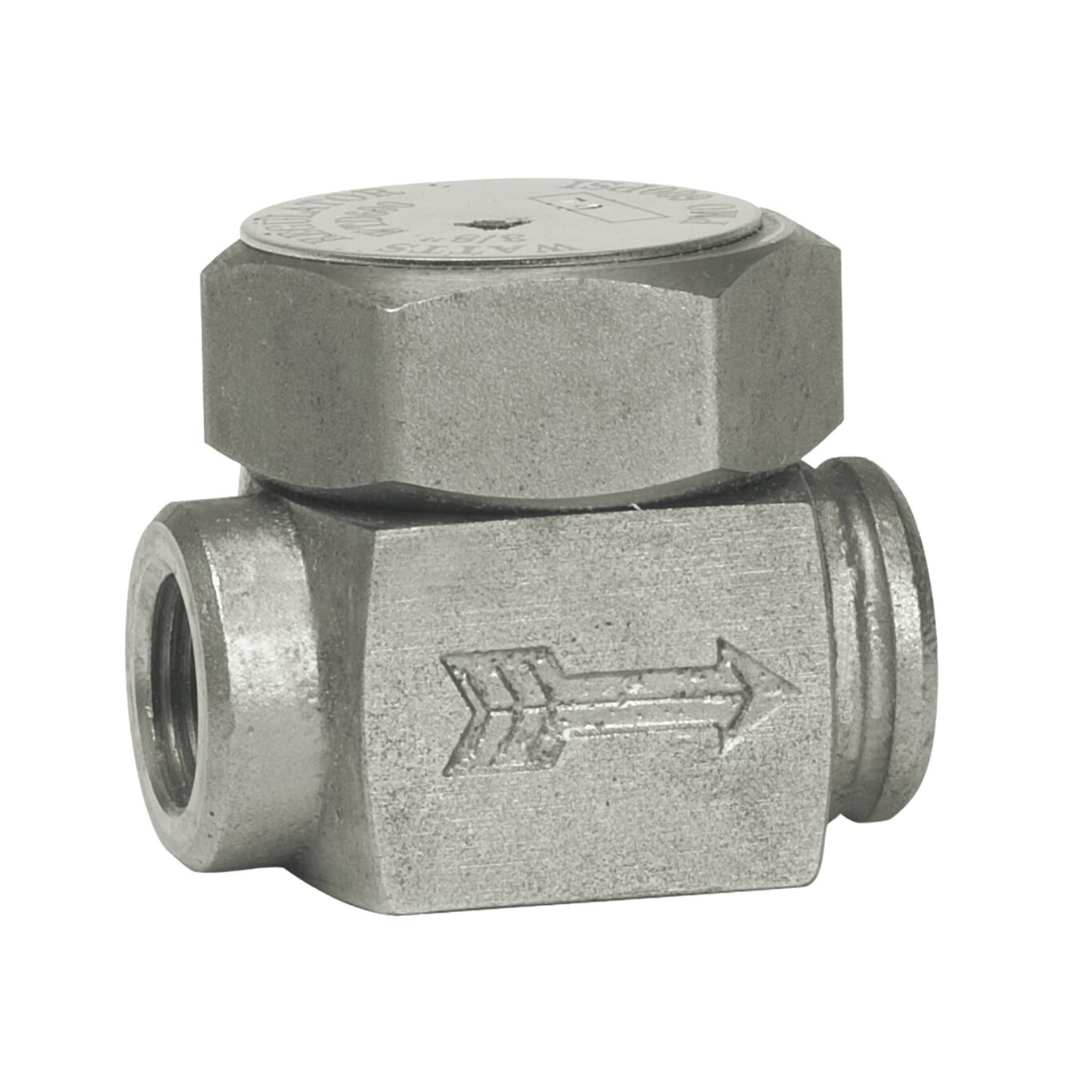

Thermodynamic Steam Traps

Series WTD Thermodynamic Steam Traps are used to efficiently drain steam mains, steam tracing lines, and small process equipment. It consists of a stainless steel body construction, stainless steel cap, and stainless steel disc. Series WTD provides a tight shutoff, is water hammer resistant, and drains condensate at saturation temperatures. It is ideal for use in steam main drainage, superheated steam applications, stream tracing lines, freeze protection for outside applications, and small process equipment. Maximum Operating Pressure: 600psi (42 bar).

Features

  • Provides a tight shutoff, is water hammer resistant, and drains condensate at saturation temperature
  • Economical, lightweight, and easy to install
  • Stainless steel with only one moving part for long life
  • Used to efficiently drain steam mains, steam tracing lines, and small process equipment

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific WTD
