LFL70A 3/4

Part of the LF70A Series

Ordering Code: 0559135

UPC: 098268451931

Lead Free: YES

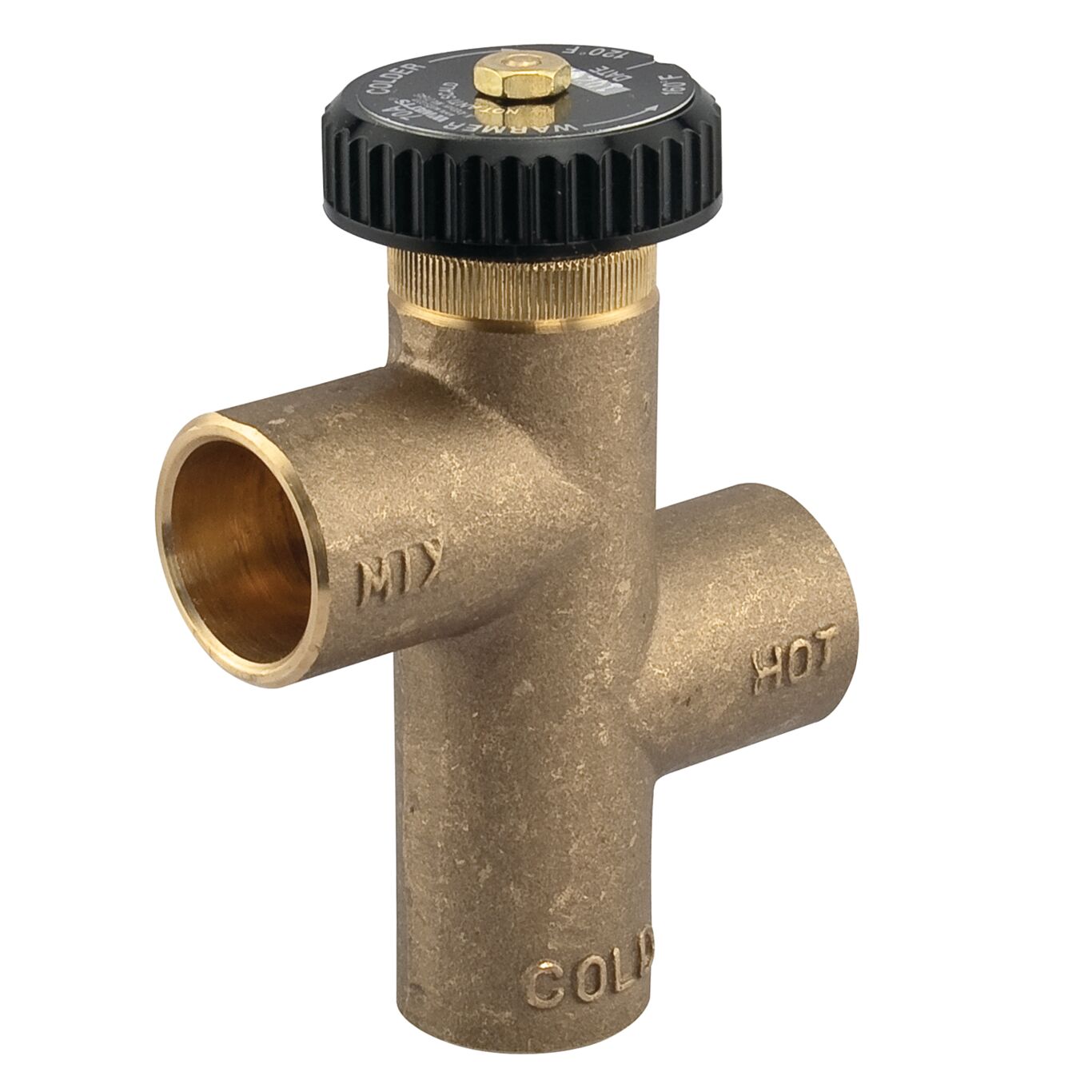

3/4 In Lead Free Low Temperature Hot Water Extender Mixing Valve

This 3/4 inch hot water extender mixing valve is designed for domestic water supply systems and recommended for lower tempered radiant heat applications installed at or near the boiler or hot water heater. It consists of a lead free brass body, solder connections, thermostat, stainless steel springs, and dial adjustment cap. The hydraulically operated thermostat opens a spring loaded check in the cold water inlet which allows cold and hot water to mix and can be replaced as a unit. The low temperature range is 100 to 130 degrees F (38 to 54 degrees C).

Product Features

  • Solder connections
  • Thermostat assembly is easy to maintain, remove and replace
  • Dial adjustment cap
  • Lead free brass body construction
Specifications
Body Finish Rough Bronze
Body Material Lead Free Brass
BrandName Watts
Capacity 5.5 GPM at 10 PSI
Cold Inlet Temperature Range 40 to 85 degree F
Cold Water Bypass No
Cold Water Inlet Connection Size 3/4 IN
Cold Water Inlet Connection Type Socket
Cold Water Inlet Thread Type Does Not Apply To Product
Dial Thermometer No
Field Adjustable Range 120 to 160 degree F
Flow Rate 5.5 GPM at 10 PSI
Hot Inlet Temperature Range 100 to 130 degree F
Hot Water Inlet Connection Size 3/4 IN
Hot Water Inlet Connection Type Socket
Hot Water Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Flow Rate 9 GPM at 45 PSI
Maximum Pressure Differential 25 Percent
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 150
Minimum Differential Temperature-Fahrenheit 5
Minimum Flow Rate 0.5 GPM
Minimum Static Pressure-PSI 30
ModelNumber LFL70A 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Socket
Outlet Temperature Accuracy Does Not Apply To Product
Outlet Thread Type Does Not Apply To Product
Part Number 0559135
Pressure Drop 10 PSI
Series LF70A
Temperature Adjustment Range 120 to 160 degree F
Vacuum Breaker No
