LF1170M2-CEF 3/4

Part of the LF1170 Series

Ordering Code: 6551705

UPC: 098268339161

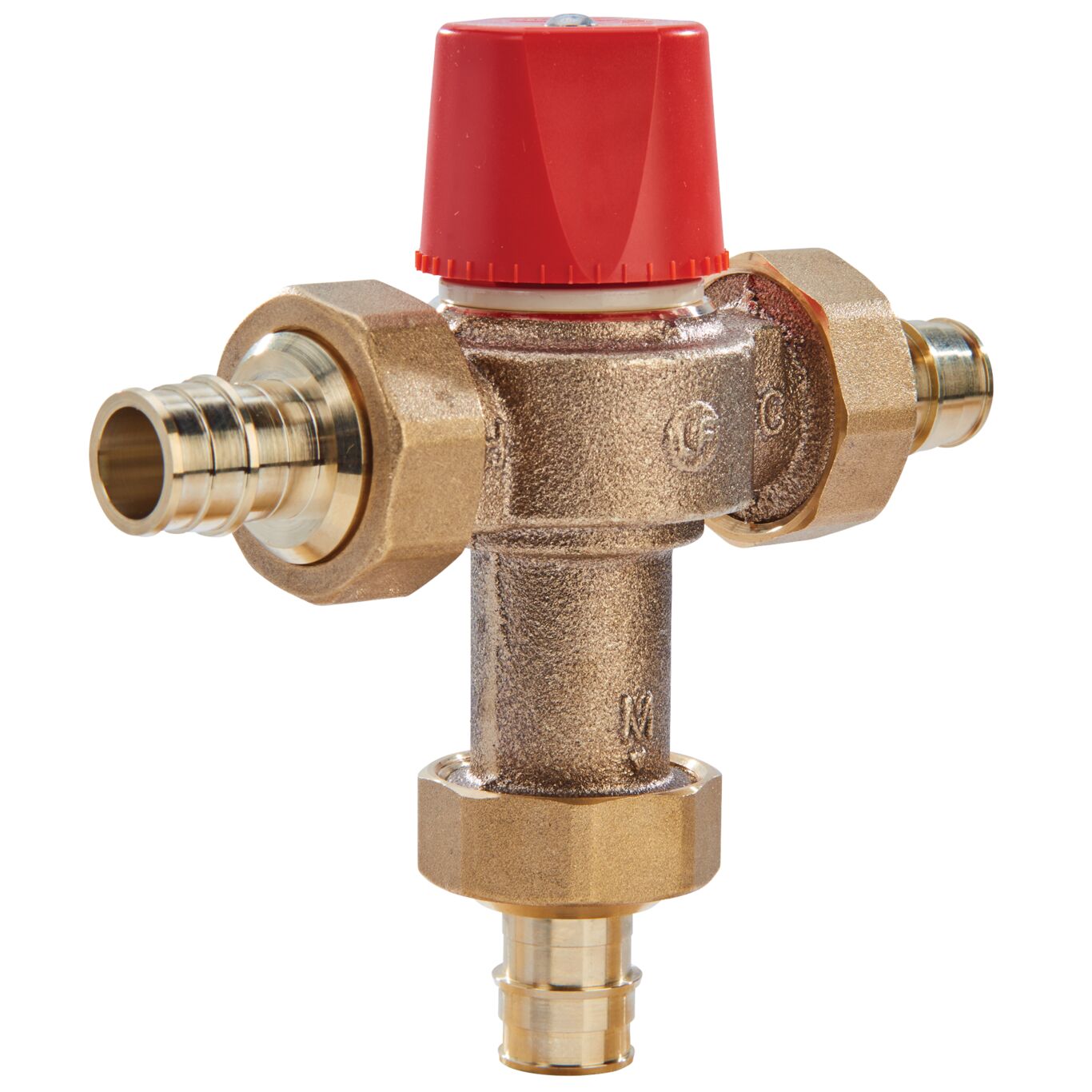

3/4 IN Lead Free Hot Water Temperature Control Valve, Cold Expansion Fitting CEF/PEX F1960 End Connections, Adjustable Out 90-160 F

  • Lead free brass construction
  • Thermal actuation technology for precise temperature control
  • Integral filter washers and check valves
  • ASSE 1017 certified, IAMPO cUPC certified, approved to CSA B125.3
Specifications
Body Finish Rough Bronze
Capacity 23 GPM at 45PSI
Cold Inlet Temperature Range 40 to 85 degree F
Cold Water Bypass No
Cold Water Inlet Connection Size 3/4 IN
Cold Water Inlet Connection Type Union Pex Expansion
Cold Water Inlet Thread Type Does Not Apply To Product
Flow Rate 0.5 to 23 GPM
Hot Inlet Temperature Range 120 to 200 degree F
Hot Water Inlet Connection Size 3/4 IN
Hot Water Inlet Connection Type Union Pex Expansion
Hot Water Inlet Thread Type Does Not Apply To Product
Maximum Working Pressure-PSI 150
Minimum Differential Temperature-Fahrenheit 5
Minimum Static Pressure-PSI 30
Outlet Connection Size 3/4 IN
Outlet Connection Size-Metric Does Not Apply To Product
Outlet Connection Type Union Pex Expansion
Outlet Temperature Accuracy +/- 3 degree F
Outlet Thread Type Does Not Apply To Product
Temperature Adjustment Range 90 to 160 degree F
WiFiEnabled No
