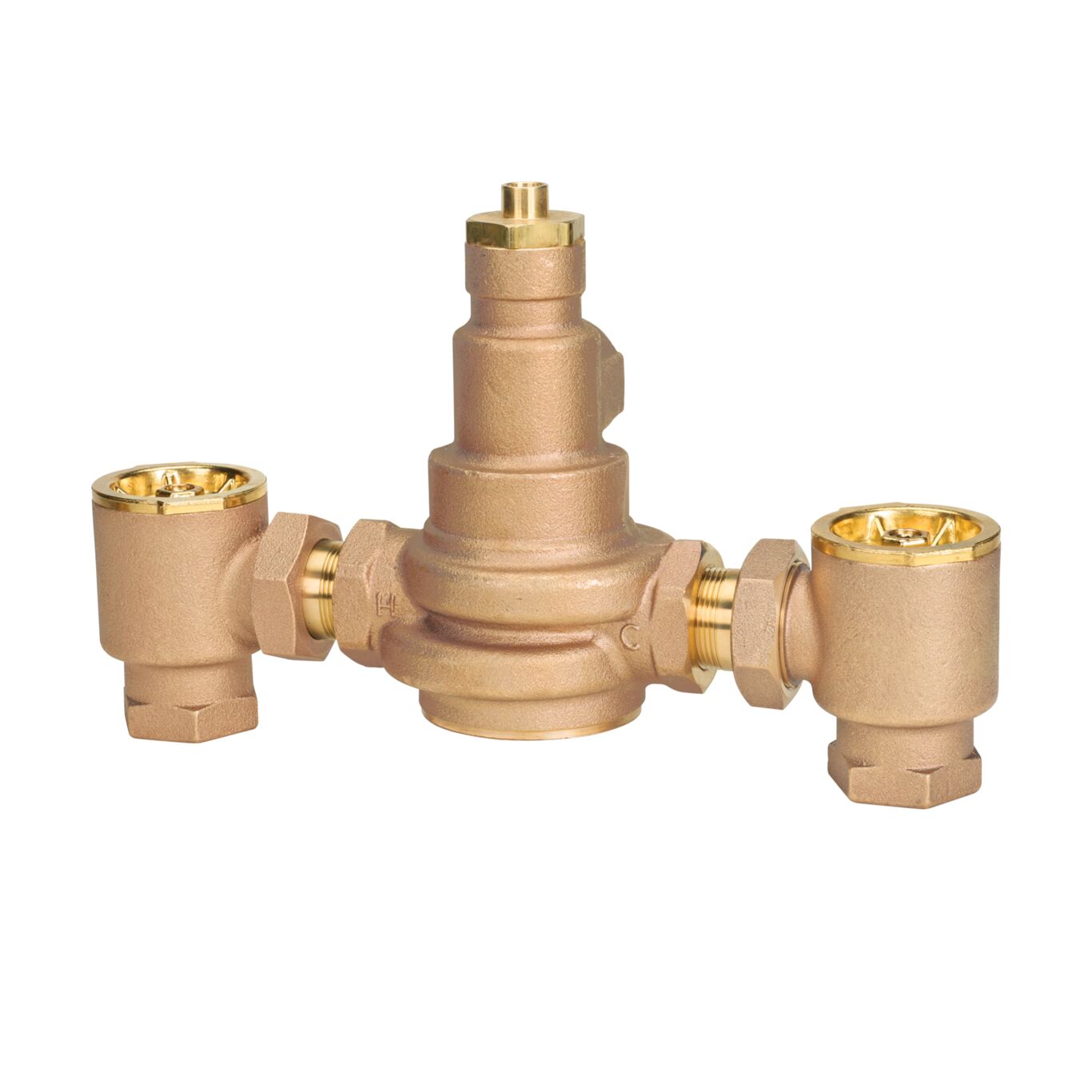

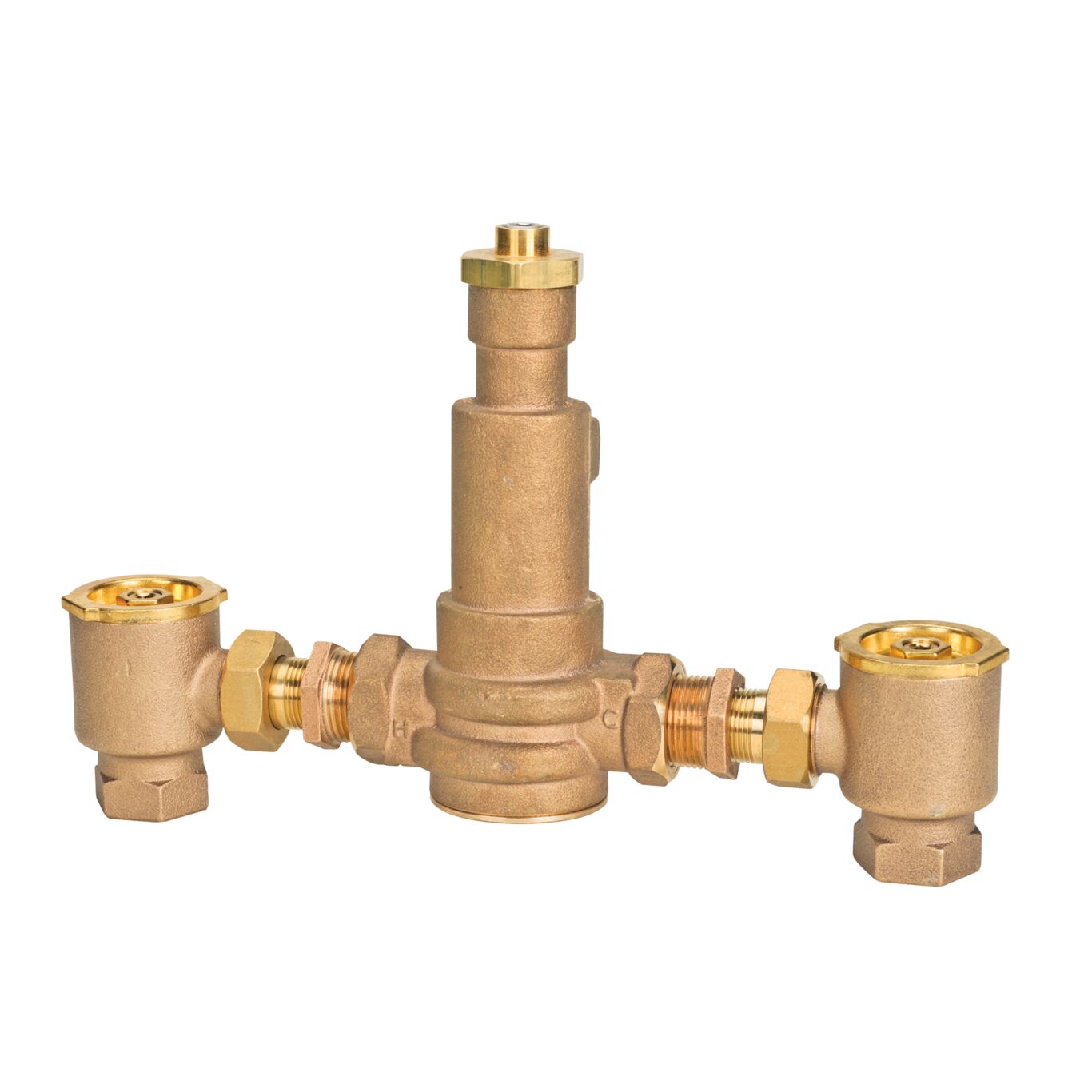

LFN170 CSUT
Lead Free* Master Tempering Valves for Hot Water Distribution with Check stops
LFN170 CSUT
Lead Free* Master Tempering Valves for Hot Water Distribution with Check stops
Features
- Paraffin-based thermostat senses and adjusts outlet temperature
- Provides virtual shutoff if supply pressure fails
- Vandal-resistant locking mechanism prevents tampering with temperature setting
- Poppet and seat are dirt- and lime-resistant
The LFN170 CSUT Lead Free* Master Tempering Valve Series is designed for use in commercial and institutional applications, to mix hot and cold water to reduce high service water temperature to the building distribution piping system. The LFN170 CSUT series is designed for installation at the hot water source. It features Lead Free* brass body construction, a copper/paraffin thermostat assembly, and a lockable temperature adjustment for increased safety. Polysulfone internals resist excessive heat, liming and corrosion, and a single-seat design ensures tight shut-off in the event of cold water supply loss. Has three-in-one checkstops to prevent cross flow, isolate valve to facilitate maintenance, and integral screens to filter out debris. The LFN170 CSUT is listed to ASSE 1017 and IAPMO cUPC in compliance with CSA B125.3. Temperature range is 90 to 180 degreeF (32 to 82 degreeC). Maximum pressure is 125psi.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFN170 CSUT
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

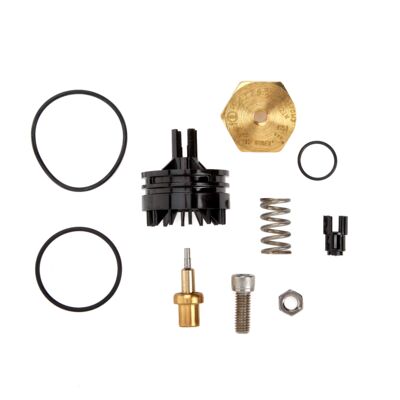

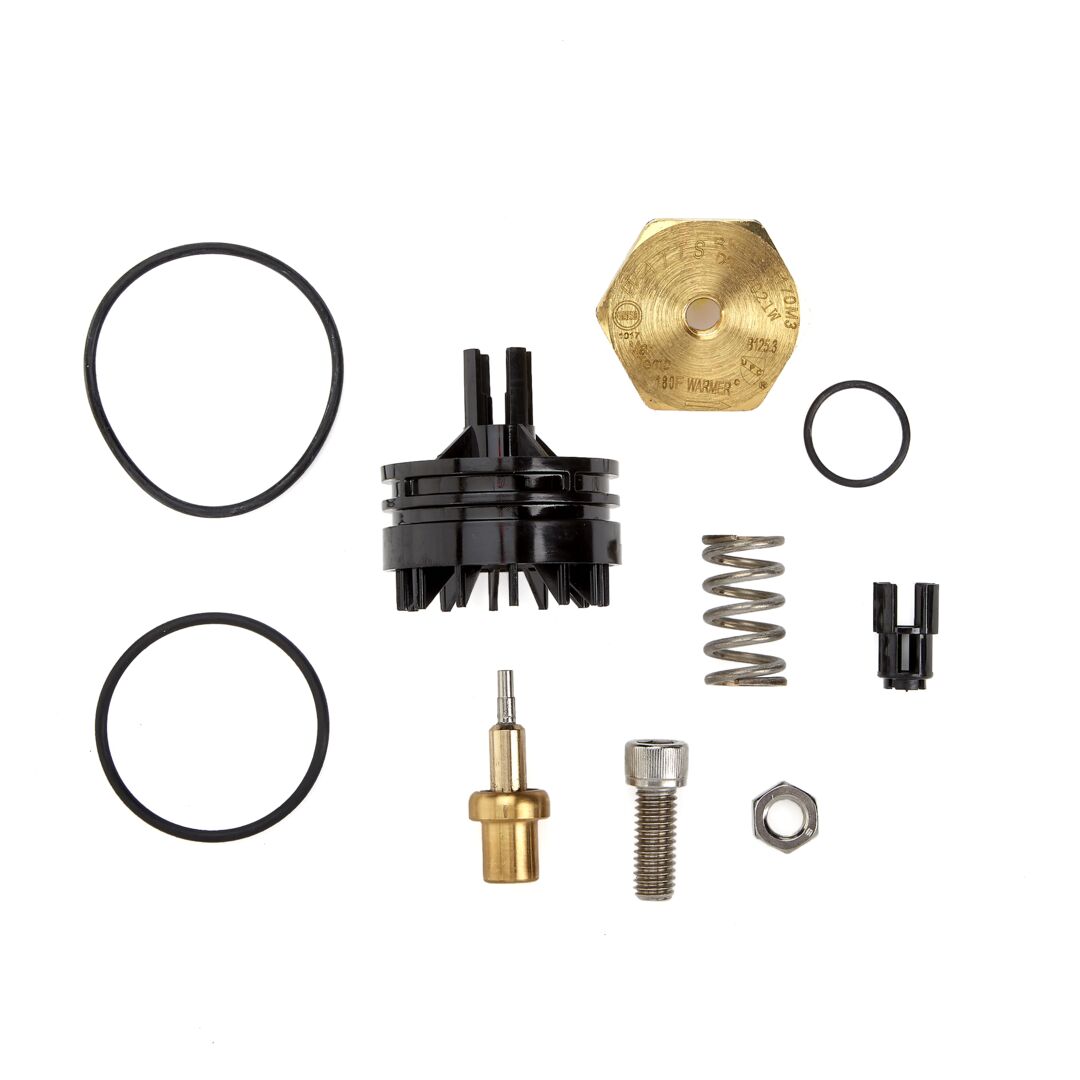

LFRK N170-T 3/4-1
Repair Kit |
Series LFN170-M3, LFN170-M3 CSUT Master Mixing Valves</br></br> |
Adjusting Screw, Bonnet, Thermal Actuator, Locknut, Plunger, Spring, O-Ring</br> |
|

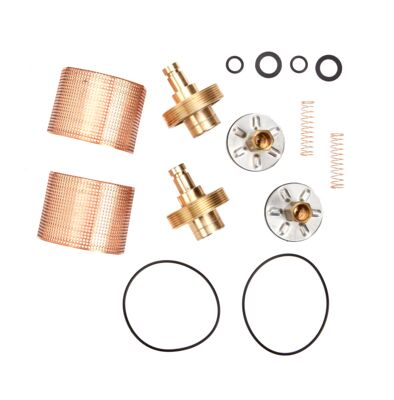

RK LFN170M3-ST 3/4-1
Stop Replacement Kit |
Series LFN170M3 Master Mixing Valve</br></br> |
Adjusting Screw, Bonnet, Thermal Actuator, Locknut, Plunger, Spring And O-Ring</br> |
|

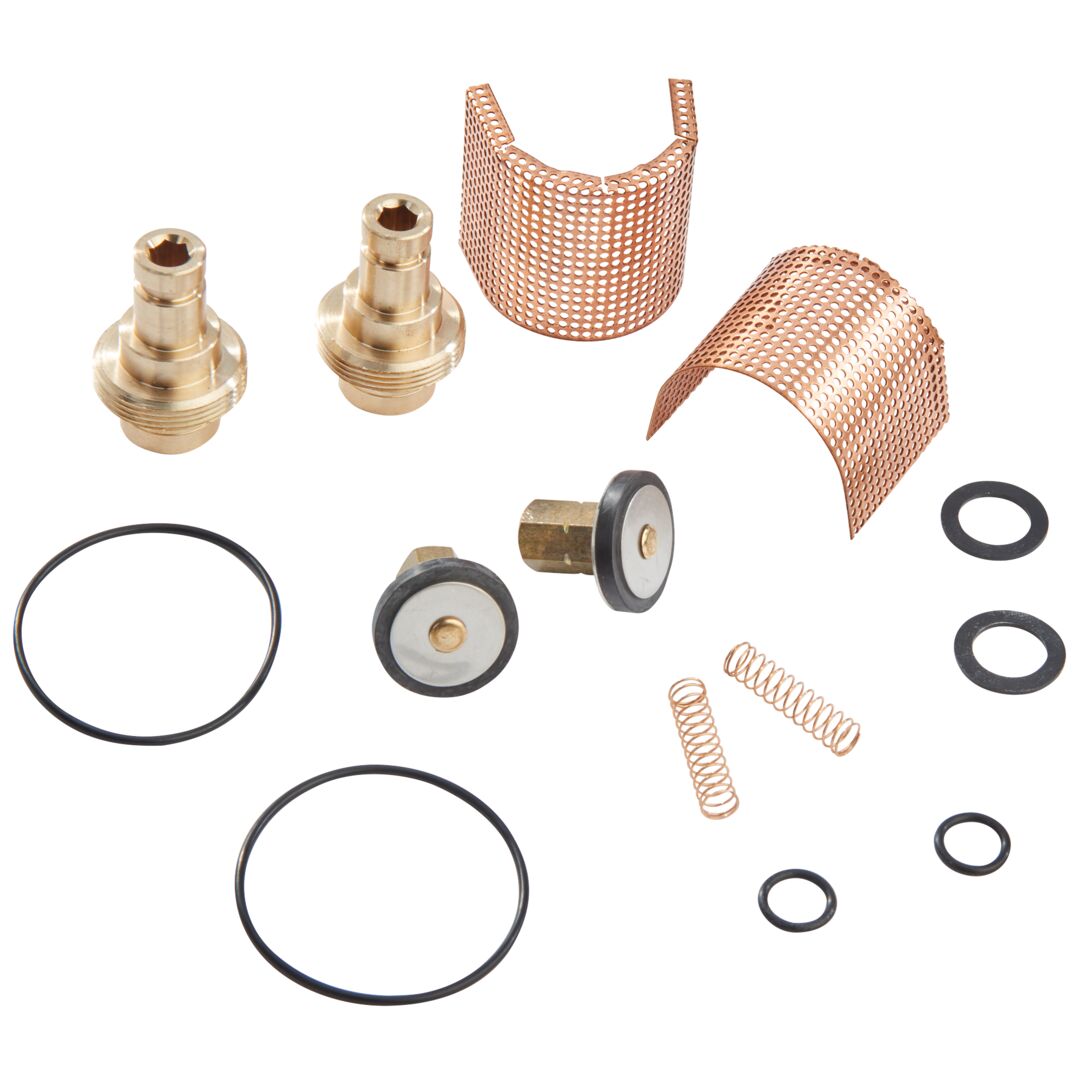

LFN170M3-ST-RK 1 1/4-2
Stop Replacement Kit |
Series LFN170-M3, LFN170-M3 CSUT Master Mixing Valves</br></br> |
Adjusting Screw, Bonnet, Thermal Actuator, Locknut, Plunger, Spring And O-Ring</br> |
|

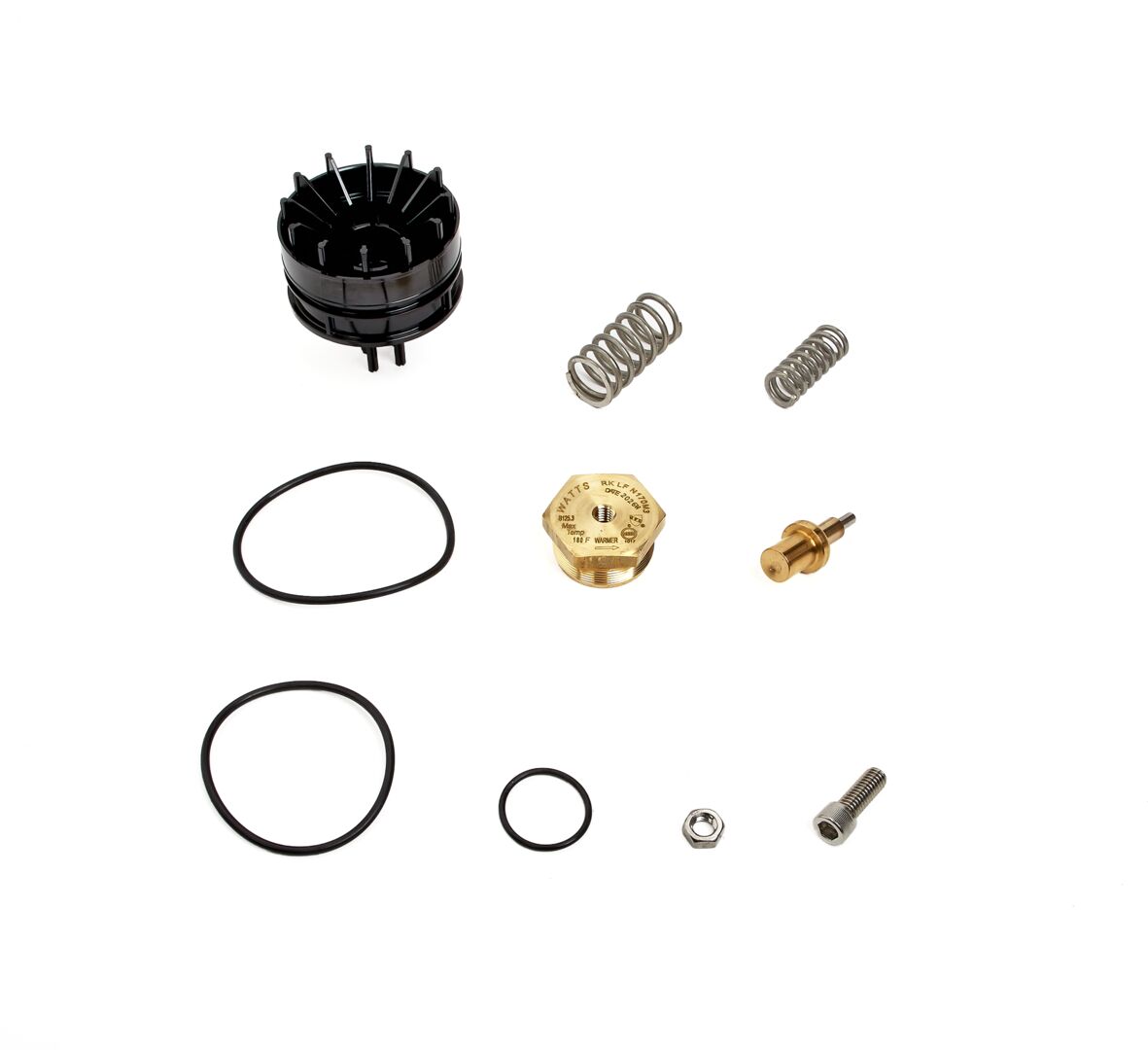

RK LFN170M3 1 1/4-2
Repair Kit |
LFN170M3</br></br> |
Adjusting Screw, Bonnet, Thermal Actuator, Locknut, Plunger, Spring, O-Ring</br> |
