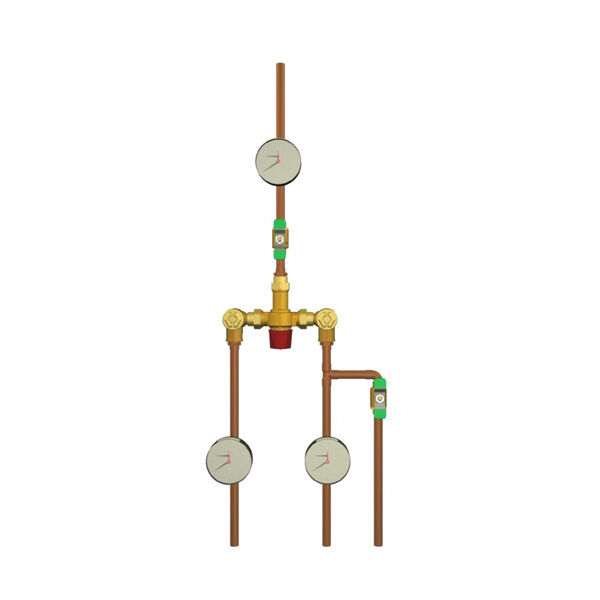

HydroGuard LFLM490 Exposed
HydroGuard LFLM490 supply fixtures - exposed
Powers HydroGuard LFLM Series Lead Free* supply fixtures are fully assembled and factory tested. Each system is equipped with a LFLM490 Series thermostatic tempering valve, featuring Powers advanced paraffin actuation technology for fast response. Standard features include pressure/temperature gauge, outlet ball valve and triple-duty check stops. Optional equipment includes inlet pressure/temperature gauges, cold water by-pass, and AquaSentry2 high-temperature alarm. Tempering valves are listed to ASSE 1017 and CSA B125.
Size this now with our Selexit sizing tool.
Features
- Includes pressure/temperature gauge, outlet ball valve, and triple-duty check stops
- Supply fixtures are fully assembled and factory tested
- Equipped with fast response LFLM490 Series thermostatic tempering valve listed to ASSE 1017 and CSA B125
- Optional equipment includes inlet pressure/temperature gauges, cold water by-pass, and AquaSentry2 high-temperature alarm
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific HydroGuard LFLM490 Exposed
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
