LFWP10B-1616PB

Part of the LFWP10B Series

Ordering Code: 0653008

UPC: 098268441208

Lead Free: YES

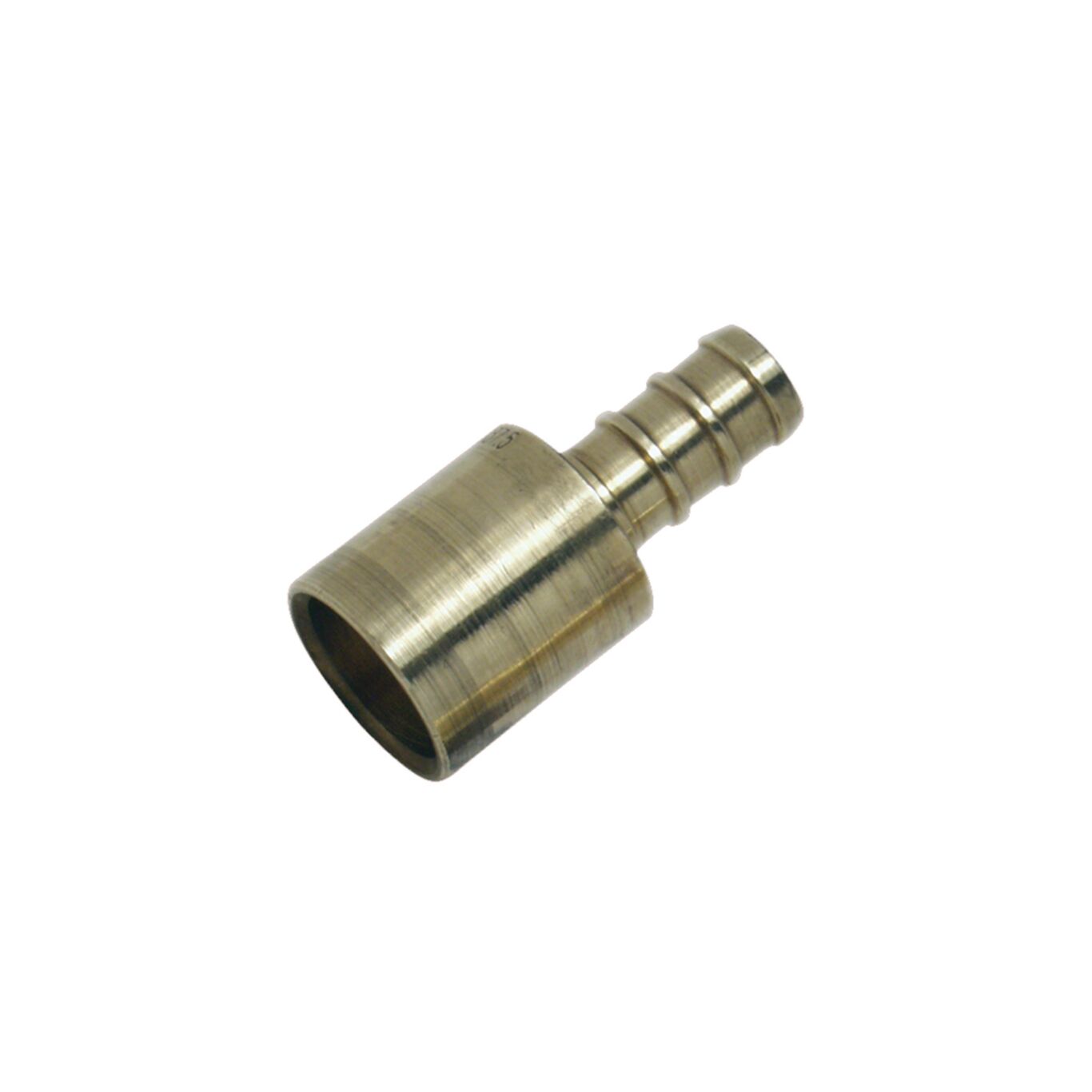

1 Ms X 1 Cf Lead Free Crimpring (TM) Male Sweat Adapter

This lead free CrimpRing (TM) adapter is used to make a straight transition between copper pipe and potable or radiant heating PEX tubing. This 1 inch male sweat x 1 crimp adapter is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Product Features

  • For use with SDR-9 PEX pipe
  • Provides leak proof seal
  • NSF-PW, B137.5, ASTM F877, F1807 certified
  • Manufactured from lead free brass
Specifications
Brand Name Watts
Brass Insert No
EANUCCCode 098268441208
Finish Brass
Fitting Name Adapter
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Socket
Inlet Material Brass
Inlet Thread Type Does Not Apply To Product
Inner Diameter Does Not Apply To Product
Lead Free YES
Material Brass
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Celsius 93.00
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature - Celsius -1.00
Minimum Temperature-Fahrenheit 30
O-ring Material Does Not Apply To Product
Outer Diameter Does Not Apply To Product
Outlet Connection Size 1 IN
Outlet Connection Type Crimped
Outlet Material Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0653008
Series LFWP10B
Suitable for Gas Service No
