LFWP10B-2020PB

Part of the LFWP10B Series

Ordering Code: 0653151

UPC: 098268442632

Lead Free: YES

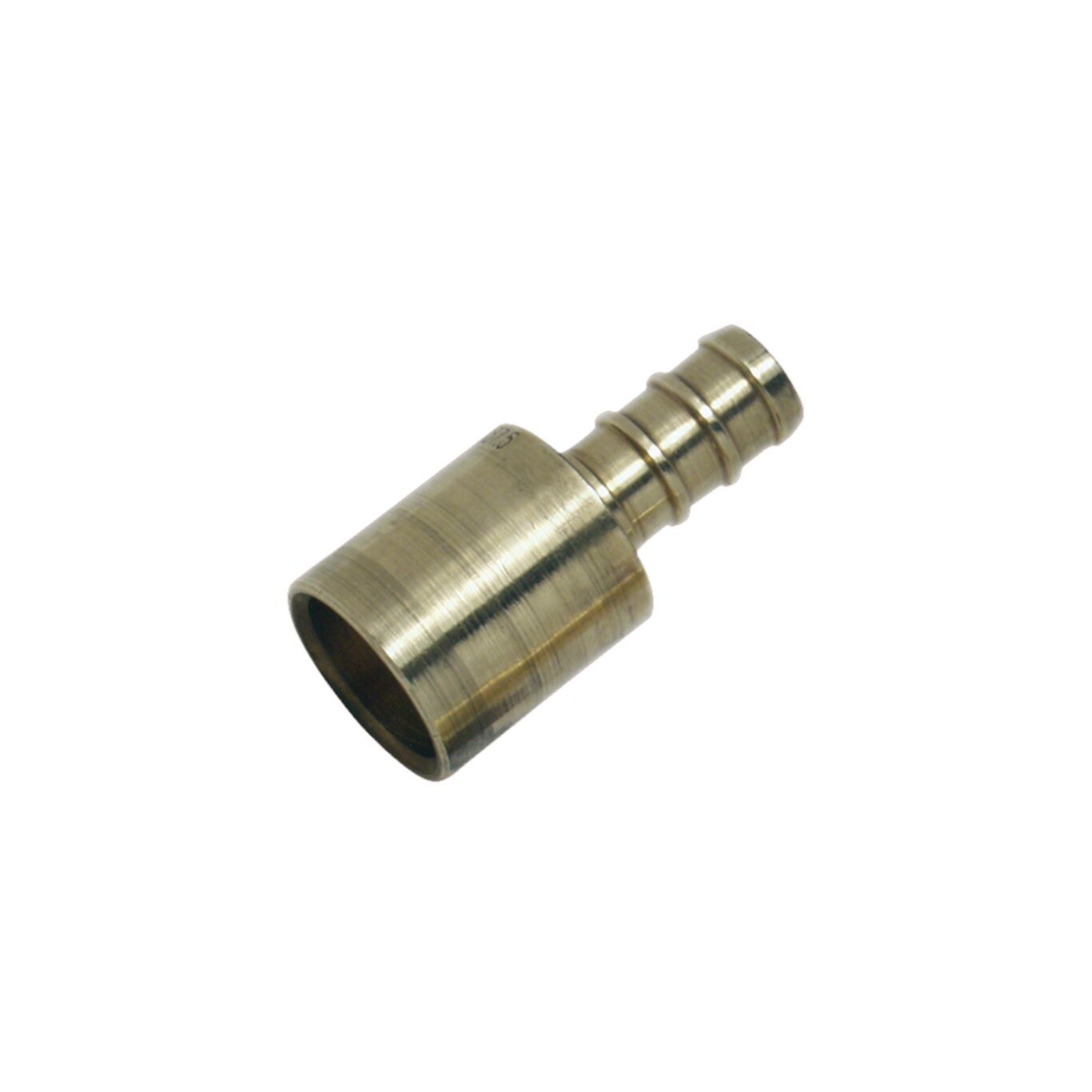

1 1/4 Ms X 1 1/4 Cf Lead Free Crimpring (TM) Male Sweat Adapter

This lead free CrimpRing (TM) adapter is used to make a straight transition between copper pipe and potable or radiant heating PEX tubing. This 1 1/4 inch male sweat x 1 1/4 crimp adapter is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Product Features

  • For use with SDR-9 PEX pipe
  • Manufactured from lead free brass
  • NSF-PW, B137.5, ASTM F877, F1807 certified
  • Provides leak proof seal
Specifications
Brand Name Watts
Brass Insert No
Finish Brass
Fitting Name Adapter
Inlet Connection Size 1 1/4 IN
Inlet Connection Size-Metric 32 MM
Inlet Connection Type Socket
Inlet Material Brass
Inlet Thread Type Does Not Apply To Product
Inner Diameter Does Not Apply To Product
Lead Free YES
Material Brass
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Celsius 93.00
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature - Celsius -1.00
Minimum Temperature-Fahrenheit 30
Model Number LFWP10B-2020PB
O-ring Material Does Not Apply To Product
Outer Diameter Does Not Apply To Product
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Crimped
Outlet Material Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0653151
Series LFWP10B
Suitable for Gas Service No
