LFWP15B-2020PB Watts

Part of the LFWP15B Series

Ordering Code: 0653052

UPC: 098268441642

Lead Free: YES

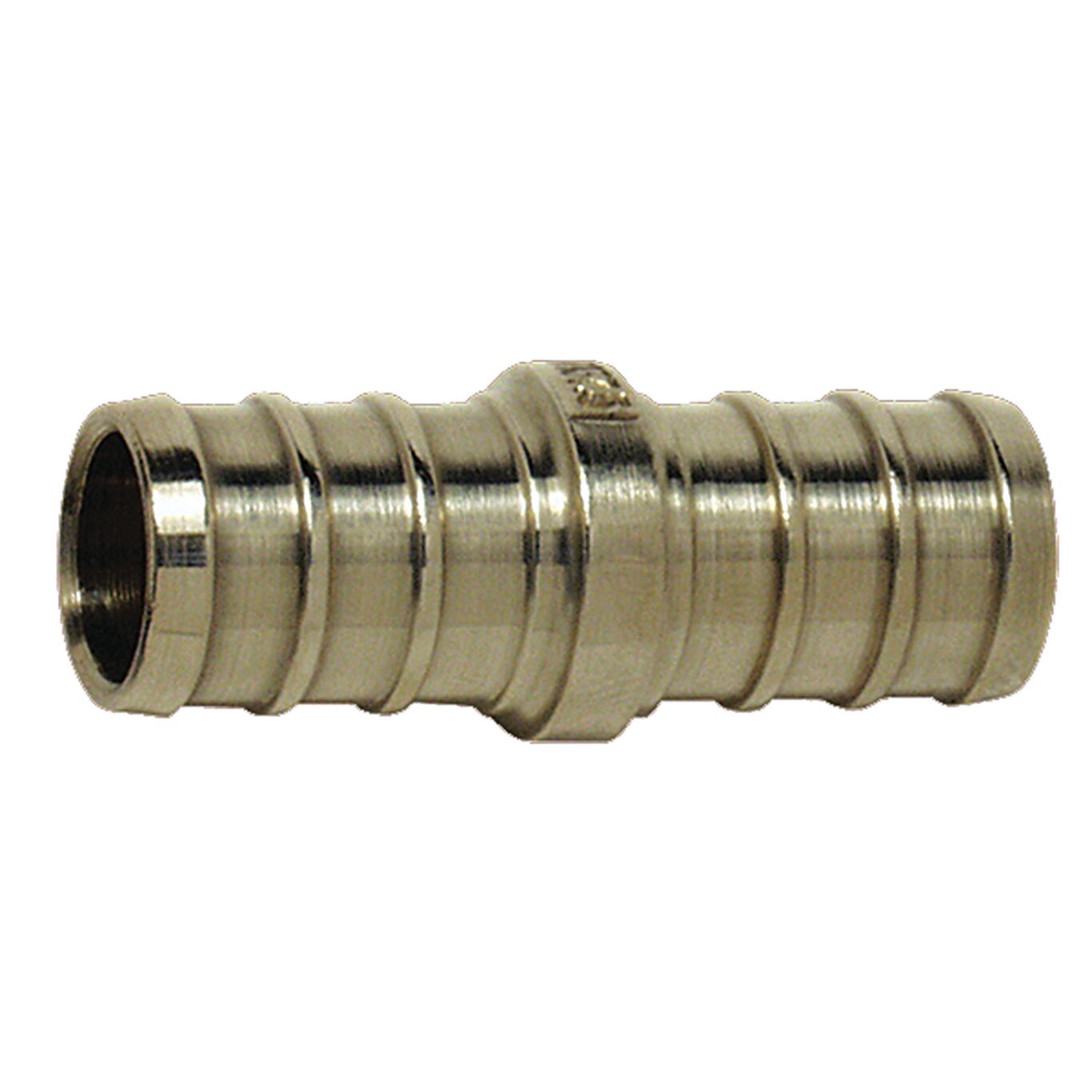

1 1/4 Cf X 1 1/4 Cf Lead Free Crimpring (TM) Coupling

This lead free CrimpRing (TM) coupling is used to make a straight transition between potable or radiant heating PEX tubing. This 1 1/4 crimp by 1 1/4 crimp coupling is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended that an electric crimp tool be used to make the crimp connection.

Product Features

  • NSF-PW, B137.5, ASTM F877, F1807 certified
  • Provides leak proof seal
  • For use with SDR-9 PEX pipe
  • Manufactured from lead free brass
Specifications
BrandName Watts
Brass Insert No
Finish Brass
Fitting Name Coupling
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Crimped
Inlet Material Brass
Inlet Thread Type Does Not Apply To Product
Inner Diameter Does Not Apply To Product
LeadFree YES
Material Brass
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature-Fahrenheit 30
ModelNumber LFWP15B-2020PB
O-ring Material Does Not Apply To Product
Outer Diameter Does Not Apply To Product
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Crimped
Outlet Material Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0653052
Series LFWP15B
Suitable for Gas Service No
