LFWP15B-2424PB

Part of the LFWP15B Series

Ordering Code: 0653186

UPC: 098268004311

Lead Free: YES

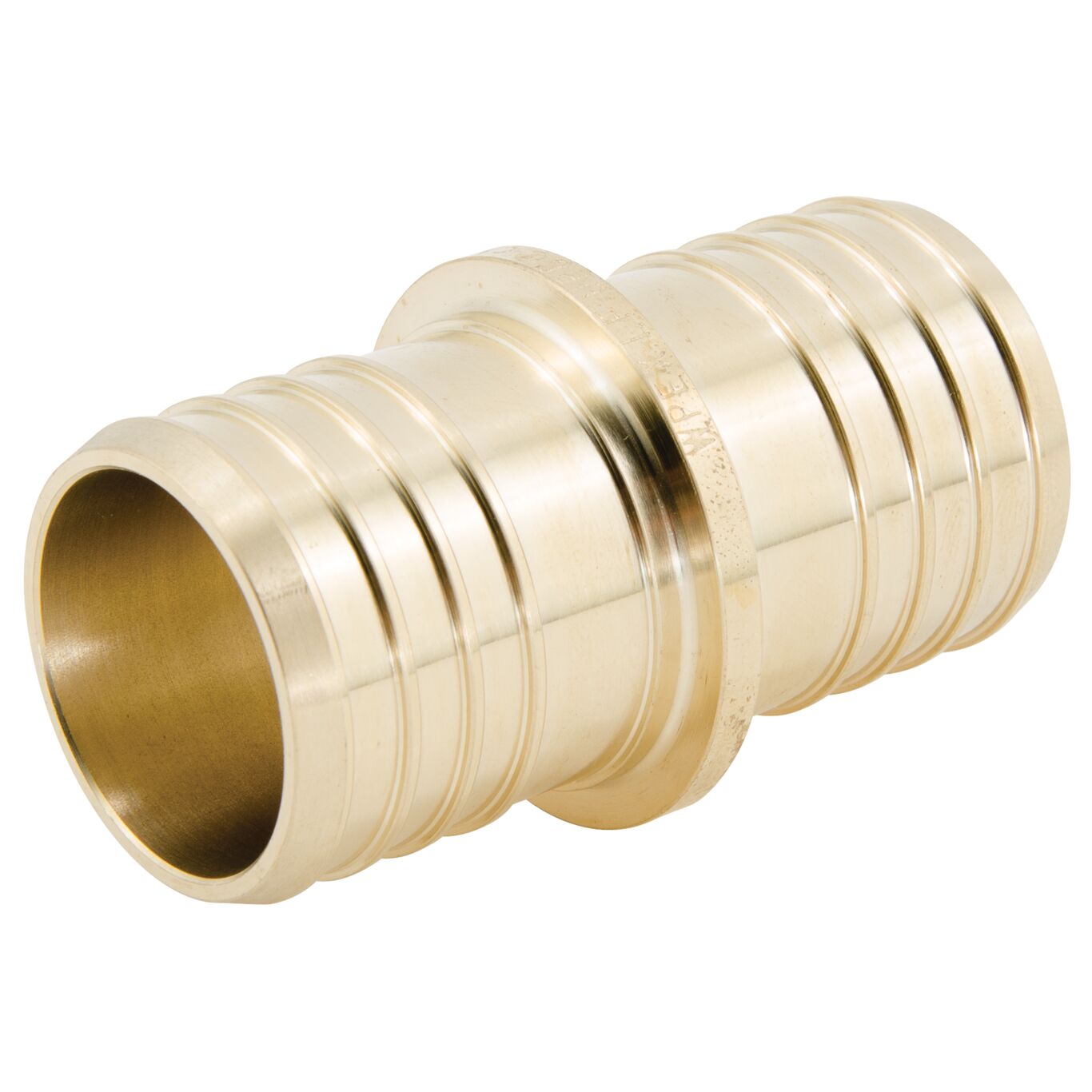

1 1/2 Cf X 1 1/2 Cf In Lead Free Brass Crimpring (TM) Coupling

This lead free brass CrimpRing (TM) coupling is used to make a straight transition between potable or radiant heating PEX tubing. This 1 1/2 inch crimp x 1 1/2 inch crimp coupling is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Product Features

  • May be used with any certified SDR9 CTS PEX tubing
  • UPC Certified
  • NSF Certified
  • Manufactured from lead free brass
Specifications
Brand Name Watts
Brass Insert No
Finish Lead Free Brass
Fitting Name Coupling
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 38 MM
Inlet Connection Type Crimped
Inlet Material Lead Free Brass
Inlet Thread Type Does Not Apply To Product
Inner Diameter Does Not Apply To Product
Lead Free YES
Material Lead Free Brass
Maximum Working Pressure-BAR 6.90
Maximum Working Pressure-PSI 100
Maximum Working Temperature-Celsius 82.00
Maximum Working Temperature-Fahrenheit 180
Minimum Temperature - Celsius 1.70
Minimum Temperature-Fahrenheit 35
Model Number LFWP15B-2424PB
O-ring Material Does Not Apply To Product
Outer Diameter Does Not Apply To Product
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Crimped
Outlet Material Does Not Apply To Product
Outlet Thread Type Does Not Apply To Product
Part Number 0653186
Series LFWP15B
Suitable for Gas Service No
