LFWP18B-161612PB

Part of the LFWP18B Series

Ordering Code: 0653082

UPC: 098268441949

Lead Free: YES

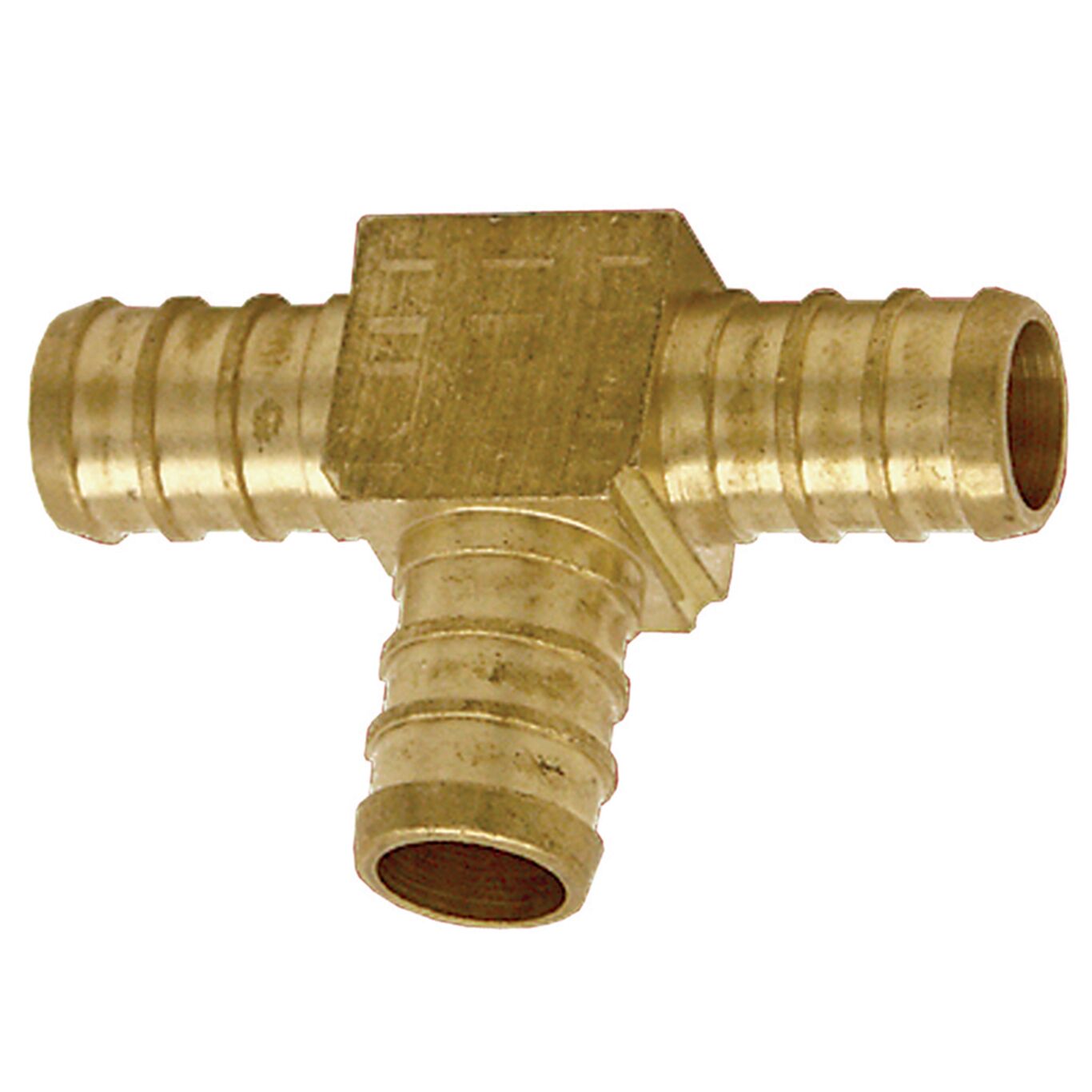

1 Cf X 1 Cf X 3/4 Cf Lead Free Crimpring (TM) Tee

This lead free CrimpRing (TM) tee is used to make a three way connection between potable or radiant heating PEX tubing. This 1 crimp x 1 crimp x 3/4 crimp branch tee is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Product Features

  • NSF-PW, B137.5, ASTM F877, F1807 certified
  • Used for three way connection between SDR-9 PEX pipe
  • Provides leak proof seal
  • Manufactured from lead free brass
Specifications
BrandName Watts
Finish Brass
Inlet Connection Size 1 IN
Inlet Connection Type Crimped
Inlet Material Brass
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Material Brass
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature-Fahrenheit 30
ModelNumber LFWP18B-161612PB
Outlet Connection Size 1 IN
Outlet Connection Type Crimped
Outlet Material Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0653082
Second Outlet Connection Size 3/4 IN
Second Outlet Connection Type Crimped
Second Outlet Material Brass
Second Outlet Thread Type Does Not Apply To Product
Series LFWP18B
Suitable for Gas Service No
Tee Type Standard
