LFWP18B-202008PB

Part of the LFWP18B Series

Ordering Code: 0653176

UPC: 098268003819

Lead Free: YES

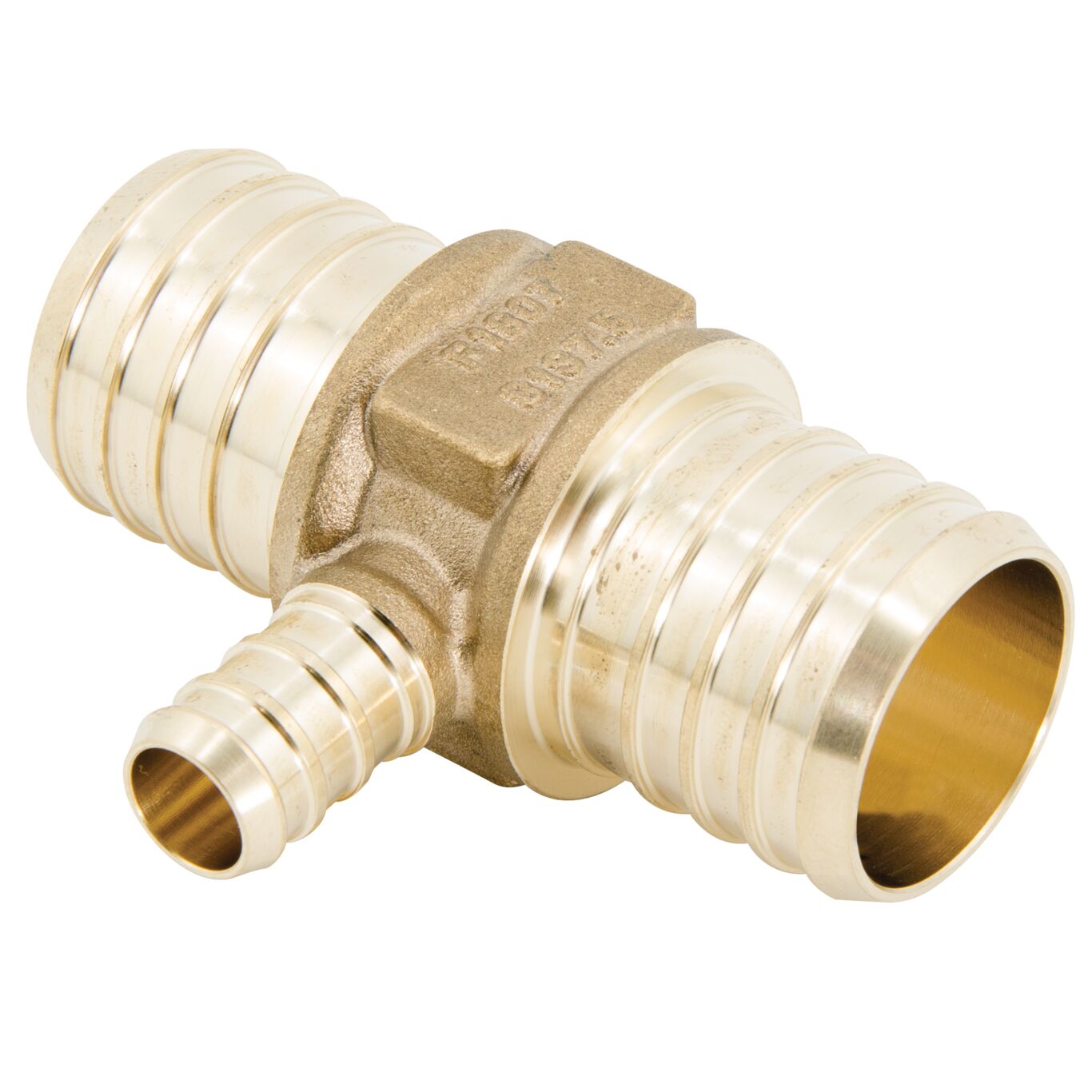

1 1/4 Cf X 1 1/4 Cf X 1/2 Cf In Lead Free Brass Crimpring (TM) Tee

This lead free CrimpRing (TM) tee is used to make a three way connection between potable or radiant heating PEX tubing. This 1 1/4 crimp x 1 1/4 crimp x 1/2 crimp tee is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Product Features

  • NSF Certified
  • May be used with any certified SDR9 CTS PEX tubing
  • Manufactured from lead free brass
  • UPC Certified
Specifications
Brand Name Watts
Finish Lead Free Brass
Inlet Connection Size 1 1/4 IN
Inlet Connection Size-Metric 32 MM
Inlet Connection Type Crimped
Inlet Material Lead Free Brass
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Material Lead Free Brass
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Celsius 93.00
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature - Celsius -1.00
Minimum Temperature-Fahrenheit 30
Model Number LFWP18B-202008PB
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Crimped
Outlet Material Lead Free Brass
Outlet Thread Type Does Not Apply To Product
Part Number 0653176
Second Outlet Connection Size 1/2 IN
Second Outlet Connection Type Crimped
Second Outlet Material Lead Free Brass
Second Outlet Thread Type Does Not Apply To Product
Series LFWP18B
Suitable for Gas Service No
Tee Type Standard
