Part of the LFWP19B Series

Ordering Code: 0653101

UPC: 098268442137

Lead Free: YES

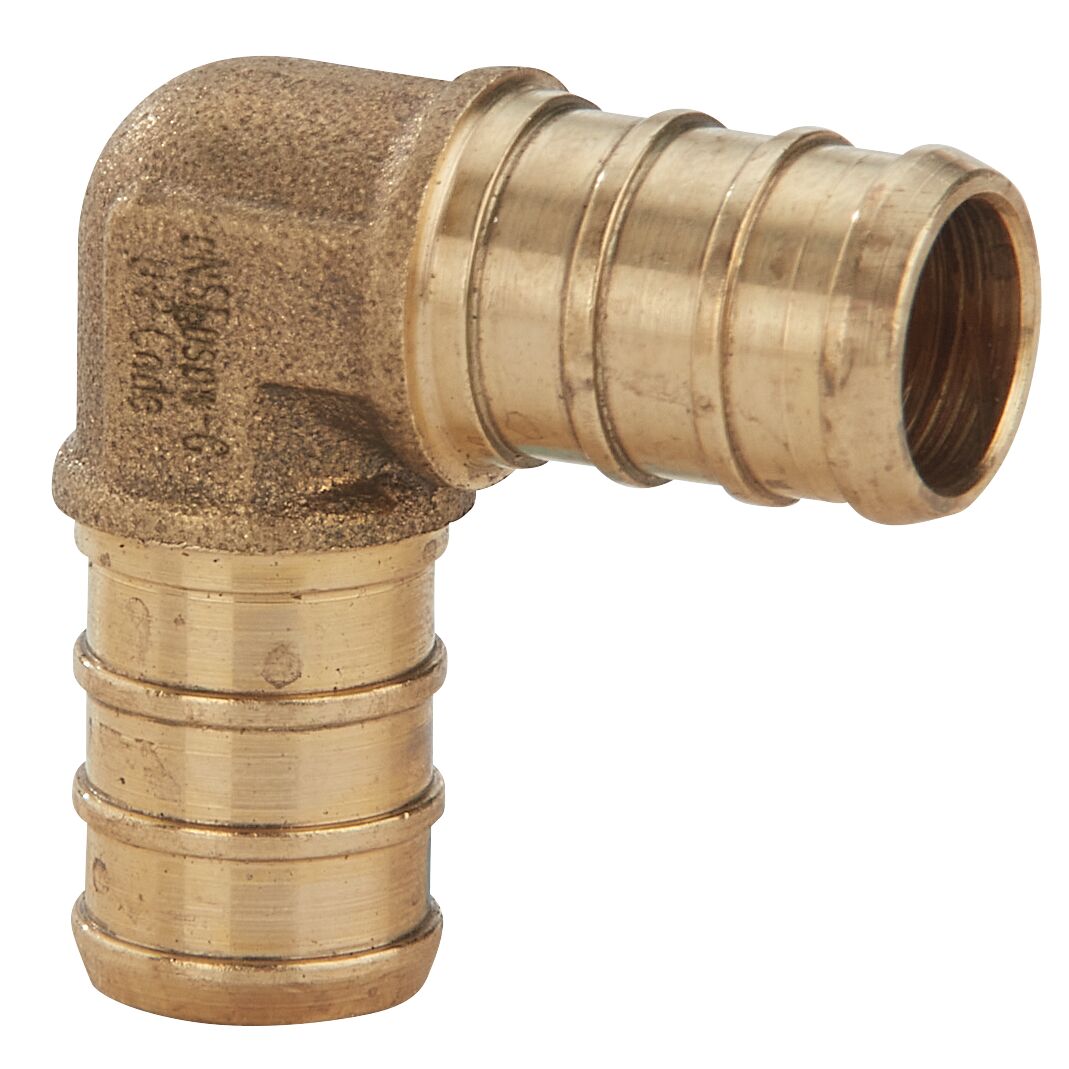

1/2 Cf X 1/2 Cf Lead Free Crimpring (TM) Elbow

This lead free CrimpRing (TM) elbow is used to make a 90 degree transition between potable or radiant heating PEX tubing. This 1/2 crimp x 1/2 crimp elbow is made of lead free brass and must be joined to the PEX tubing using a copper crimp ring to form a fast, reliable, and permanent seal. It is recommended to use an electric crimp tool to make the crimp connection.

Product Features

  • Used for 90 degree change between SDR-9 PEX pipe
  • Provides leak proof seal
  • Manufactured from lead free brass
  • NSF-PW, B137.5, ASTM F877, F1807 certified
Bend Degree 90 degree
Body Finish Brass
Body Material Brass
Brand Name Watts
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 15 MM
Inlet Connection Type Crimped
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Celsius 93.00
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature - Celsius -1.00
Minimum Temperature-Fahrenheit 30
Model Number LFWP19B-08PB
Outlet Connection Size 1/2 IN
Outlet Connection Type Crimped
Outlet Thread Type Does Not Apply To Product
Part Number 0653101
Series LFWP19B
Suitable for Gas Service No
