Part of the LFWP22B Series

Ordering Code: 0653125

UPC: 098268442373

Lead Free: YES

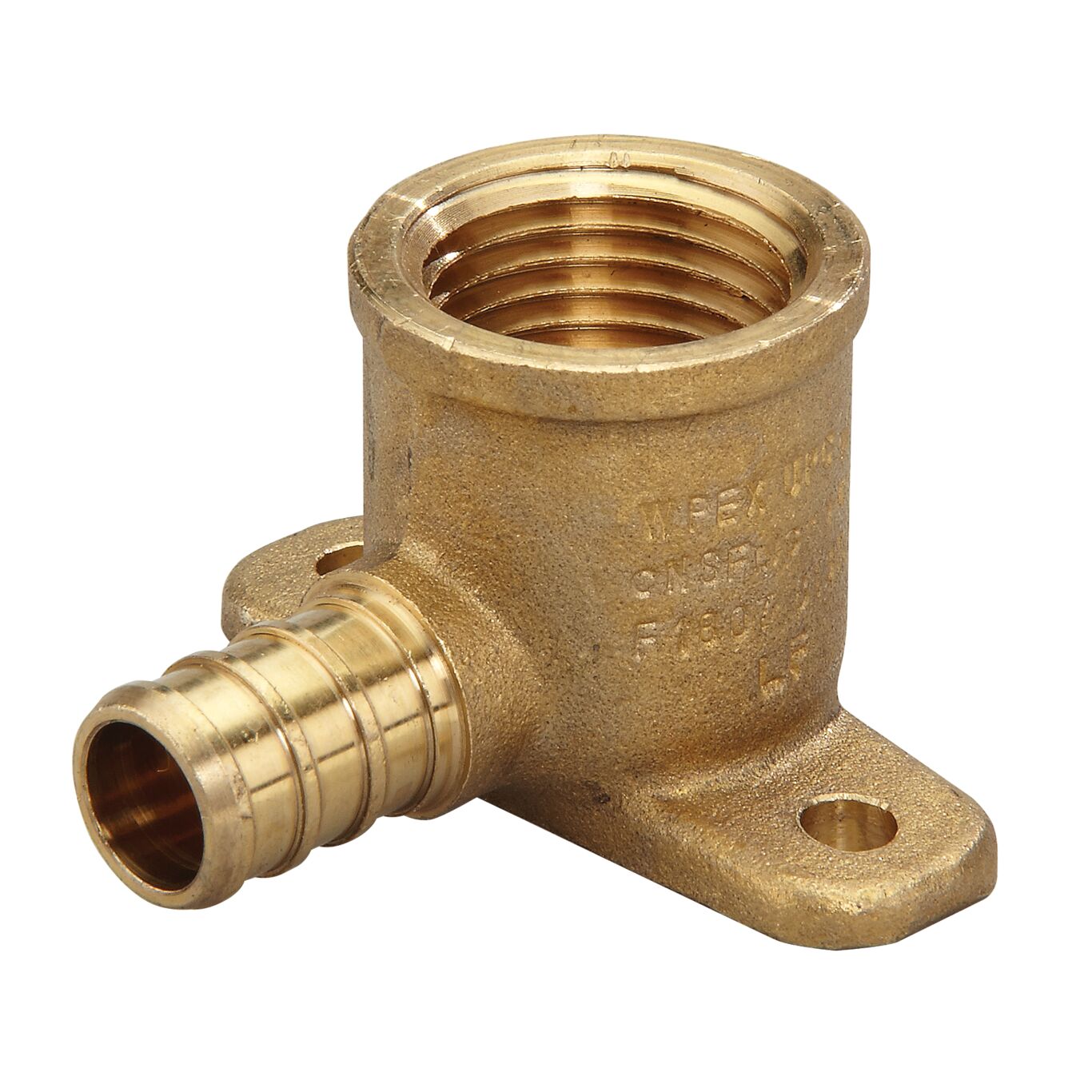

3/4 Cf X 1/2 Fpt Lead Free Drop Ear Elbow - 2 Eared

This lead free CrimpRing (TM) 2-eared drop elbow is used for making 90 degree change between WaterPEX (R) and threaded pipe. This 3/4 CF by 1/2 FPT 2-eared drop elbow is made of lead free brass and provides a leak proof seal.

Product Features

  • Used to make a 90 degree change between SDR-9 PEX pipe and threaded pipe
  • Crimp by FPT threaded 2-eared elbow
  • Manufactured from lead free brass
  • NSF-PW, B137.5, ASTM F877, F1807 certified
Body Finish Brass
Body Material Brass
Brand Name Watts
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Crimped
Lead Free YES
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Celsius 93.00
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature - Celsius -1.00
Minimum Temperature-Fahrenheit 30
Model Number LFWP22B-1208PB
Outlet Connection Size 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0653125
Series LFWP22B
Suitable for Gas Service No
