Part of the LFWPE18P Series

Ordering Code: 0653378

UPC: 098268147933

Lead Free: YES

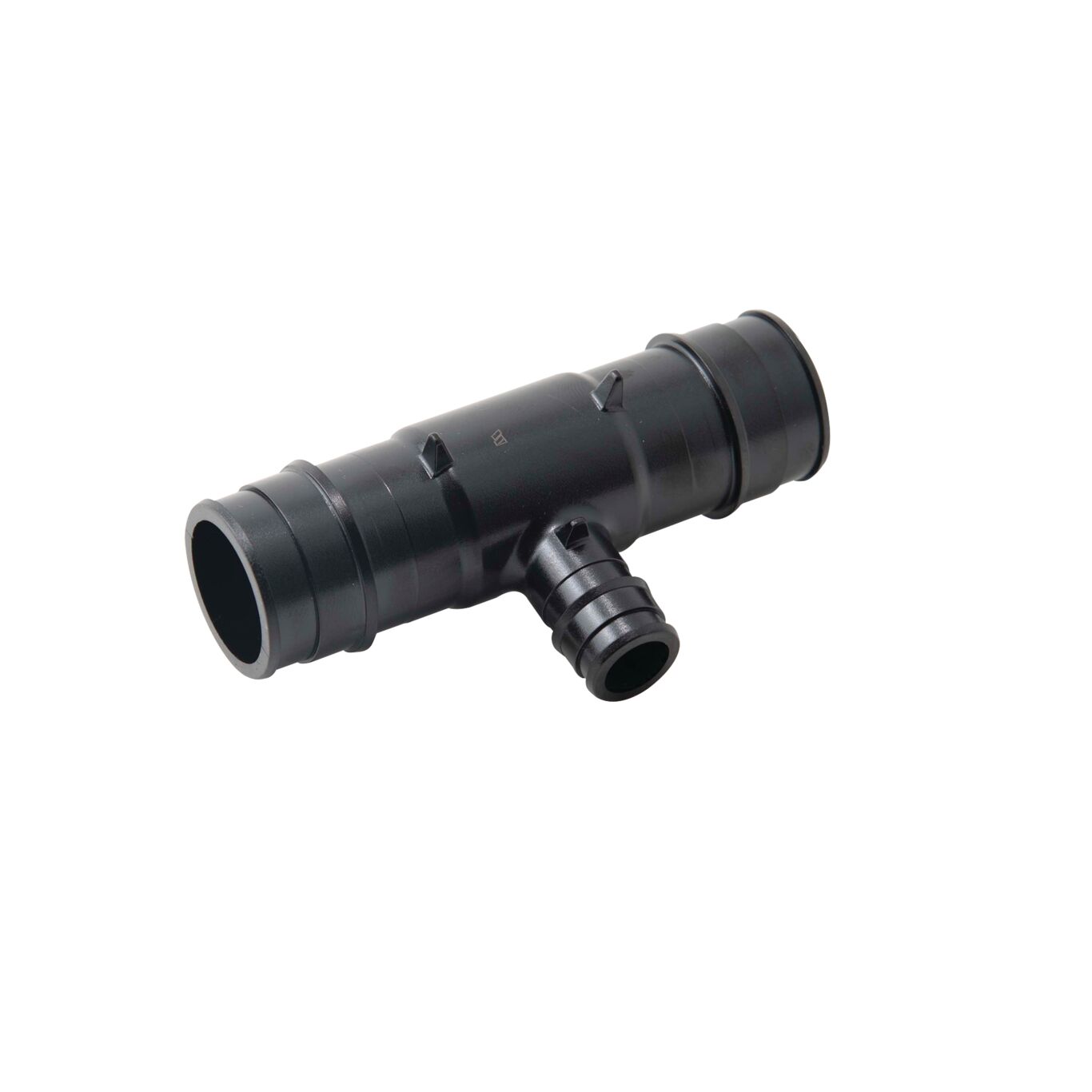

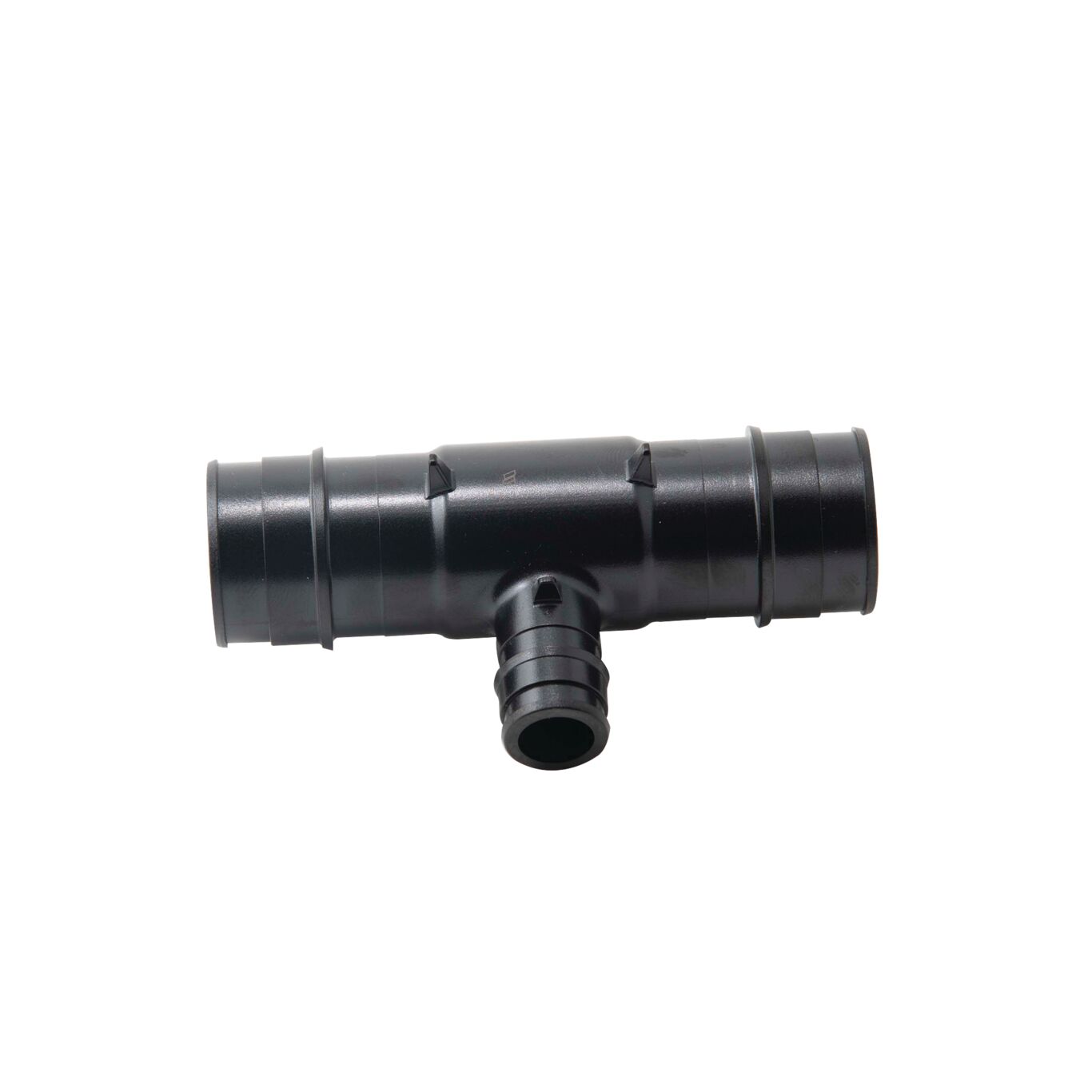

1x1x1/2 In Lead Free Waterpexa Astm Ppsu F1960 Tee

This Polyphenylsulfone ASTM PPSU F1960 tee is used to make a three way connection between WaterPEXa tubing. This 1 inch F1960 by 1 inch F1960 by 1/2 inch F1960 branch tee must be joined to the WaterPEXa tubing using a F1960 PEX sleeve to form a fast, reliable, and permanent seal. It is recommended that a specialized tool be used to make the connection.

Product Features

  • For making a three way connection with WaterPEXa tubing
  • Manufactured from Polyphenylsulfone
  • Special tool recommended
  • Provides a leak proof seal
Brand Name Watts
Finish Polyphenylsulfone
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 32 MM
Inlet Connection Type Expansion
Inlet Material Polyphenylsulfone
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Material Polyphenylsulfone
Maximum Working Pressure-BAR 80.00
Maximum Working Pressure-PSI 12
Maximum Working Temperature-Celsius 194.00
Maximum Working Temperature-Fahrenheit 90
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Model Number LFWPE18P-161608PB
Outlet Connection Size 1 IN
Outlet Connection Type Expansion
Outlet Material Polyphenylsulfone
Outlet Thread Type Does Not Apply To Product
Part Number 0653378
Second Outlet Connection Size 1/2 IN
Second Outlet Connection Type Expansion
Second Outlet Material Polyphenylsulfone
Second Outlet Thread Type Does Not Apply To Product
Series LFWPE18P
Suitable for Gas Service No
Tee Type Standard
