Part of the LFWPE19P Series

Ordering Code: 0653386

UPC: 098268148497

Lead Free: YES

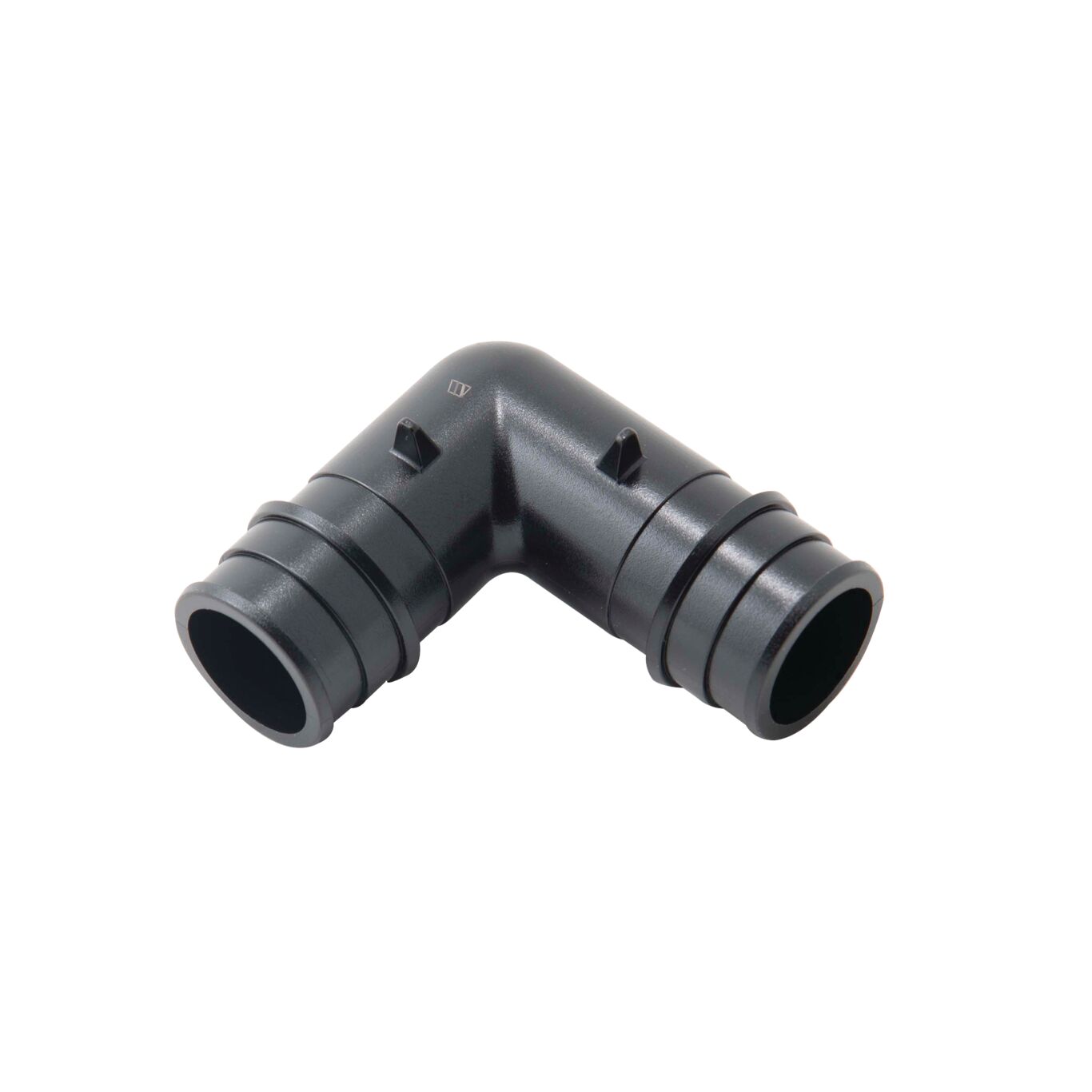

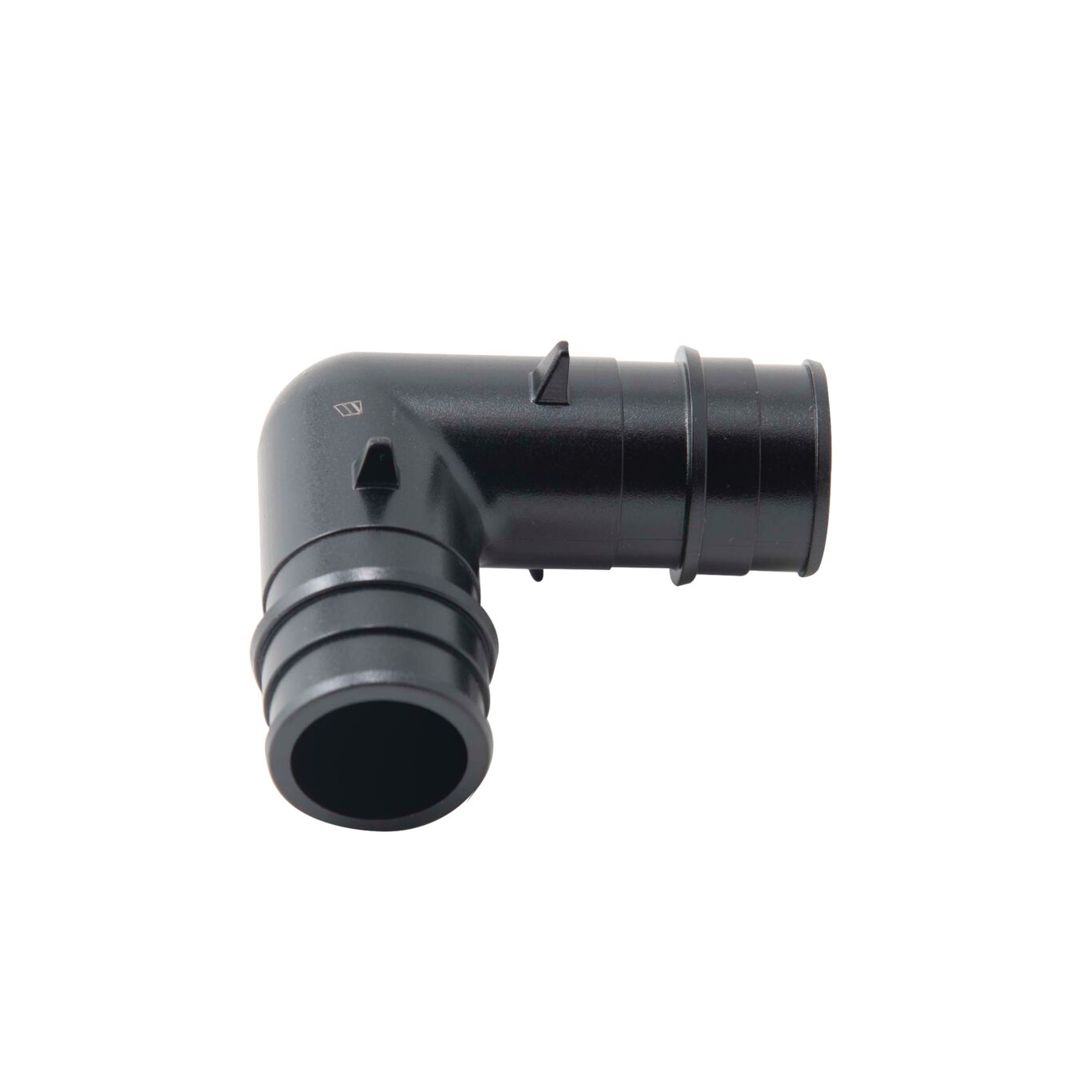

3/4 In Lead Free Waterpexa Astm Ppsu F1960 Elbow

This Polyphenylsulfone ASTM PPSU F1960 elbow is used to make a 90 degree transition between WaterPEXa tubing. This 3/4 inch F1960 by 3/4 inch F1960 elbow must be joined to the PEX tubing using a F1960 PEX sleeve to form a fast, reliable, and permanent seal. It is recommended that a specialized tool be used to make the connection.

Product Features

  • Used for tight 90 degree turns with WaterPEXa tubing
  • For connecting WaterPEXa to WaterPEXa tubing
  • Manufactured from Polyphenylsulfone
  • Provides a leak proof seal
Bend Degree 90 degree
Body Finish Polyphenylsulfone
Body Material Polyphenylsulfone
Brand Name Watts
EANUCCCode 098268148497
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 19 MM
Inlet Connection Type Expansion
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Working Pressure-BAR 12.00
Maximum Working Pressure-PSI 87
Maximum Working Temperature-Celsius 90.00
Maximum Working Temperature-Fahrenheit 194
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 3/4 IN
Outlet Connection Type Expansion
Outlet Thread Type Does Not Apply To Product
Part Number 0653386
Series LFWPE19P
Suitable for Gas Service No
