WP20P-08PB Watts

Part of the WP20P Series

Ordering Code: 0650679

UPC: 098268315257

Lead Free: YES

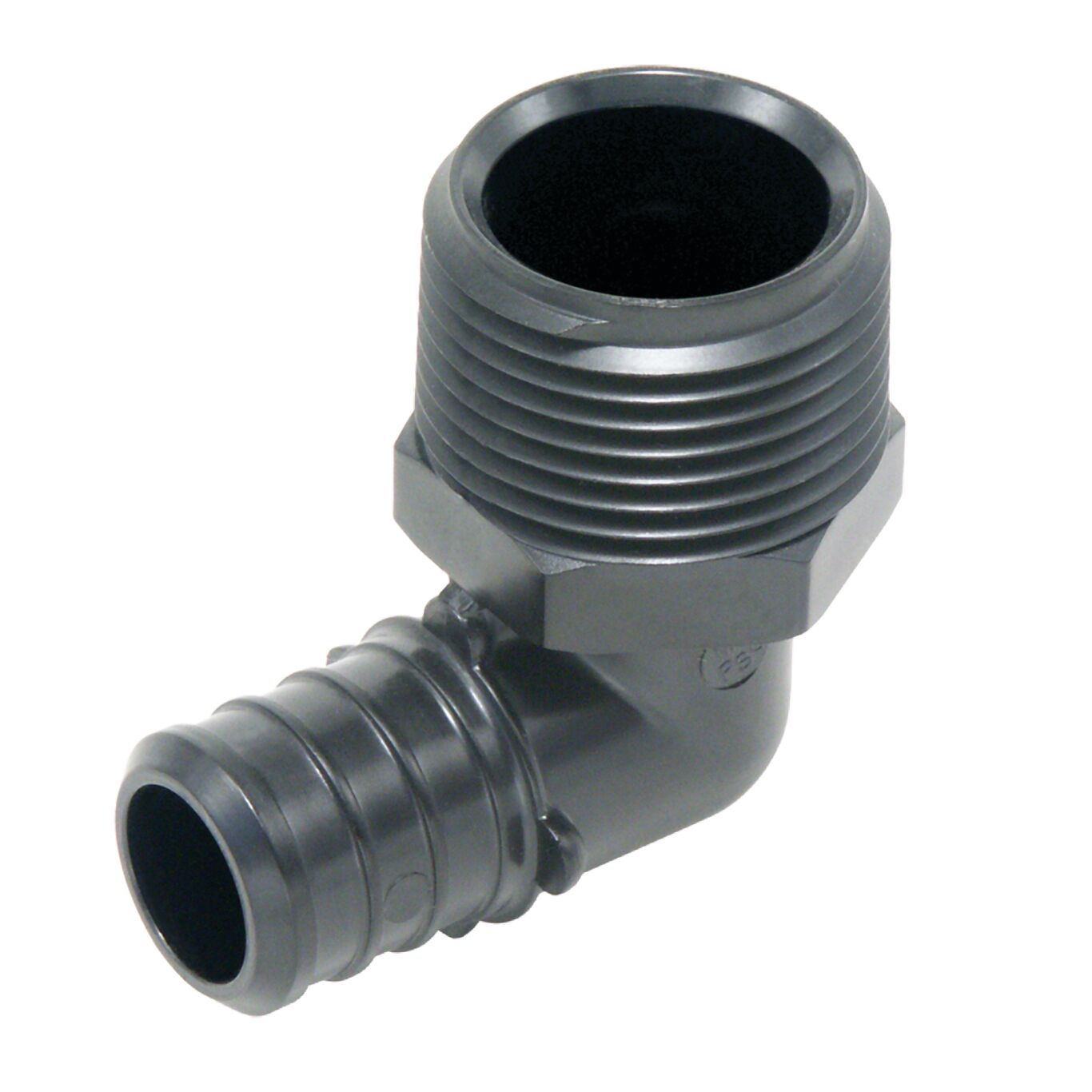

1/2 Cf X 1/2 Mpt Poly Alloy Crimpring (TM) By Mpt Elbow

This 1/2 inch crimp x 1/2 inch MPT poly alloy PEX elbow is used to make a 90 degree change between WaterPEX pipe or between WaterPEX pipe and threaded pipe. It is manufactured in accordance with ASTM F-1807, and is compliant with CSA standard B -137.5. Package of 10.

Product Features

  • NSF-PW, B137.5, ASTM F877, F1259 certified
  • Packed in a resealable poly bag
  • Poly alloy
  • For use with SDR-9 PEX pipe
Specifications
Bend Degree 90 degree
Body Finish Plastic
Body Material Polyphenylsulfone
BrandName Watts
Inlet Connection Size 1/2 IN
Inlet Connection Type Crimped
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Working Pressure-BAR 11.00
Maximum Working Pressure-PSI 160
Maximum Working Temperature-Fahrenheit 200
Minimum Temperature-Fahrenheit 30
ModelNumber WP20P-08PB
Outlet Connection Size 1/2 IN
Outlet Connection Type Male Threaded
Outlet Thread Type NPT
Part Number 0650679
Series WP20P
Suitable for Gas Service No
