WP25P-08PB
×
![]()
Part of the WP25P Series
Ordering Code: 0650808
UPC: 098268315967
Lead Free: YES

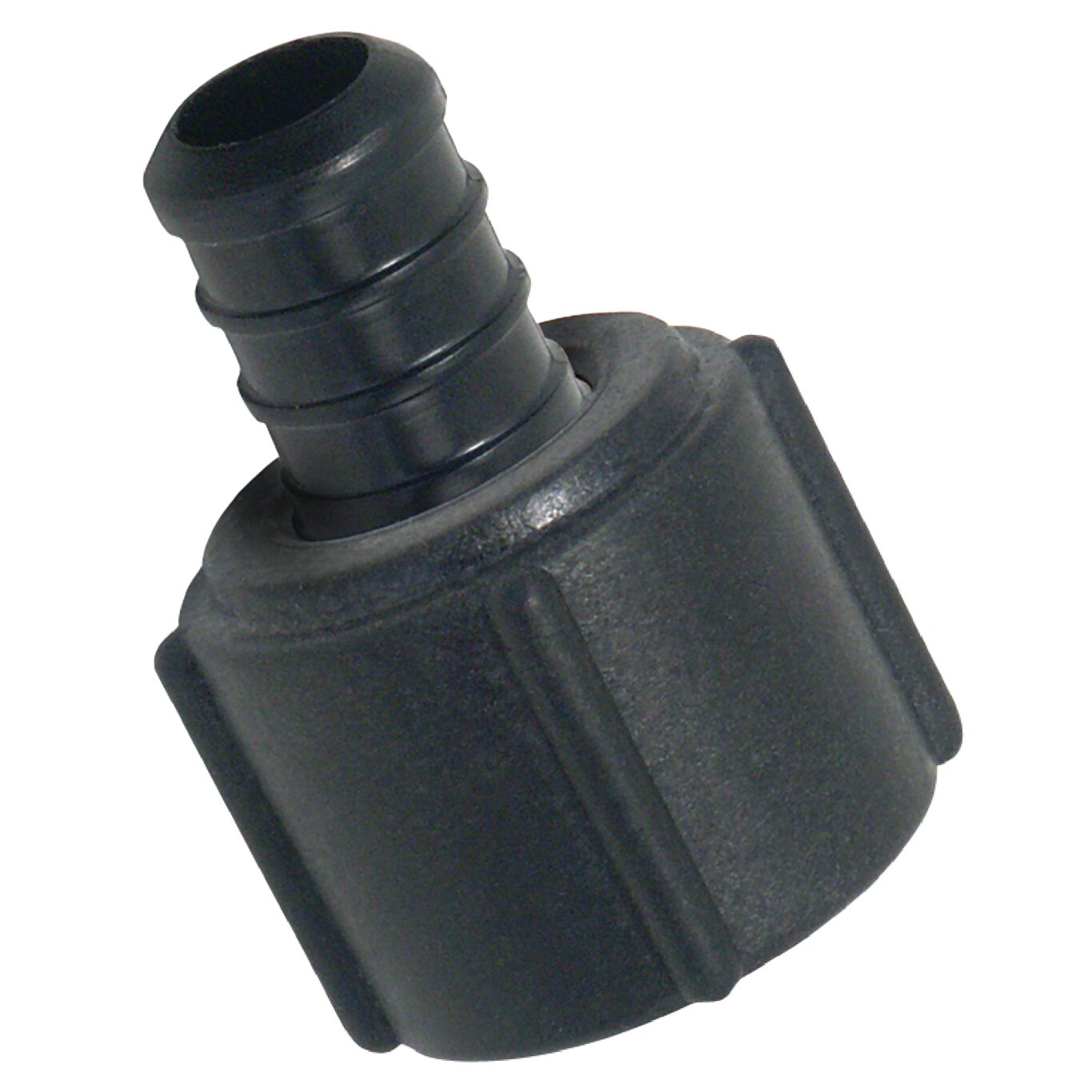

1/2 Cf X 1/2 Fip Poly Alloy Straight Swivel Coupling
This 1/2 female iron pipe thread x 1/2 crimp poly alloy PEX swivel coupling, straight pattern, is used for connecting 3/8 inch or 1/2 inch WaterPEX supply lines directly from the manifold or branch supply to the faucet. It is manufactured in accordance with ASTM F-1807, and is compliant with CSA standard B -137.5. Package of 25.
Features
- Poly alloy
- NSF-PW, B137.5, ASTM F877, F1259 certified
- Packed in a resealable poly bag
- For use with SDR-9 PEX pipe
| Specifications | |
|---|---|
| Brand | Watts |
| Brass Insert | No |
| Buy American Act Compliant | NO |
| EAN | 098268315967 |
| Finish | Plastic |
| Fitting Name | Coupling |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Size-Metric | 15 MM |
| Inlet Connection Type | Crimped |
| Inlet Material | Polyphenylsulfone |
| Inner Diameter | Does Not Apply To Product |
| Lead Free | YES |
| Material | Polyphenylsulfone |
| Maximum Working Pressure-BAR | 11.00 |
| Maximum Working Pressure-PSI | 160 |
| Maximum Working Temperature-Celsius | 93.00 |
| Maximum Working Temperature-Fahrenheit | 200 |
| Minimum Temperature - Celsius | -1.00 |
| Minimum Temperature-Fahrenheit | 30 |
| Outer Diameter | Does Not Apply To Product |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Material | Polyphenylsulfone |
| Outlet Thread Type | NPT |
| Part Number | 0650808 |
| Series | WP25P |
| Suitable for Gas Service | No |
