Part of the WPSR-R Series

Ordering Code: 0651020

UPC: 098268344103

Lead Free: YES

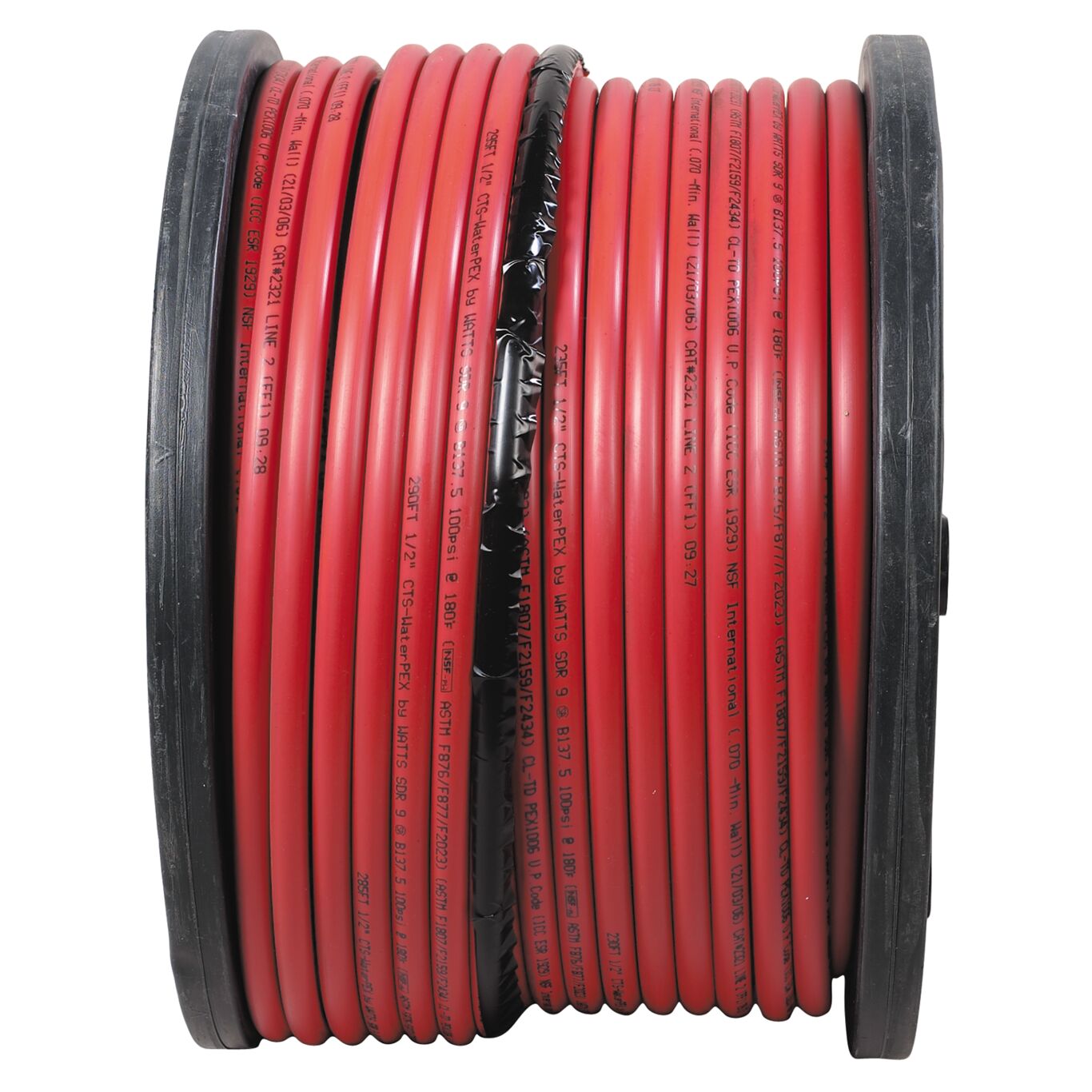

1/2 In X 300 Ft Red Tubing Stud Reel

This pipe stud reel has 300 feet of 1/2 inch WaterPEX red pipe wound on a rigid plastic spool. The reel is designed to be mounted between two wooden or steel construction studs for fast, kink-free home-run PEX pipe installations. The pipe can be drawn off of the reel in a continuous run direct from the manifold to the fixture. The HDPE reel is recyclable, and can be easily stacked at the jobsite or in a construction trailer in a compact space. The reels themselves can be shipped via a small-package shipment carrier.

Product Features

  • Packaged in heavy duty, UV protective plastic sheathe
  • Reel can be mounted between two studs
  • Reel can be reused and recycled
  • Job site stackable and color coded
Bend Radius 5 IN
Body Material Cross-Linked Polyethylene
Brand Name Watts
Color Red
EANUCCCode 098268344103
Inner Diameter 1/2 IN
Lead Free YES
Maximum Operating Temperature-Celsius 93.00
Maximum Operating Temperature-Fahrenheit 200
Outer Diameter 5/8 IN
Part Number 0651020
Series WPSR-R
