05A-CH 3/4

Discontinued - Replaced By: LF05A-CH 3/4

Part of the 05 Series

Ordering Code: 0750033

UPC: 098268417494

Lead Free Model Available

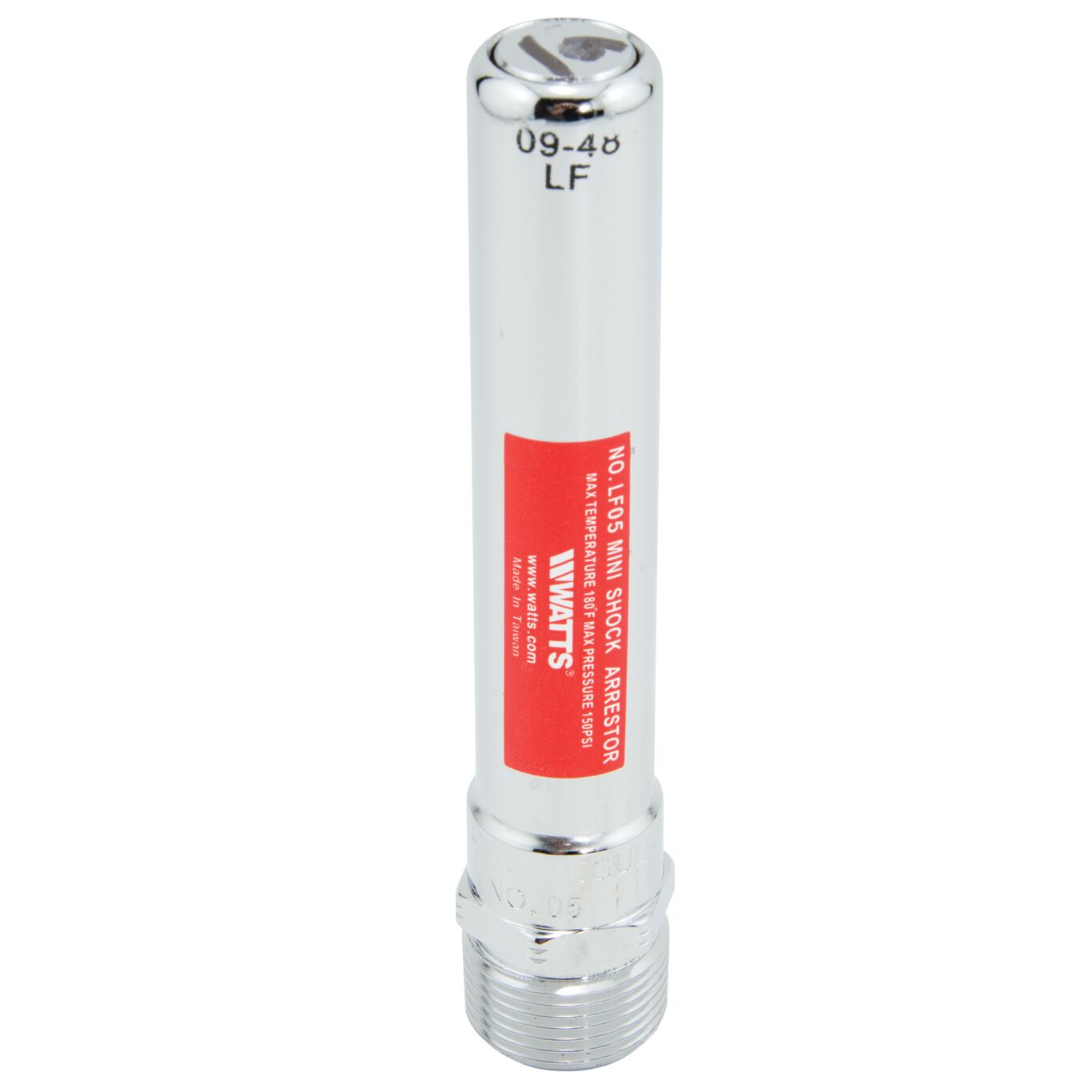

3/4 IN Mini Water Hammer Arrestor with Chrome Plated Finish

This 3/4 inch mini water hammer arrestor provides economical and effective single fixture protection used in residential water system applications such as dishwasher, washing machine, and fast closing positive shutoff valve applications. It is designed to provide automatic, repetitive control of water hammer in residential and light industrial applications and prevent water hammer conditions that are damaging to pipes and appliances. This is a factory air charged, permanently sealed unit with NPT threaded end connection, straight body design, and a chrome plated finish. It should be installed as close to the shock source as possible, with one unit each for the hot and cold water lines. The temperature range is 33 to 180 degree F (0.5 to 82 degrees C) and the operating pressure is up to 150 psi (10.3 bar).

Product Features

  • Can be installed vertically, horizontally or any angle in concealed locations without access panels
  • Ideal for dishwashers, washing machines and quick-closing faucets
  • ASSE approved and IAPMO listed
  • Factory air charged and is not rechargeable
Air Precharge 60 PSI
Air Valve No
Brand Name Watts
Connection Size 3/4 IN
Connection Size-Metric 20 MM
Connection Type Compression Joint
Factory Set Pressure-PSI 60
Lead Free NO
Maximum Operating Temperature-Celsius 82.00
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.00
Maximum Working Pressure-PSI 150
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number 05A-CH 3/4
Part Number 0750033
Series 05
Temperature Range 33 to 180 degree F
