LF05H 3/4

Part of the LF05 Series

Ordering Code: 0009852

UPC: 098268430134

Lead Free: YES

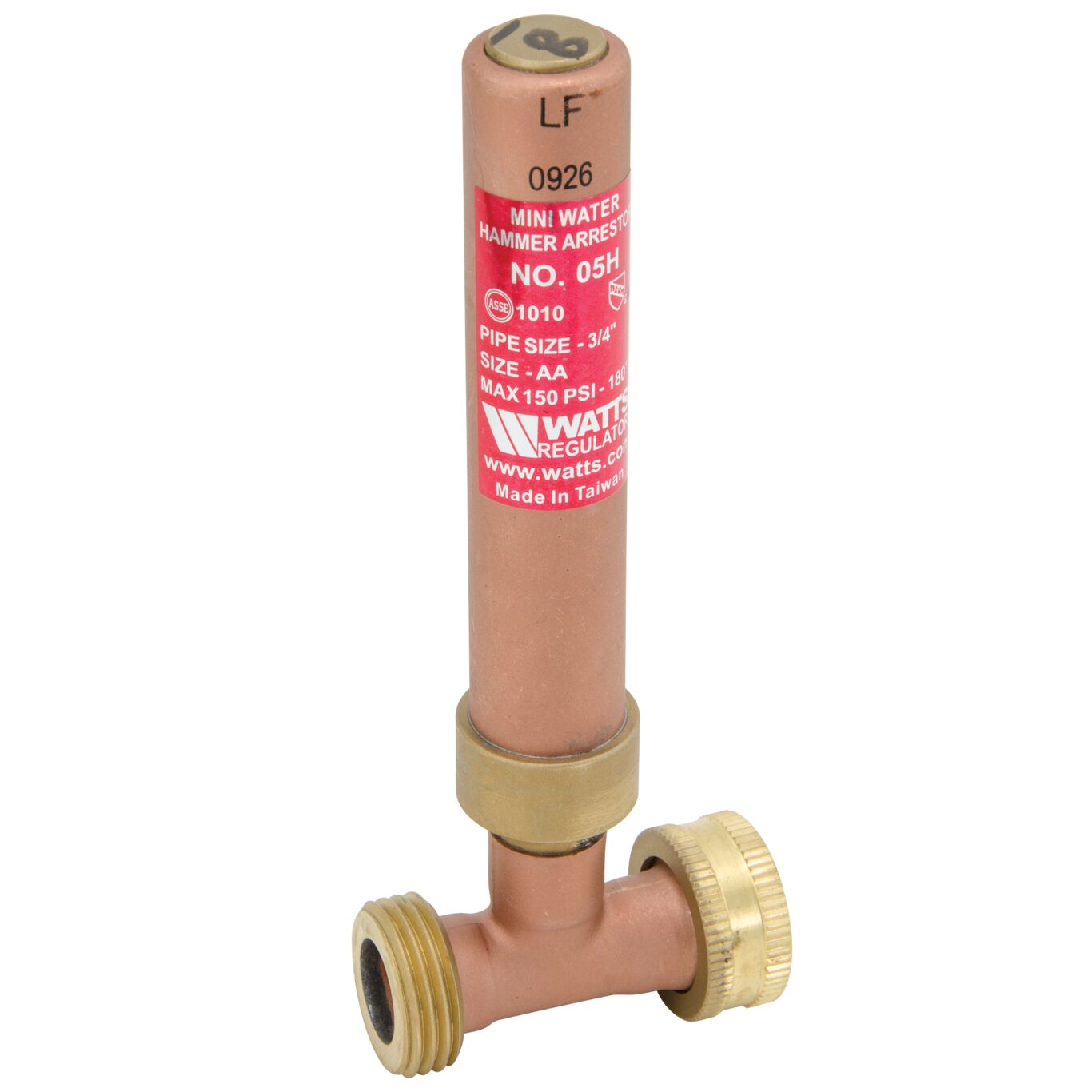

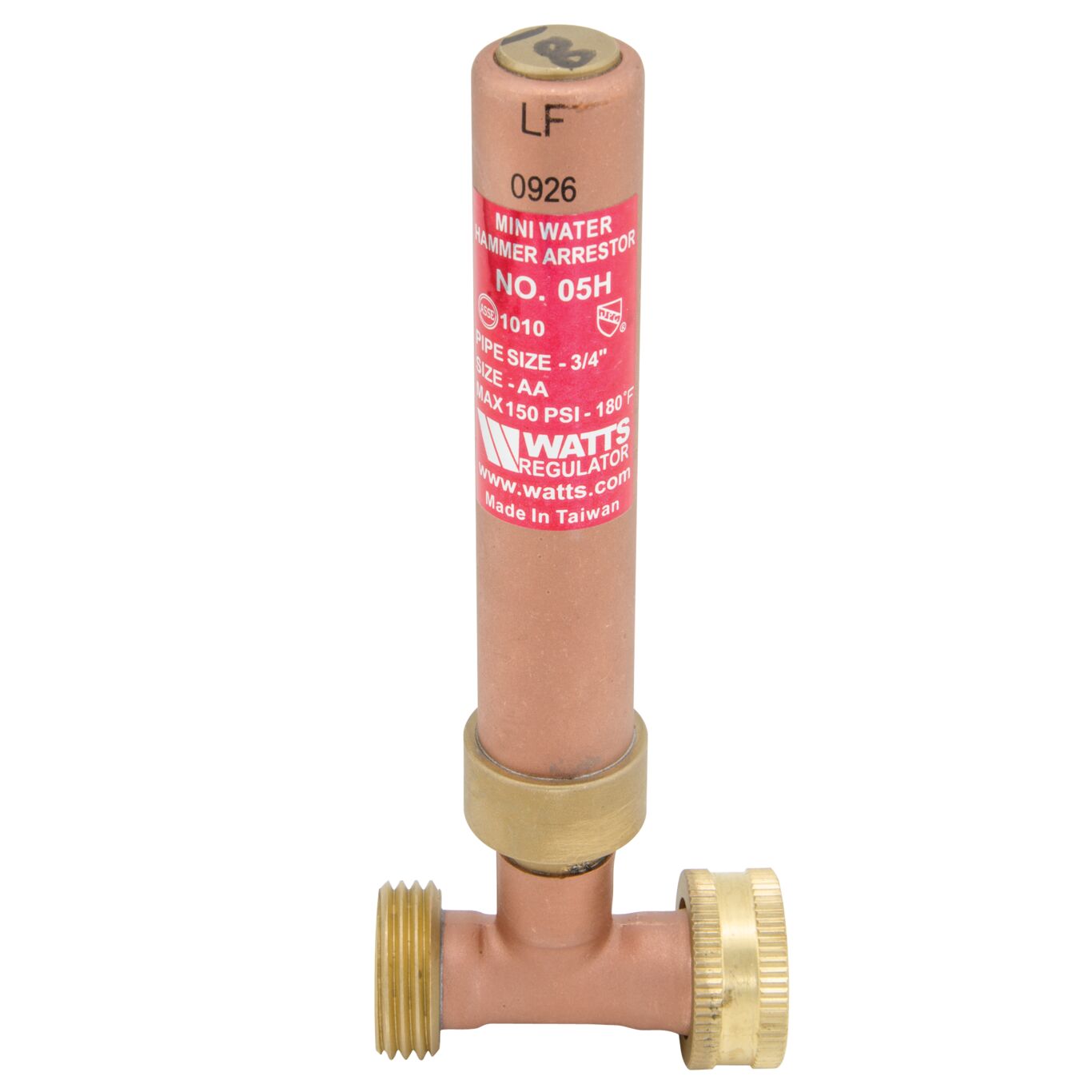

3/4 In Lead Free Mini Water Hammer Arrestor With Hose Fittings

This 3/4 inch lead free mini water hammer arrestor provides economical and effective single fixture protection used in residential water system applications such as dishwasher or washing machine applications. It is designed to provide automatic, repetitive control of water hammer in residential and light industrial applications and prevent water hammer conditions that are damaging to pipes and appliances. This is a factory air charged, permanently sealed unit with hose thread end connections and a straight body design. It should be installed as close to the shock source as possible with one unit each for the hot and cold water lines. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C) and the operating pressure is up to 150 psi (10.3 bar).

Product Features

  • Ideal for washing machines and dishwashers
  • ASSE approved and IAPMO listed
  • Can be installed vertically, horizontally or any angle in concealed locations without access panels
  • Factory air charged and is not rechargable
Air Precharge 60 PSI
Air Valve No
Body Material Copper
Brand Name Watts
Connection Size 3/4 IN
Connection Size-Metric 20 MM
Connection Type Male Threaded
Factory Set Pressure-PSI 60
Lead Free YES
Maximum Operating Temperature-Celsius 82.00
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.00
Maximum Working Pressure-PSI 150
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number LF05H 3/4
Part Number 0009852
Product Overall Height 6.375 IN
Product Overall Width 2 IN
Series LF05
Temperature Range 33 to 180 degree F
Thread Type GHT
