LF05H-M1 3/4

Part of the LF05 Series

Ordering Code: 0009853

UPC: 098268430141

Lead Free: YES

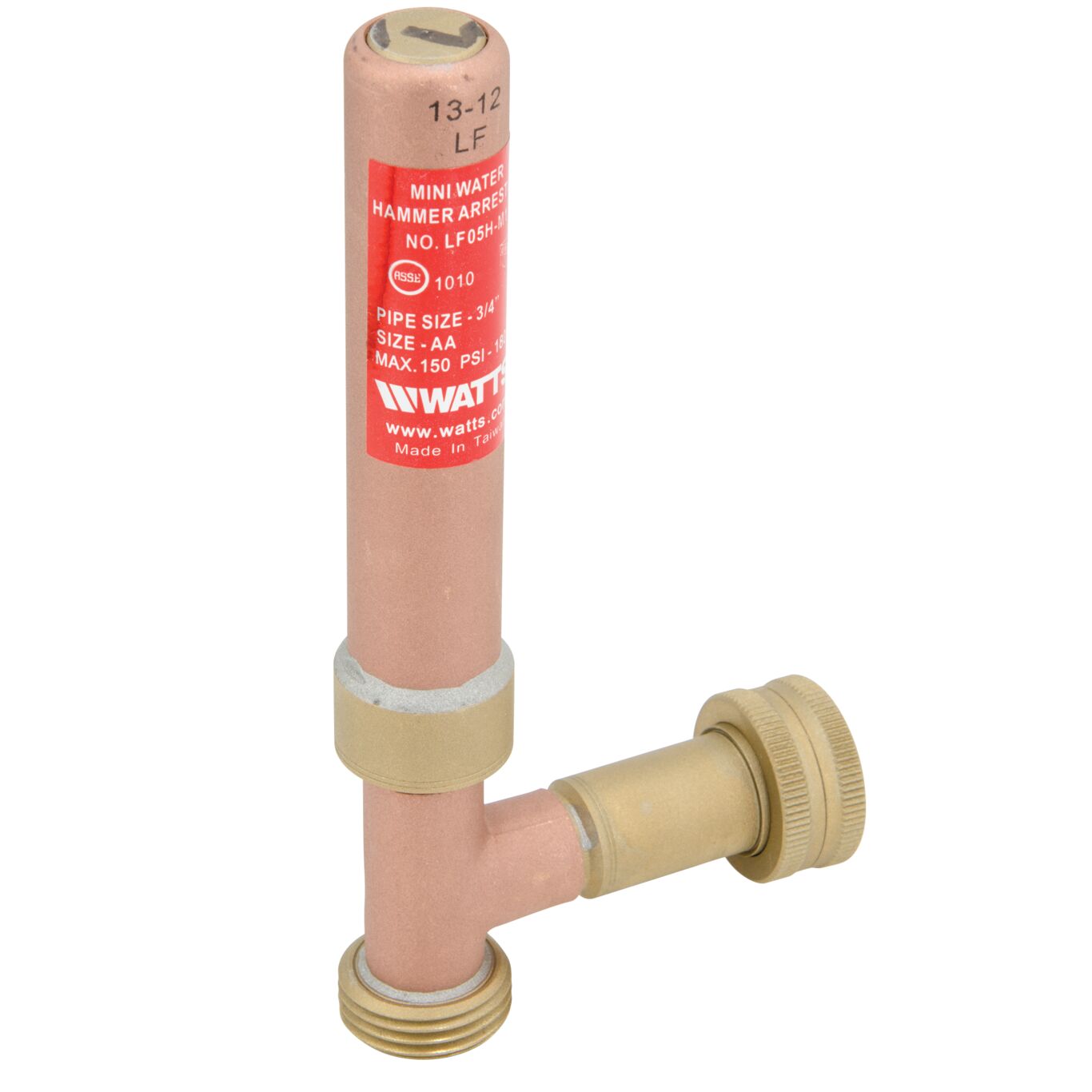

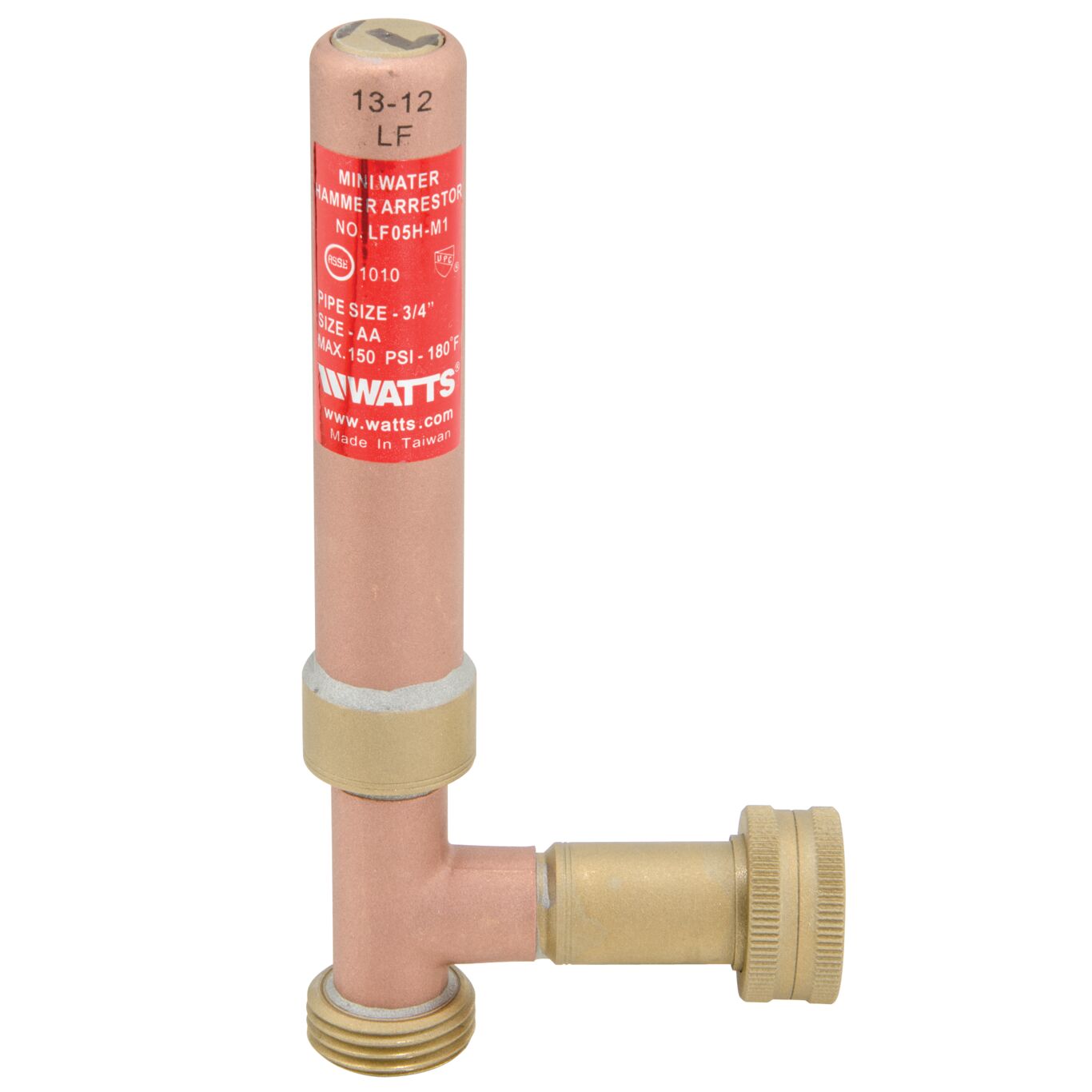

3/4 In Lead Free Mini Water Hammer Arrestor With Hose Fittings, Branch Tee

This lead free 3/4 inch mini water hammer arrestor provides economical and effective single fixture protection used in residential water system applications such as dishwasher or washing machine applications. It is designed to provide automatic, repetitive control of water hammer in residential and light industrial applications and prevent water hammer conditions that are damaging to pipes and appliances. This is a factory air charged, permanently sealed unit with hose thread end connections and a straight body design, branch tee. It should be installed as close to the shock source as possible with one unit each for the hot and cold water lines. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C) and the operating pressure is up to 150 PSI (10.3 BAR).

Product Features

  • Factory air charged and is not rechargable
  • Can be installed vertically, horizontally or any angle in concealed locations without access panels
  • Ideal for washing machines and dishwashers
  • ASSE approved and IAPMO listed
Specifications
Air Precharge 60 PSI
Air Valve No
Body Material Copper
BrandName Watts
Connection Size 3/4 IN
Connection Type Male Threaded
Factory Set Pressure-PSI 60
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.00
Maximum Working Pressure-PSI 150
Minimum Temperature-Fahrenheit 33
ModelNumber LF05H-M1 3/4
Part Number 0009853
Product Overall Height 6.6875 IN
Product Overall Width 3.1875 IN
Series LF05
Temperature Range 33 to 180 degree F
Thread Type GHT
