LF150HA 3/4

Part of the LF150A Series

Ordering Code: 0121229

UPC: 098268580280

Lead Free: YES

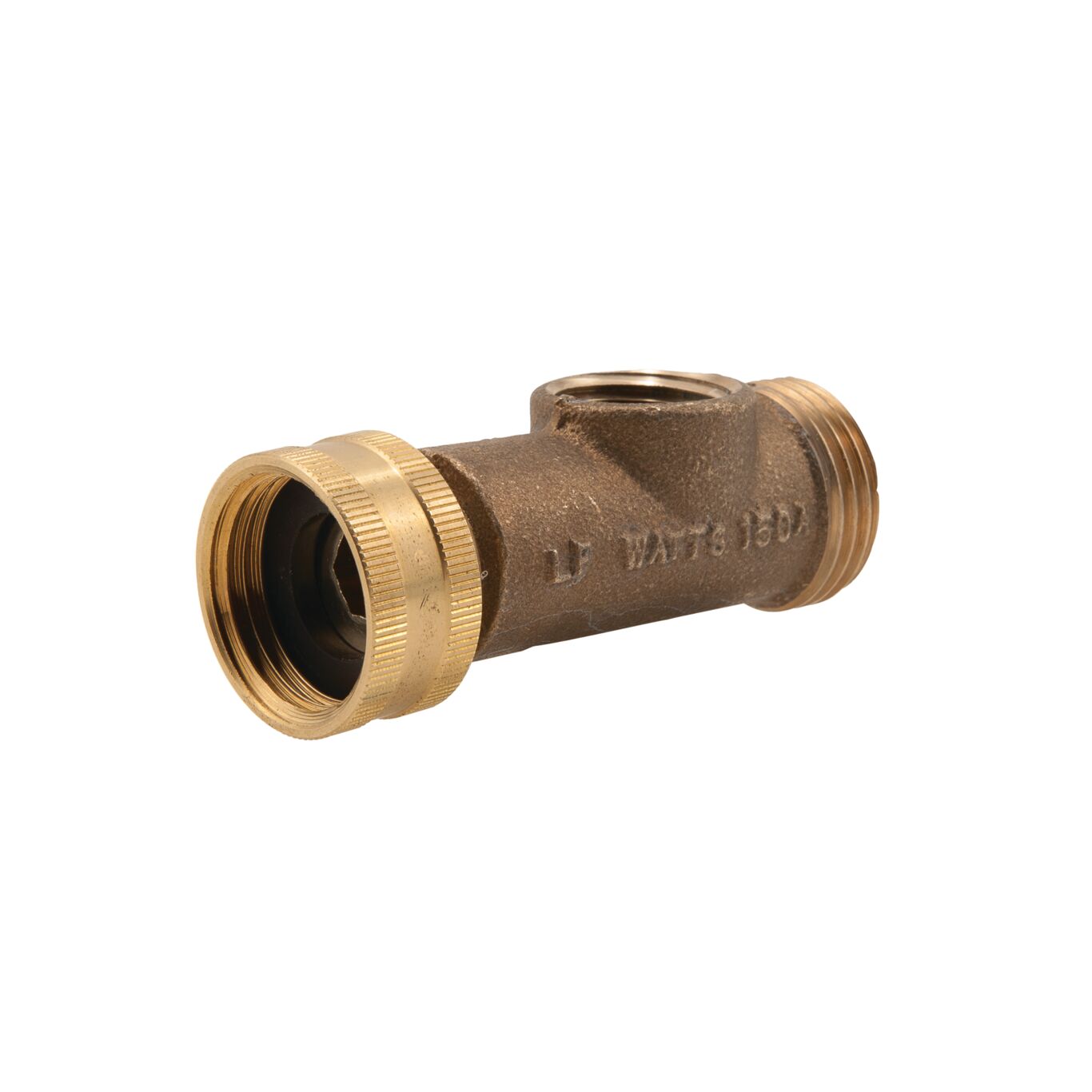

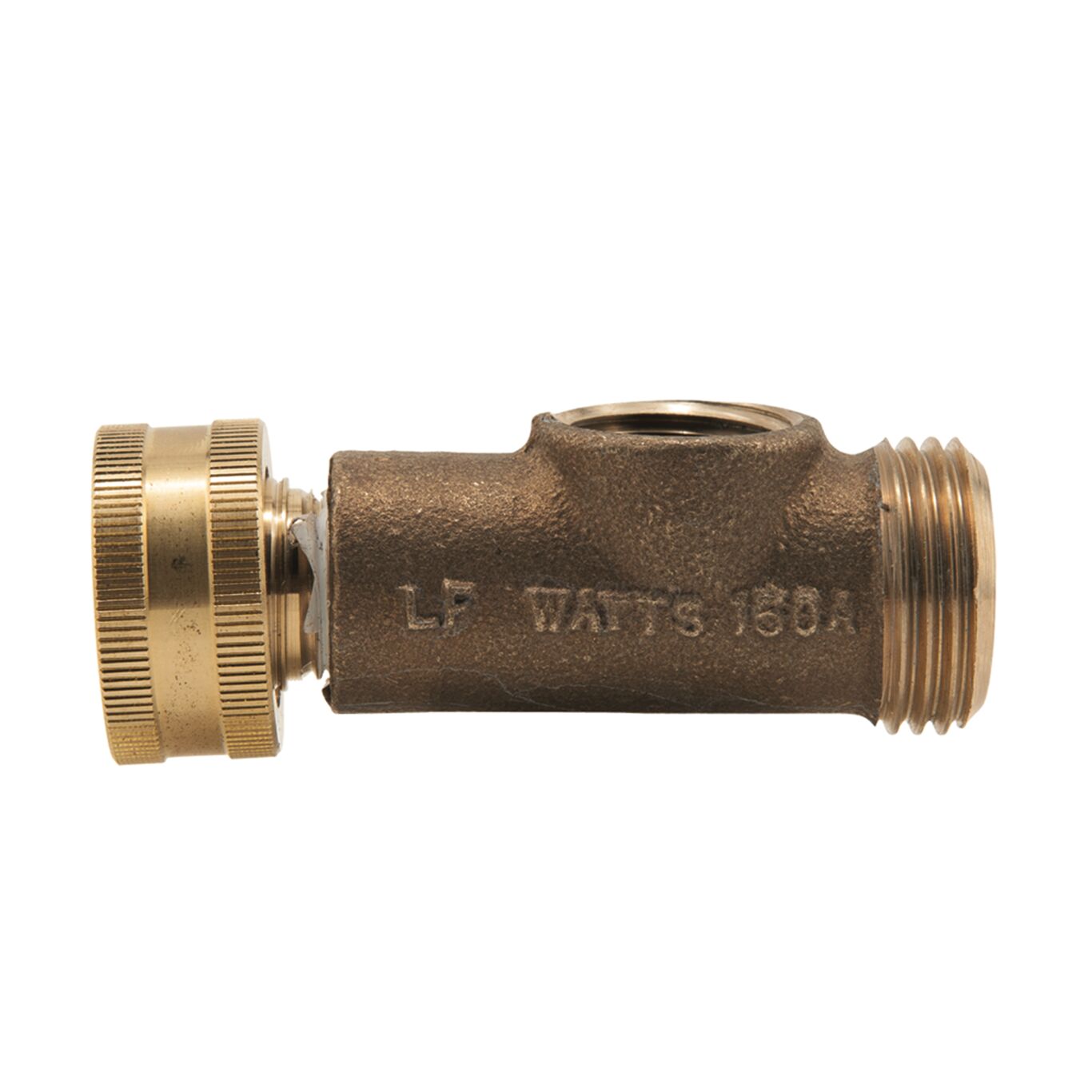

3/4 In Lead Free Hose Thread Adapter For Washing Machine To Install Water Hammer Arrestor

This 3/4 inch lead free hose thread adapter is used to install a water hammer arrestor directly to washing machine supply lines to control the water pressure shock and prevent water hammer conditions that are damaging to pipes and appliances. It is made of lead free cast brass and has a 1/2 inch threaded inlet for water hammer mounting and 3/4 inch hose thread fitting to connect to the washing machine supply lines.

Product Features

  • Direct mounting to a washing machine shutoff valve
  • Lead free cast brass construction
  • 3/4 IN hose thread end connection
  • For 1/2 IN shock arrestors
Air Precharge 30 PSI
Air Valve Yes
Body Material Stainless Steel
Brand Name Watts
Connection Size 3/4 IN
Connection Size-Metric 20 MM
Connection Type Male Hose Threaded
EANUCCCode 098268580280
Factory Set Pressure-PSI 30
Lead Free YES
Maximum Operating Temperature-Celsius 82.00
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Part Number 0121229
Product Overall Height 4.3125 IN
Product Overall Width 3.40625 IN
Series LF150A
Thread Type MHT
