LF15M2-A 1/2

Part of the LF15M2 Series

Ordering Code: 0750160

UPC: 098268526127

Lead Free: YES

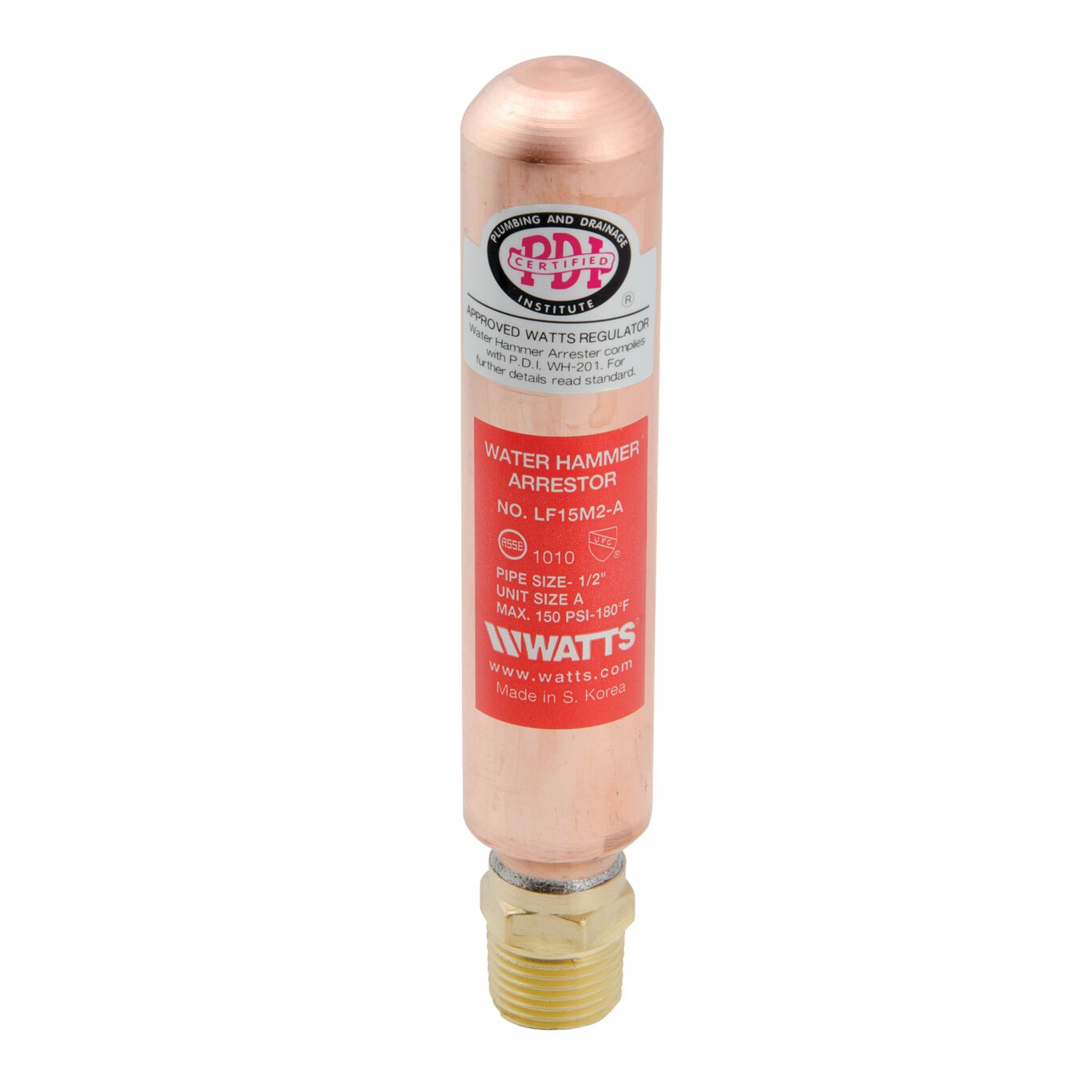

1/2 In Lead Free Water Hammer Arrestor With Npt Hex Adapter

This 1/2 inch, unit size A lead free water hammer arrestor is used in commercial and industrial applications to control water pressure shock and prevent water hammer conditions. It consists of a copper body with a lead free brass NPT threaded hex adapter, EPDM seals and O-rings, polypropylene piston, and cap. It is factory air charged at 60 psi (4.2 bar) and is permanently capped and epoxy sealed to absorb the shock and is not rechargeable. It may be installed in new or existing plumbing systems with a standard pipe tee vertically, horizontally or at any angle and is ideal for commercial dishwashers, washing machine, and quick-closing faucets applications. It is designed to operate on all domestic and commercial lines at 150 psi (10.3 bar) working pressure. This water hammer arrestor, size A is used to cover the required PDI listed 1 to 11 fixture units.

Product Features

  • Factory air charged at 60 psi (4.2 bar)and is not rechargeable in the field
  • Lead free brass NPT hex adapter for easy installation
  • May be installed in concealed locations without access panels
  • ASSE, ANSI and PDI approved and UPC listed
Air Precharge 60 PSI
Air Valve No
Body Material Copper
Brand Name Watts
Connection Size 1/2 IN
Connection Size-Metric 15 MM
Connection Type Female Threaded
Factory Set Pressure-PSI 60
Lead Free YES
Maximum Operating Temperature-Celsius 82.00
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.00
Maximum Working Pressure-PSI 150
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number LF15M2-A 1/2
Number of Fixture Units 1 to 11
Part Number 0750160
Product Overall Height 5.9375 IN
Product Overall Width 1.125 IN
Series LF15M2
Temperature Range 33 to 180 degree F
Thread Type NPT
