F127SS-208 3

Part of the F127SS Series

Ordering Code: 0828292

UPC: 098268095029

Lead Free: Not In Scope

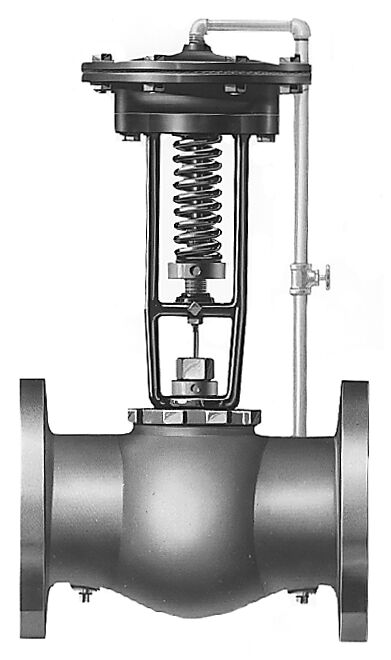

3 In Cast Iron Process Steam Adjustable Pressure Regulator, Flanged Connections, Model 208

This 3 inch process steam pressure regulator, model 208, is a single seated, direct acting, diaphragm type regulator. It is ideal for institutional, industrial, and commercial applications to regulate steam pressure in the mainline and high capacity process service heating applications. It features a cast iron body, flanged end connections and stainless steel diaphragm, seat and disc internals to extend the service life. The springs and diaphragm chamber assembly is easily changed and the valve is simple to adjust when the need to quickly restore the regulator service is required. The maximum working initial pressures is up to 125 psi (8.6 bar).

Product Features

  • Engineered and recommended for mainline and high capacity process service heating applications
  • Valve is simple to adjust
  • Quickly and easily serviceable in line without special tools
  • Maximum working initial pressure up to 125 psi (8.6 bar)
  • Replaceable springs and diaphragm
  • Stainless steel single seated
  • Direct acting diaphragm
  • Cast iron body with flanged connections
  • Standardly furnished with stainless steel valve disc
Body Material Iron
Brand Name Watts
Gauge Option No Gauge
Inlet Connection Size 3 IN
Inlet Connection Type Flanged Joint
Lead Free Not In Scope
Maximum Working Pressure-BAR 17.20
Maximum Working Pressure-PSI 250
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 3 IN
Outlet Connection Type Flanged Joint
Valve Style Standard
