560
Discontinued
Mini Brass Water Pressure Regulators
560
Discontinued
Mini Brass Water Pressure Regulators

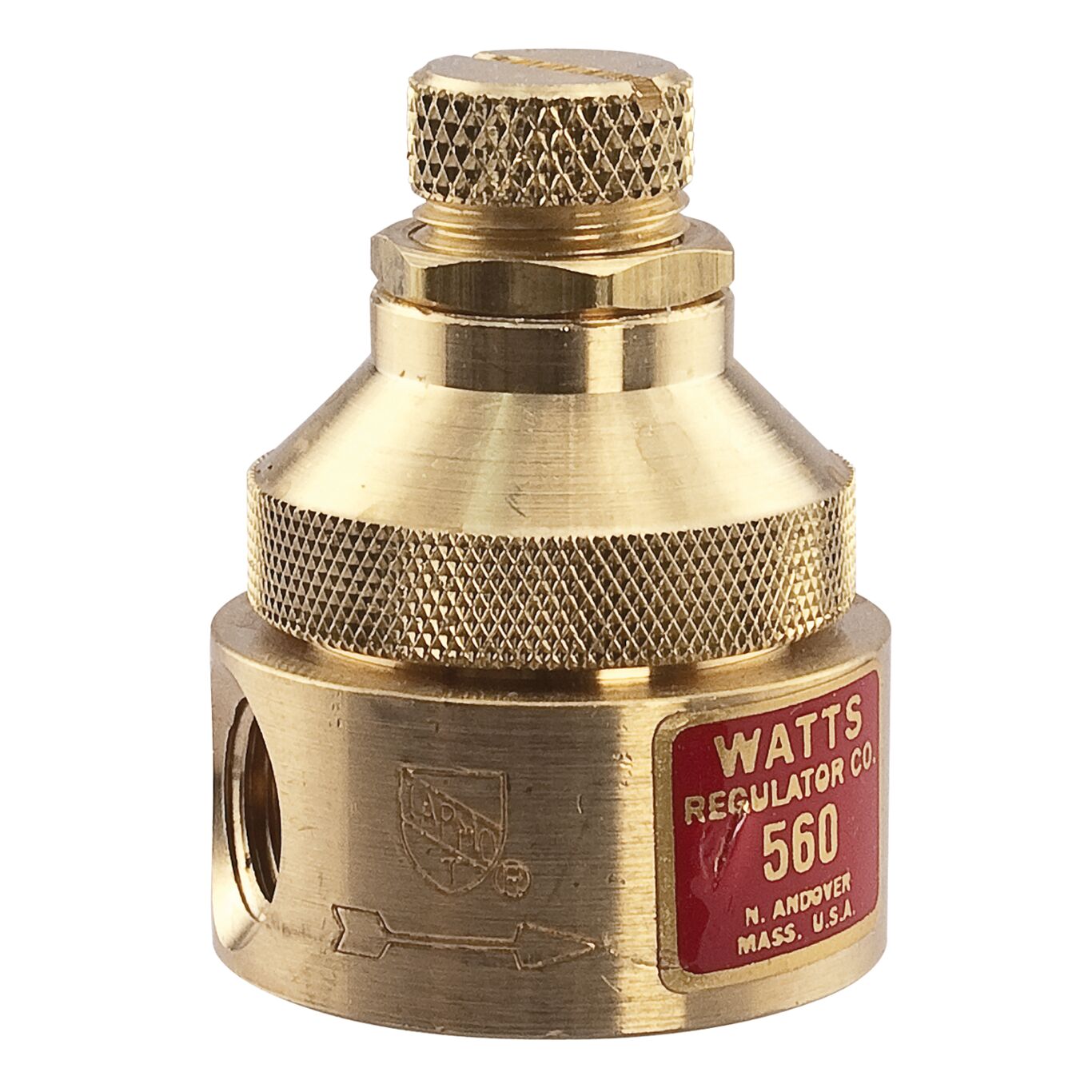

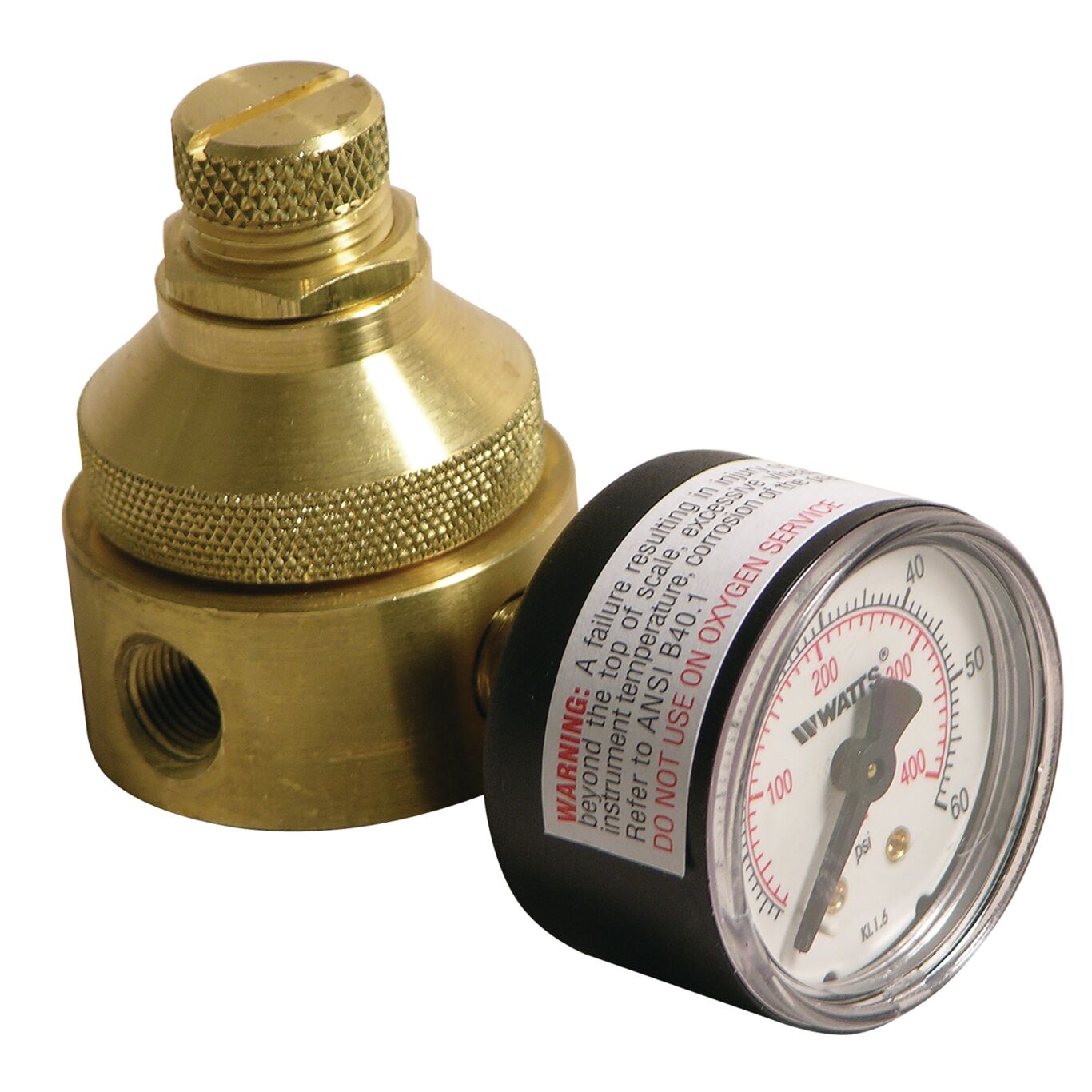

Series 560 Mini Water Pressure Regulators are used in industrial process applications to regulate water pressure in systems requiring a small economical regulator package. It consists of a brass body construction with female threaded inlet and outlet connections, 1/8 in. female side tapping (plugged) for gauge, stainless steel stem and spring, Buna-N seat and diaphragm, and heavy duty adjusting screw (slotted and knurled). Series 560 has an oversized orifice and is ideal for use in miscellaneous plumbing applications and OEM equipment such as travel trailers. Maximum Working Pressure: 300psi (21 bar).
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 560
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

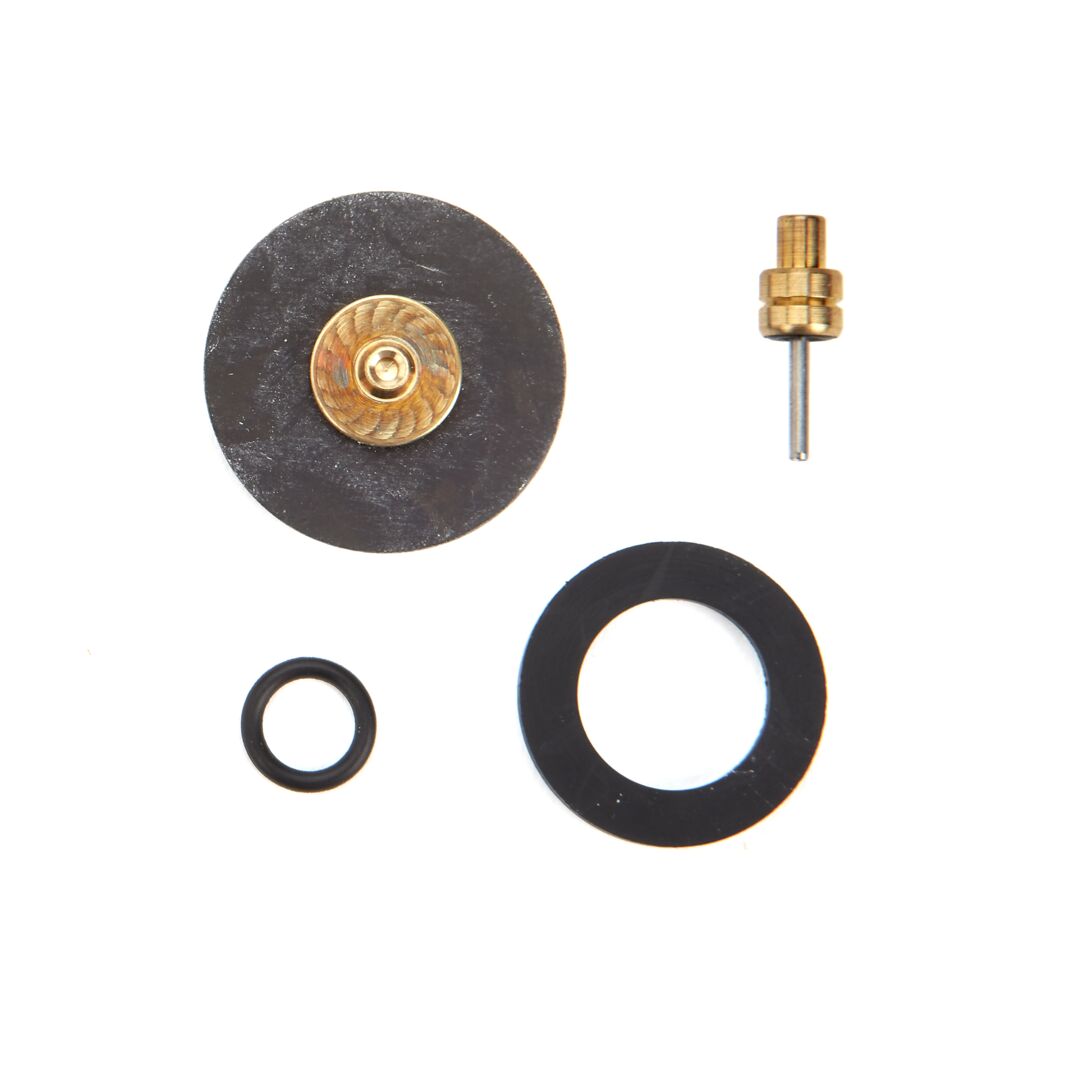

LFRK H560 1/8 - 3/4
Repair Kit |
Series 560 and H560 Mini Water Pressure Regulator</br></br> |
Diaphragm Assembly, Disc Assembly And Bottom Plug O-Ring</br> |
