H560-0-60 3/4

Discontinued - Replaced By: LFH560 3/4

Part of the H560 Series

Ordering Code: 0355010

UPC: 098268017977

Lead Free Model Available

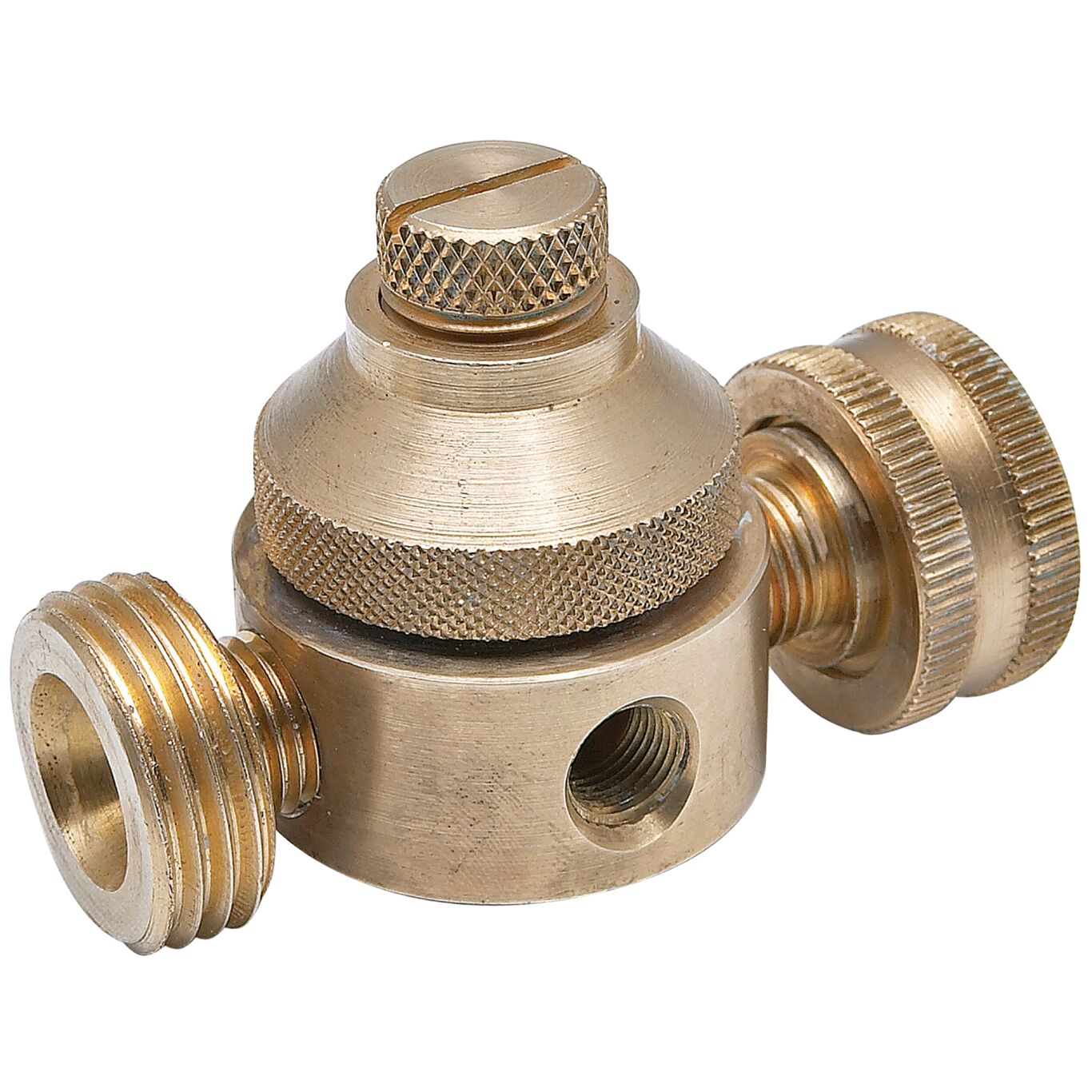

3/4 In Mini Water Pressure Regulator, Female Hose X Male Hose, 10-60 psi

This 3/4 inch mini water pressure regulator is designed to reduce incoming water pressure to protect plumbing system components and reduce water consumption. It is used in OEM applications to regulate water pressure in systems where a small economical package is required such as grid systems and recreational vehicles. It consists of a rugged brass body, female hose inlet by male hose outlet threaded connections, plugged gauge port, Buna-N seat and diaphragm, oversized orifice, stainless steel stem and spring, and a heavy duty slotted and knurled adjusting screw. The adjustable reduced pressure range is 10 to 60 psi (0.68 to 4.13 bar) and is factory set at 40 psi.

Product Features

  • Oversized orifice
  • Female hose inlet by male hose outlet connections
  • Rugged brass body
  • Heavy duty slotted and knurled adjusting screw
  • Stainless steel stem and spring
  • Temperature range is 33 F to 140 degrees F (0.6 C to 60 degrees C)
  • Maximum working pressure is 150 psi (10.3 bar)
Adjustable Reduced Pressure Range 10 to 60
Adjustable Reduced Pressure Range-BAR 0.7 to 4.1
Body Material Brass
Brand Name Watts
Corrosion Resistant Coating No
Disc Material Buna-N
Gauge Option No Gauge
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Thread Type GHT
Lead Free NO
Maximum Operating Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number H560-0-60 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type GHT
Part Number 0355010
Series H560
Standard Reduced Pressure Setting-BAR 2.80
Standard Reduced Pressure Setting-PSI 40
Strainer No
Strainer Material Does Not Apply To Product
Thermal Expansion Bypass No
Type Kit
Valve Style Standard
