LF215M1 0-50 3/8

Part of the LF215 Series

Ordering Code: 0009842

UPC: 098268428995

Lead Free: YES

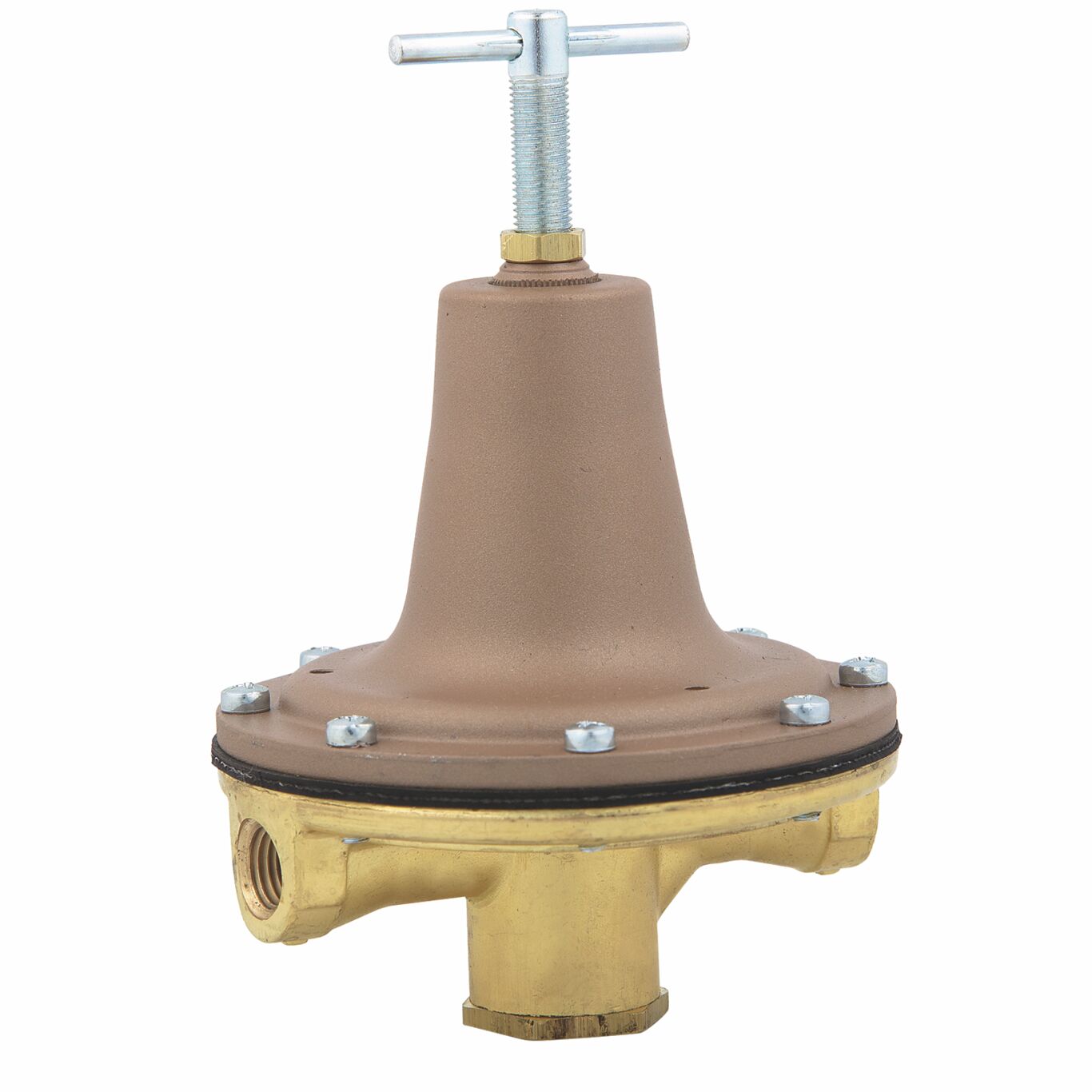

3/8 In Lead Free Precision Low Pressure Regulator, Set At 15 psi

This 3/8 inch super sensitive lead free water pressure regulator is designed to meet low water pressure precision requirements. It is used in applications requiring low-pressure, super-sensitive regulation in systems using water or No. 2 fuel oil. The high ratio of the diaphragm to the orifice provides excellent performance and stability at a low reduced pressure. It is ideally suited for water requirements up to 2.5 GPM (9.5 LPM) and is suitable for the water pressure supply to the wall attachment of fluidic devices. It consists of a lead free brass body with a tee handle, female NPT connections, replaceable stainless steel seat, large diaphragm, and 30 mesh stainless steel strainer. The reduced water pressure range is 0 to 50 psi (0 to 345 kPa) with the water pressure set at 15 psi (103 kPa). The temperature range is 0 to 120 degrees F (-18 to 49 degrees C).

Product Features

  • Lead free brass body
  • Tee handle adjustment
  • Replaceable stainless steel seat
  • Large diaphragm provides exceptional performance, particularly under 10 psi (69 kPa)
Body Material Brass
Brand Name Watts
Corrosion Resistant Coating No
Disc Material Buna-N
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 3/8 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 120
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 0
Model Number LF215M1 0-50 3/8
Outlet Connection Size 3/8 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009842
Series LF215
Standard Reduced Pressure Setting-BAR 1.03
Standard Reduced Pressure Setting-PSI 15
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass No
Trim Material Does Not Apply To Product
Valve Style Standard
