LF25AUB-HP-Z3 2

Part of the LF25AUB-Z3 Series

Ordering Code: 0009449

UPC: 098268332056

Lead Free: YES

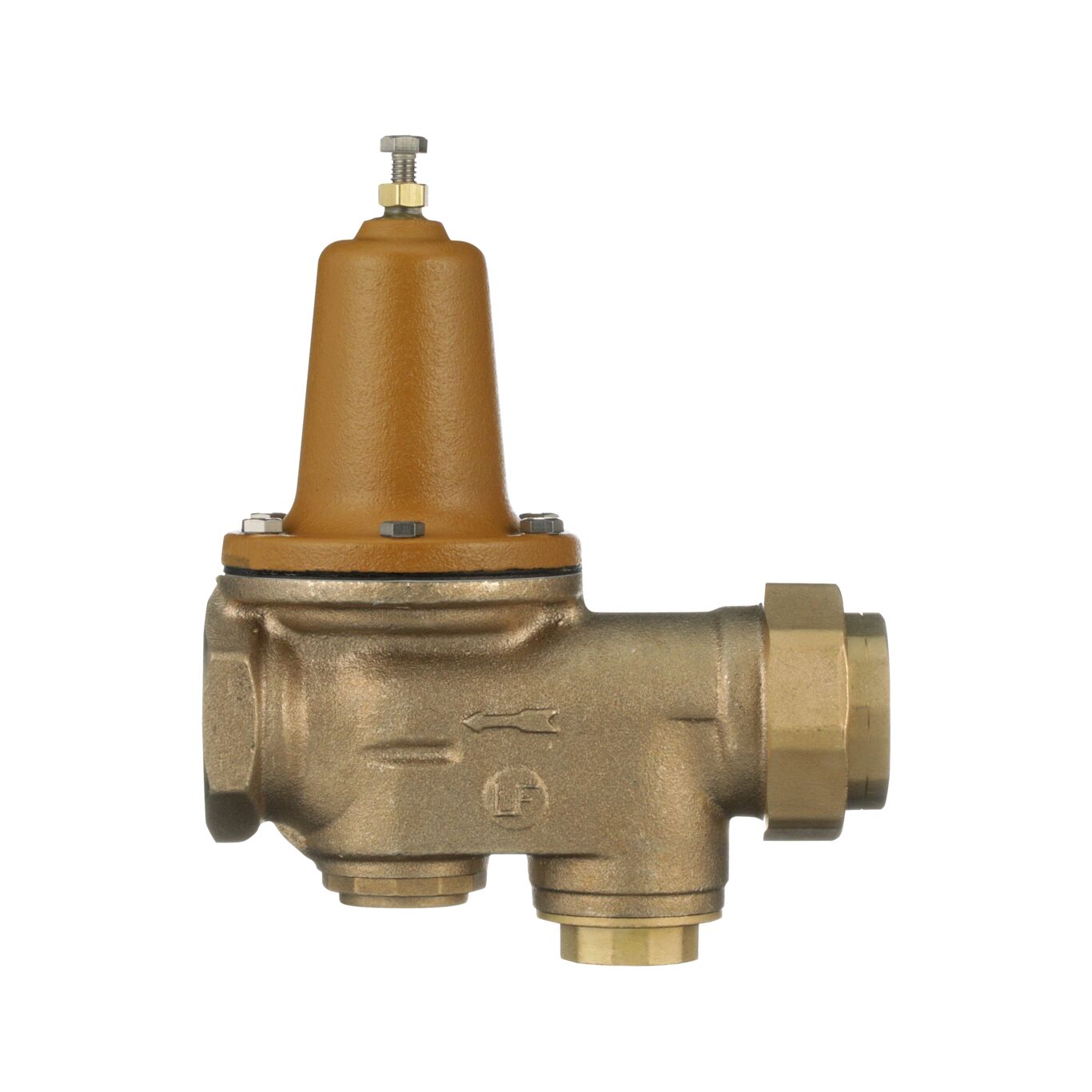

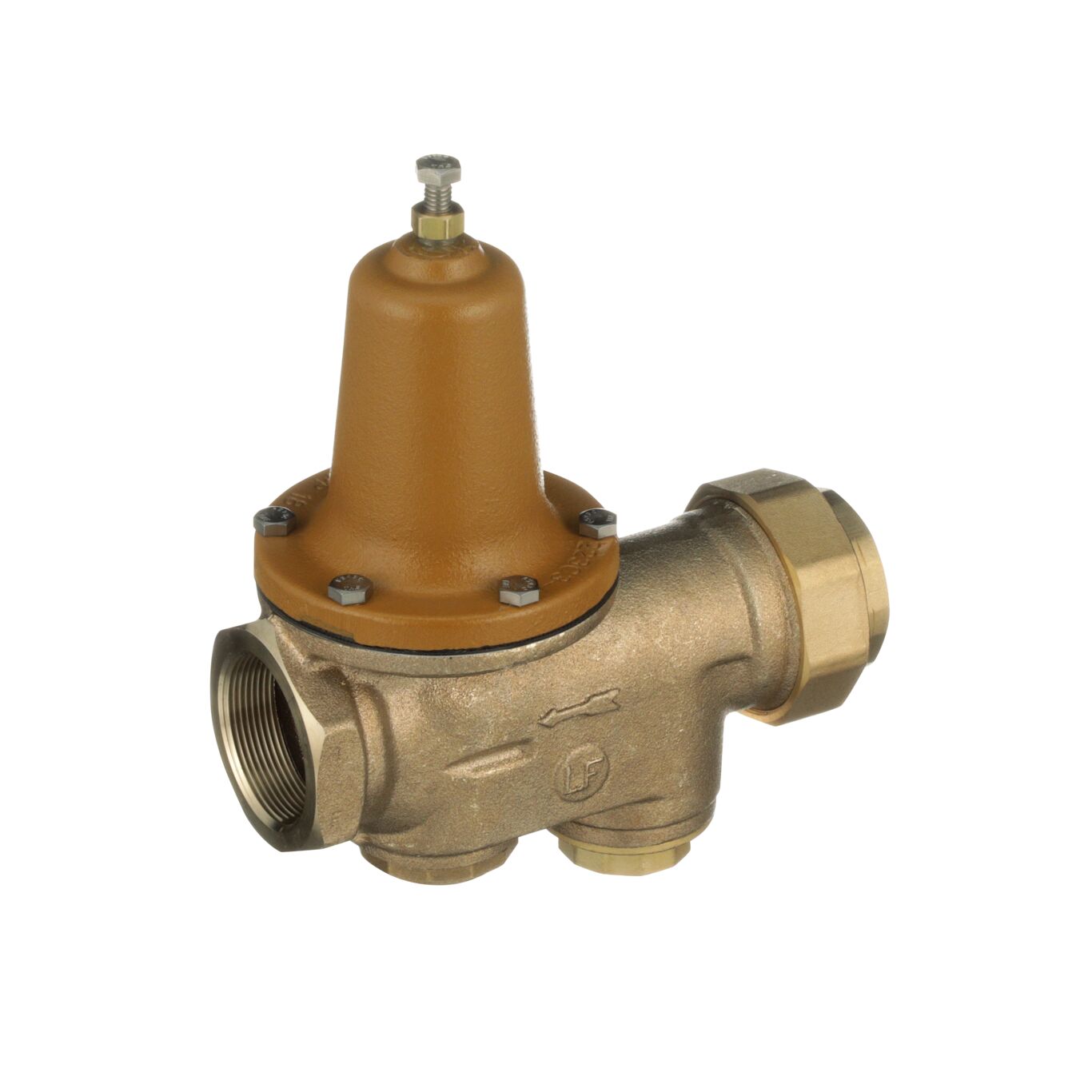

2 IN Lead Free Water Pressure Reducing Valve, NPT Female Union x NPT Female, SS Seat, High Range 75-125 psi

  • High pressure applications
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
Specifications
Adjustable Reduced Pressure Range 75 to 125
Adjustable Reduced Pressure Range-BAR 5.2 to 8.6
Body Material Lead Free Copper Silicon Alloy
Brand Watts
Buy American Act Compliant YES
Corrosion Resistant Coating No
Disc Material EPDM
EAN 098268332056
Gauge Option No Gauge
High Pressure Reduced Pressure Range 75 to 125 PSI
High Pressure Reduced Pressure Setting 90 PSI
Inlet Connection Size 2 IN
Inlet Connection Type Union Joint
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009449
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Does Not Apply To Product
Valve Style Standard
