LF25AUB-LU-Z3 3/4 Watts

Part of the LF25AUB-Z3 Series

Ordering Code: 0009510

UPC: 098268098112

Lead Free: YES

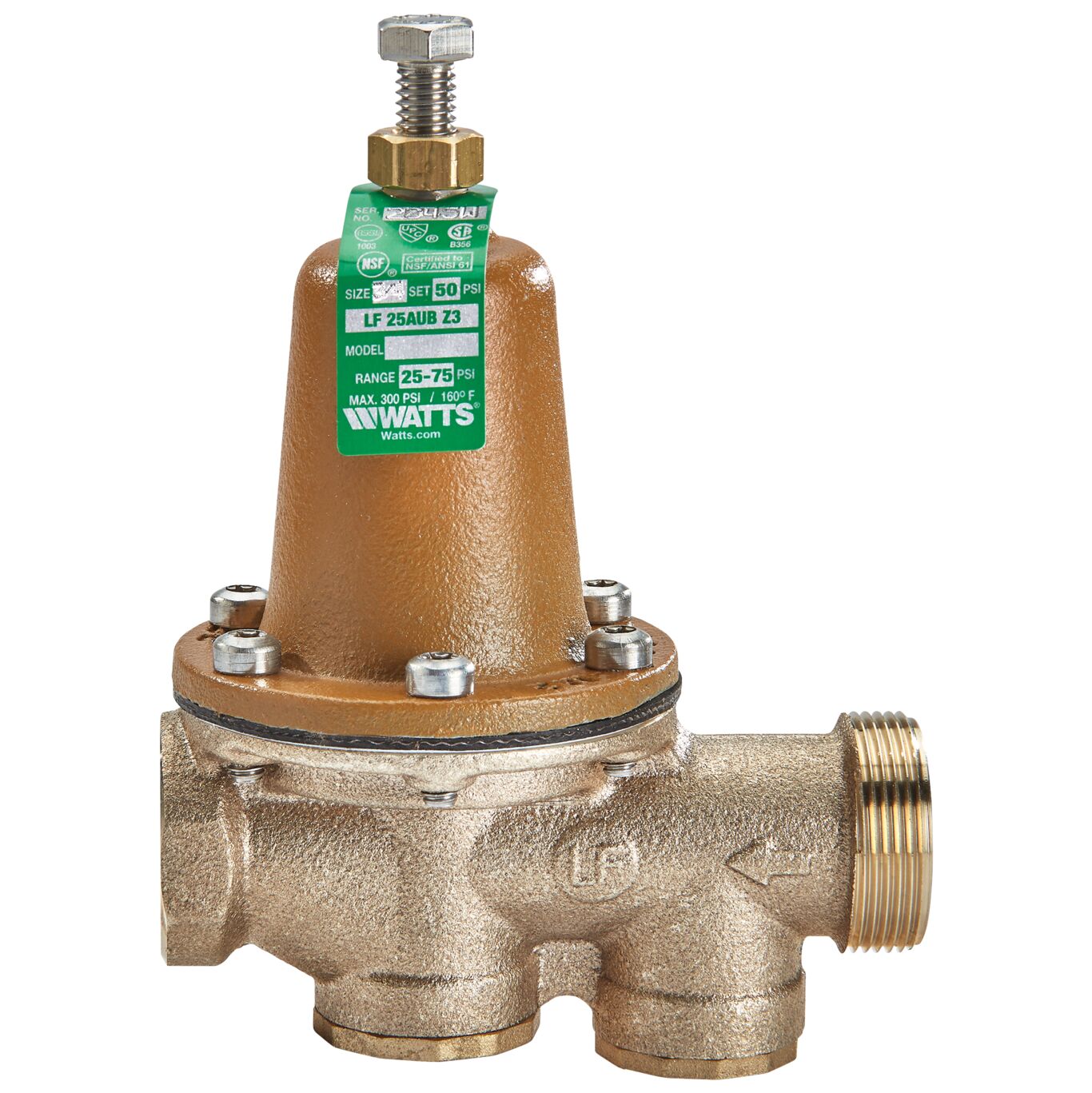

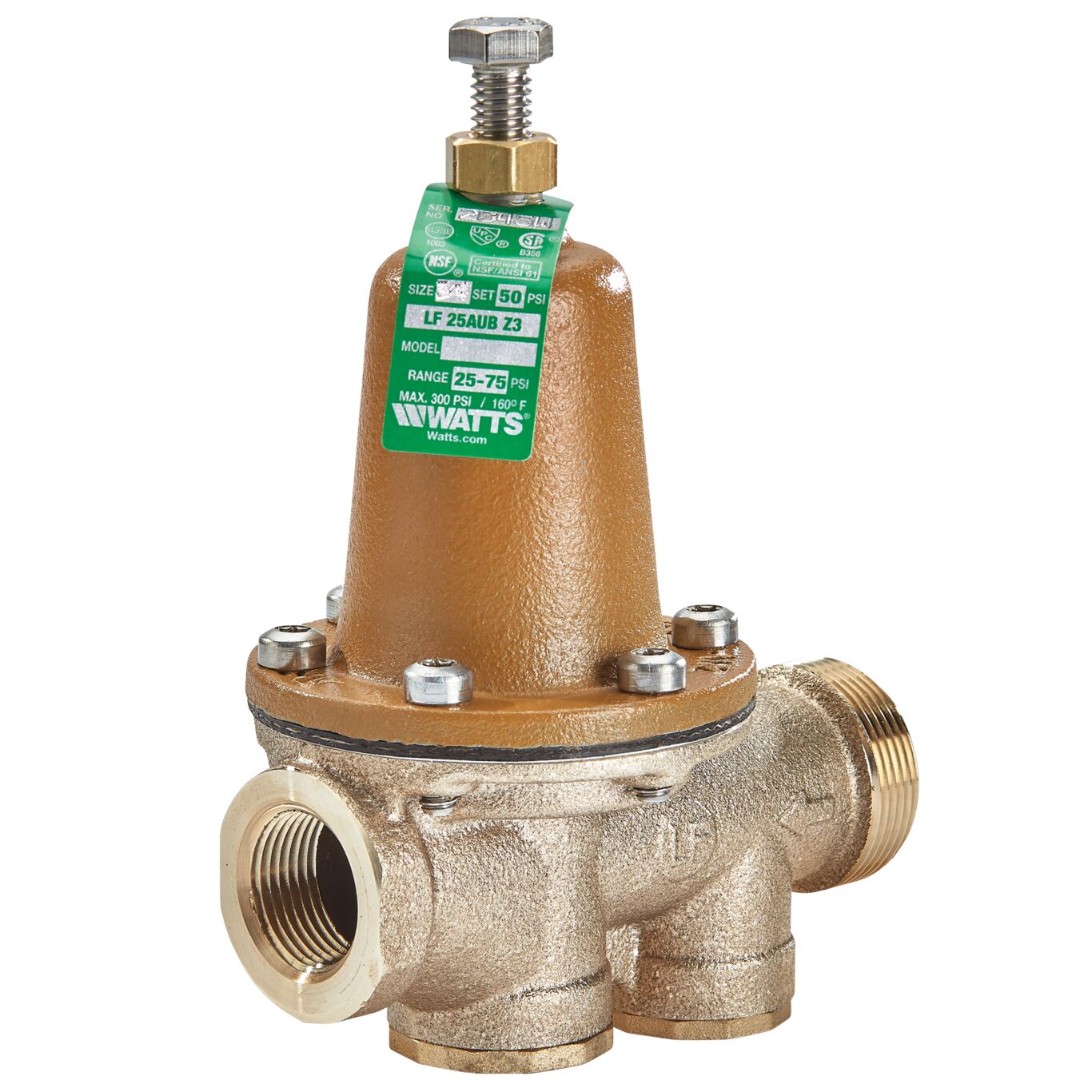

3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female, Without Tailpieces

This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, female NPT connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa).

Product Features

  • Bypass feature controls thermal expansion pressure
  • Integral stainless steel strainer removable for cleaning
  • Adjustable reduced pressure setting
  • Replaceable seat module
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Cast Copper Silicon Alloy
BrandName Watts
Corrosion Resistant Coating Yes
Disc Material EPDM
Gauge Option No Gauge
Inlet Connection Size 3/4 IN
Inlet Connection Type Union Joint
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 160
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LF25AUB-LU-Z3 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0009510
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Valve Style Standard
