LF25AUB-S-G-HP-Z3 2

Part of the LF25AUB-Z3 Series

Ordering Code: 0009459

UPC: 098268332179

Lead Free: YES

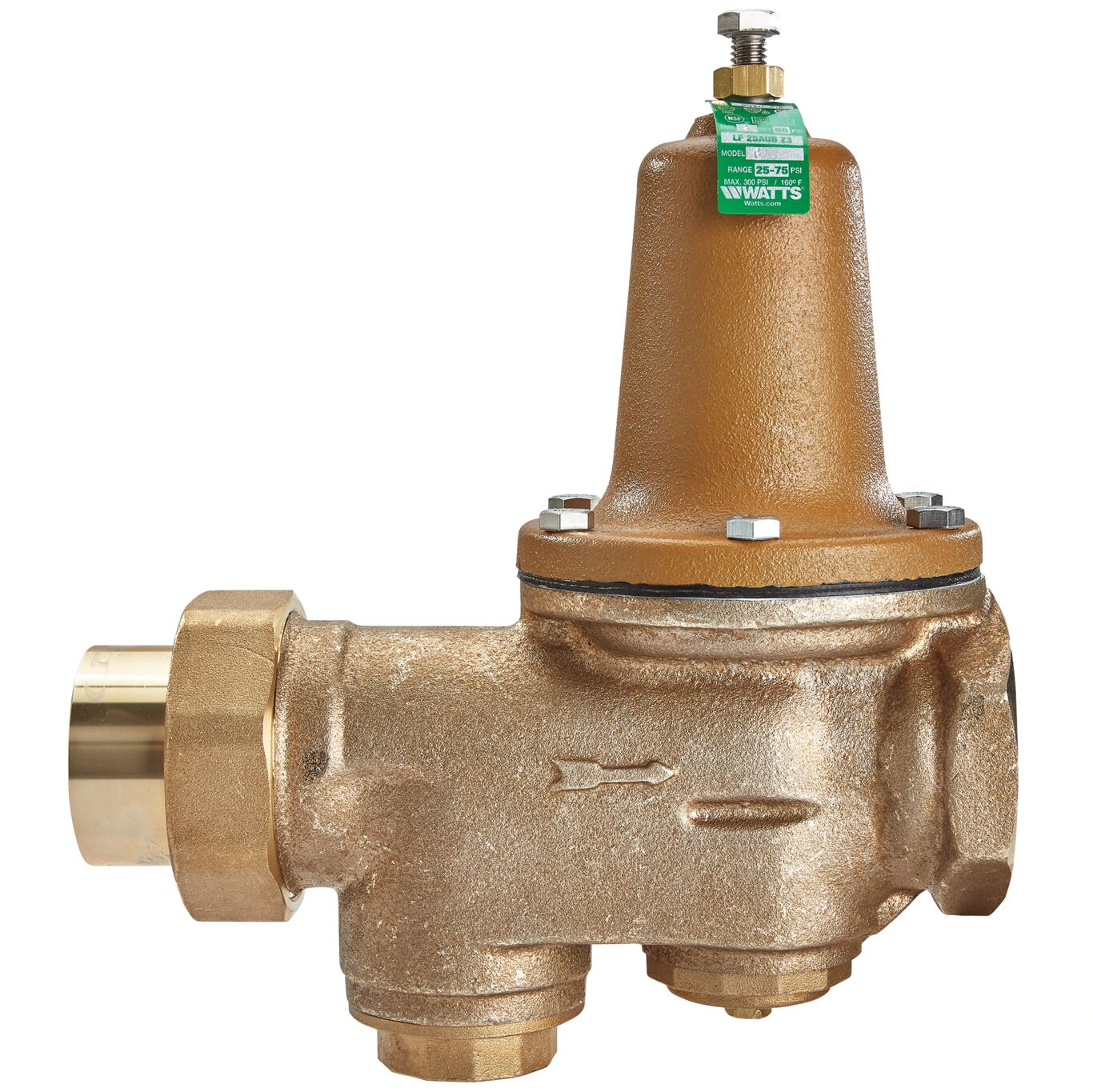

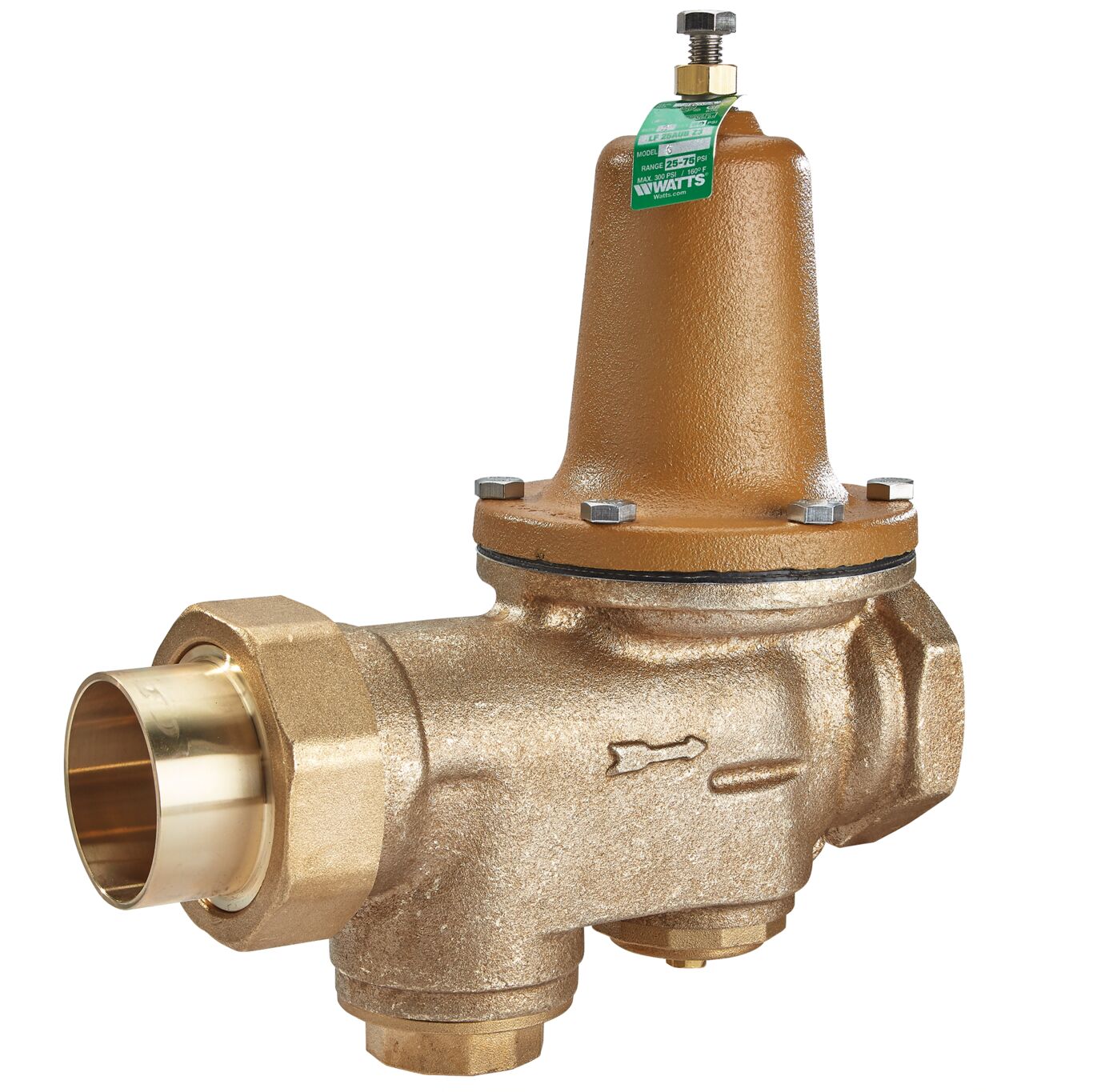

2 In Lead Free Water Pressure Reducing Valve, Solder X Npt Female, Ss Seat, Gauge Tapping, High Range 75-125 Psi

This 2 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, solder union inlet by NPT female outlet connections, stainless steel strainer, a thermal expansion bypass, and a gauge port tapping furnished with a pipe plug. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 75 to 125 PSI (5.2 to 8.6 bar).

Product Features

  • Sealed spring cage with stainless steel cage screws
  • Gauge port tapping allows downstream pressure measurements
  • Replaceable seat
  • Integral stainless steel strainer removable for cleaning
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Brass
BrandName Watts
Corrosion Resistant Coating Yes
Disc Material Reinforced EPDM
Gauge Option Gauge Tapping
High Pressure Reduced Pressure Range 75 to 100 PSI
High Pressure Reduced Pressure Setting 75 PSI
Inlet Connection Size 2 IN
Inlet Connection Type Union Solder
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 160
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LF25AUB-S-G-HP-Z3 2
Outlet Connection Size 2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009459
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Valve Style Standard
