LF25AUB-Z3 1 1/2

Part of the LF25AUB-Z3 Series

Ordering Code: 0009431

UPC: 098268331868

Lead Free: YES

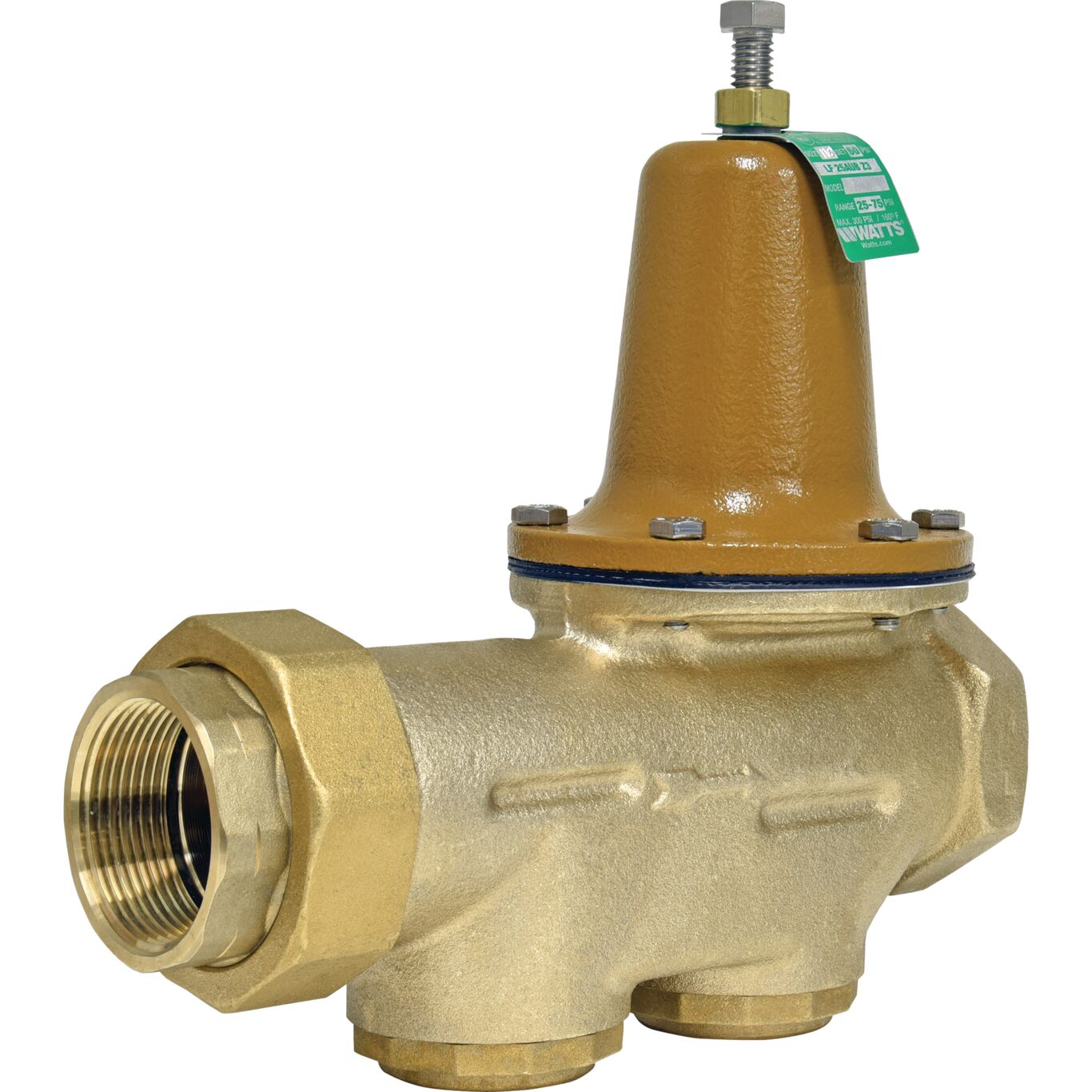

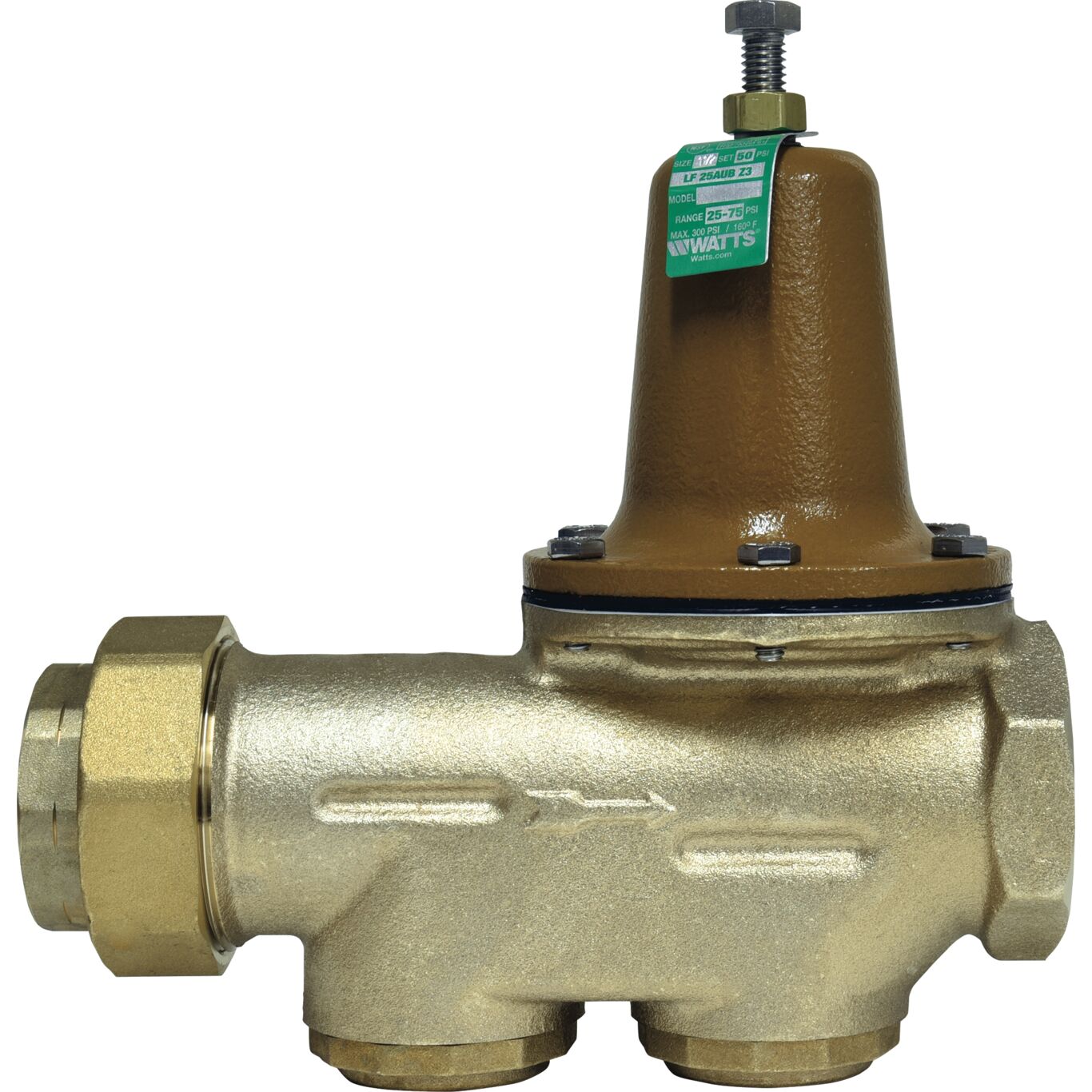

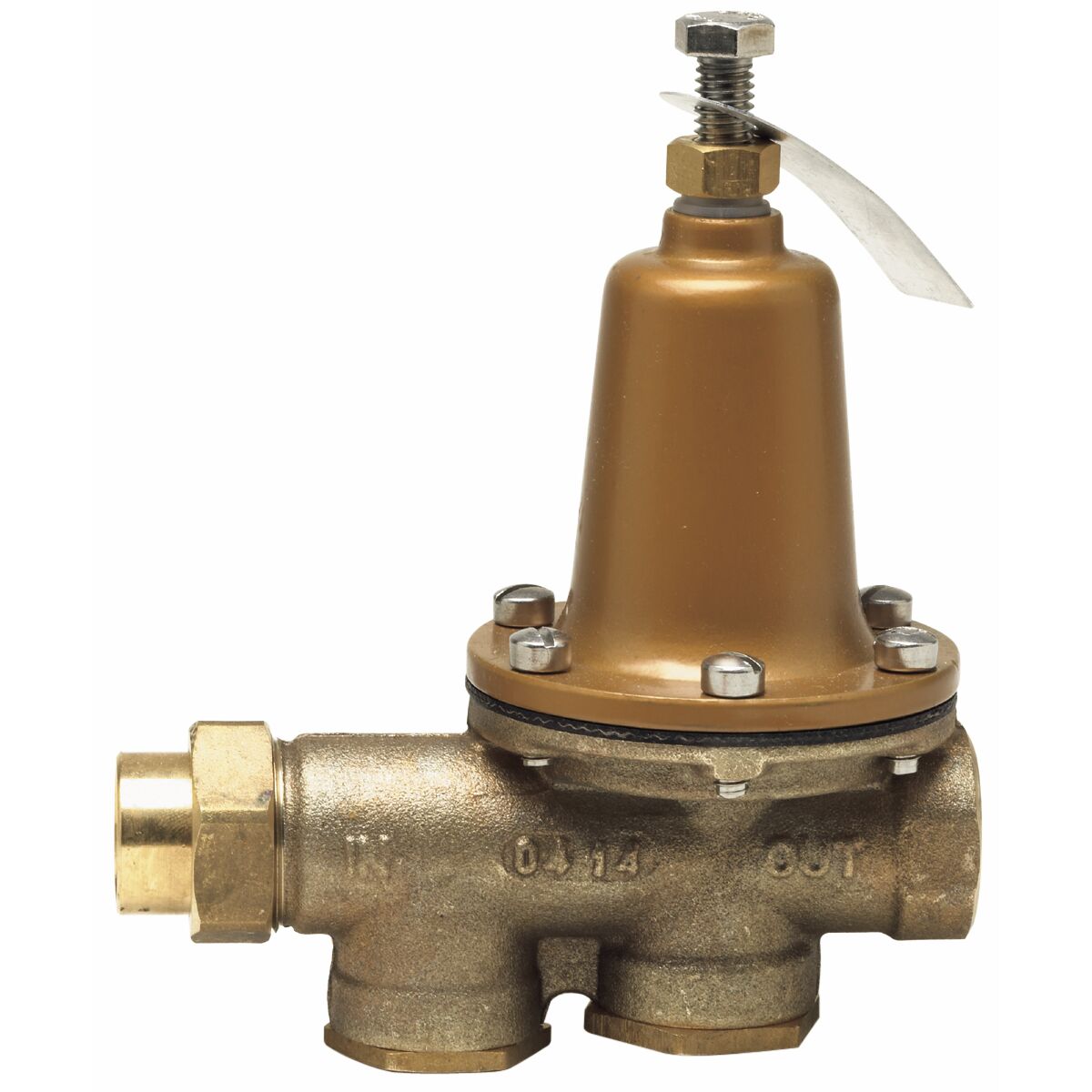

1 1/2 In Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female, Ss Seat, Adjustable 25-75 Psi

This 1 1/2 IN lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
  • Lead free construction
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Copper Silicon Alloy
BrandName Watts
Corrosion Resistant Coating Yes
Disc Material EPDM
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1 1/2 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree YES
Maximum Operating Temperature-Fahrenheit 160
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LF25AUB-Z3 1 1/2
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009431
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Stainless Steel
Valve Style Standard
