LF25AUB-Z3 1 1/4

Part of the LF25AUB-Z3 Series

Ordering Code: 0009392

UPC: 098268331431

Lead Free: YES

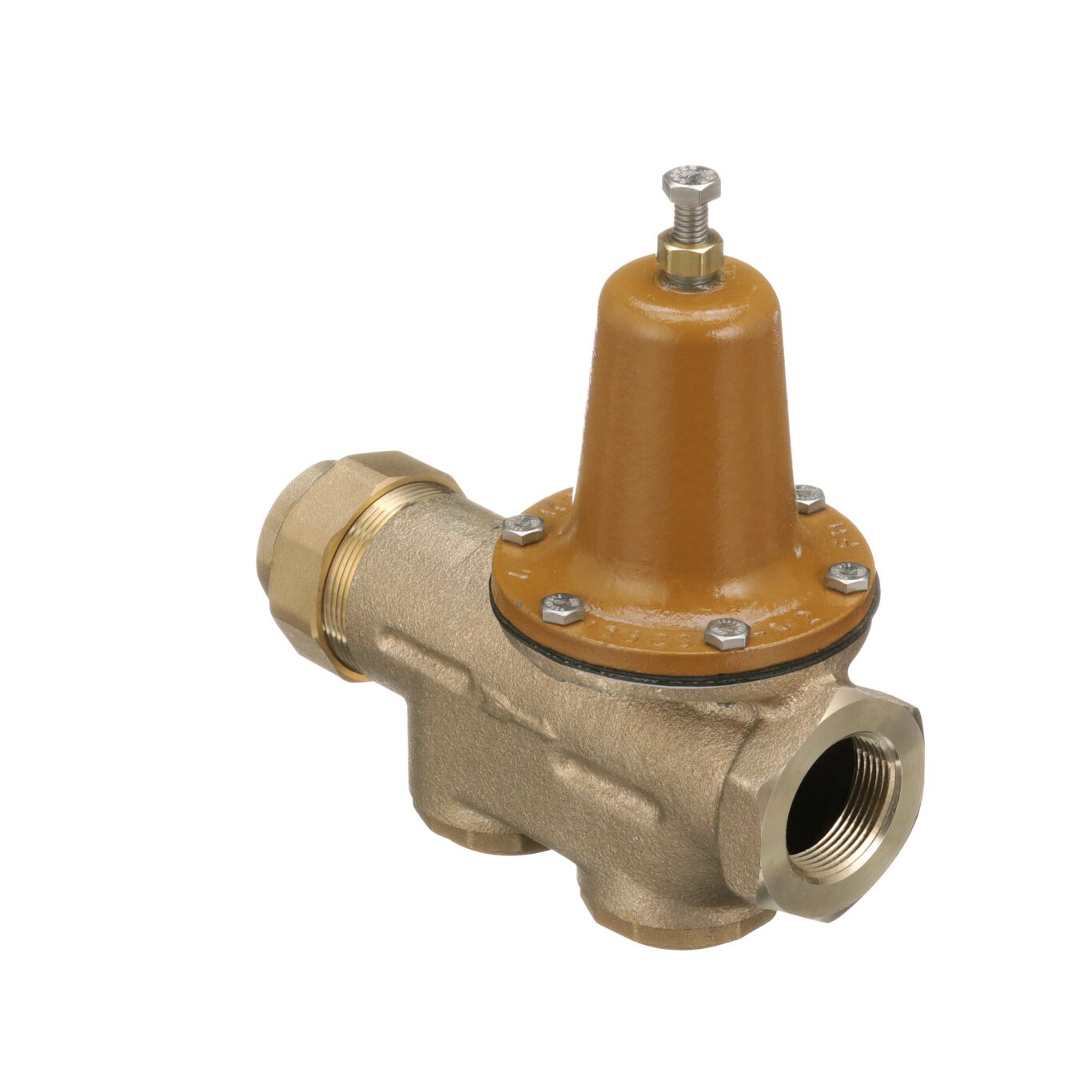

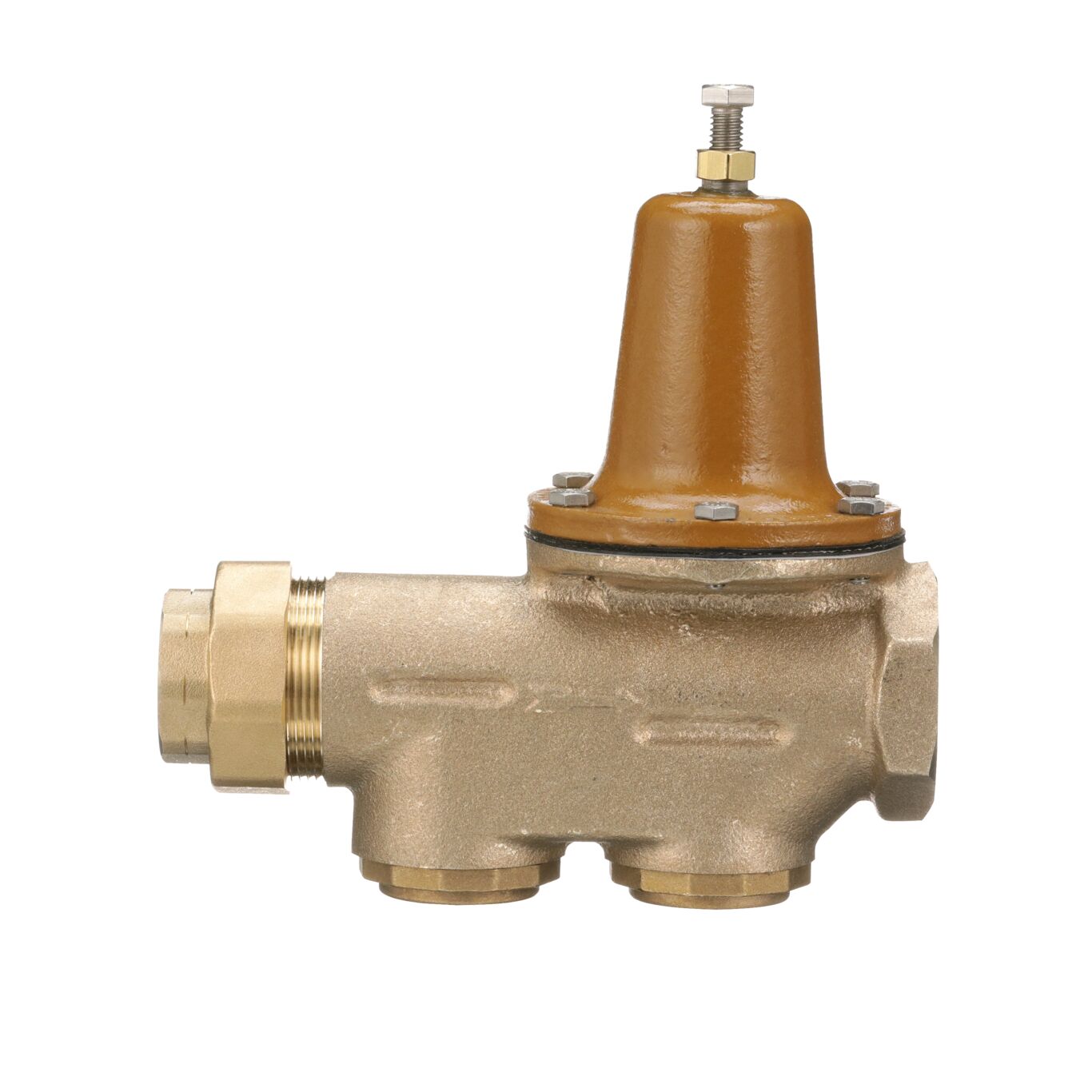

1 1/4 In Lead Free Water Pressure Reducing Valve, NPT Female Union x NPT Female, SS Seat, Adjustable 25-75 psi

  • NPT threaded female union inlet by NPT female outlet
  • Sealed spring cage with stainless steel cage screws
  • Integral stainless steel strainer removable for cleaning
  • Replaceable seat module
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.7 to 5.2
Body Material Lead Free Copper Silicon Alloy
Brand Watts
Buy American Act Compliant YES
Corrosion Resistant Coating No
Disc Material EPDM
EAN 098268331431
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Union Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009392
Series LF25AUB-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Does Not Apply To Product
Valve Style Standard
