LF560

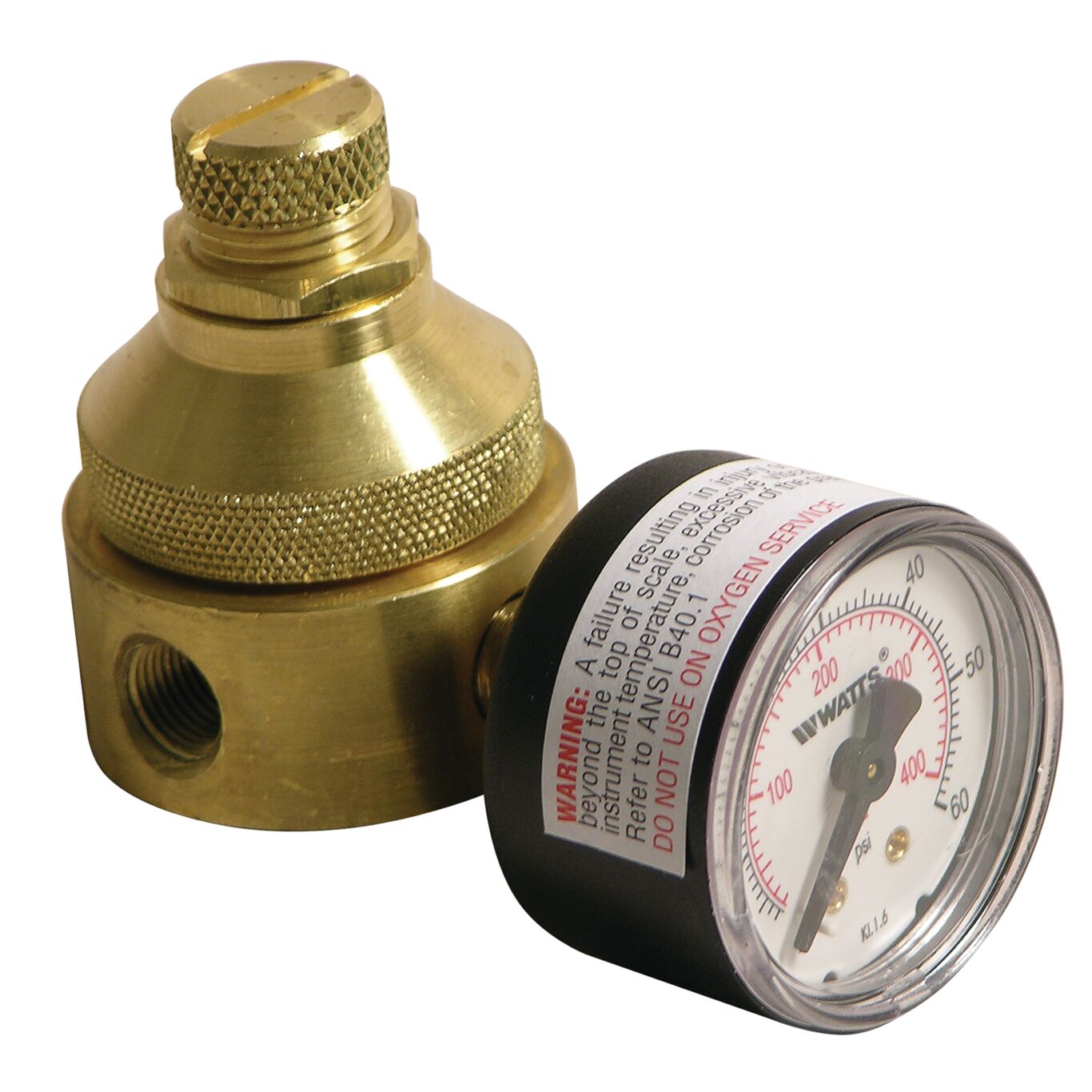

Lead Free* Mini Brass Water Pressure Regulators
LF560
Lead Free* Mini Brass Water Pressure Regulators
Features
- Small, economical water pressure reducing valve with oversized orifices
- Rugged Lead-free* brass body with female threaded inlet and female threaded outlet
- Stainless steel stem and spring
- Heavy-duty adjusting screw that is both slotted and knurled
Series LF560 Mini Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is ideal where a small, economical package is required such as on special industrial process applications, miscellaneous plumbing applications, and OEM equipment. Series LF560 is suitable for water supply pressures up to 300 psi (21 bar). The LF560 features Lead Free* construction to comply with Lead Free* installation requirements.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF560
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

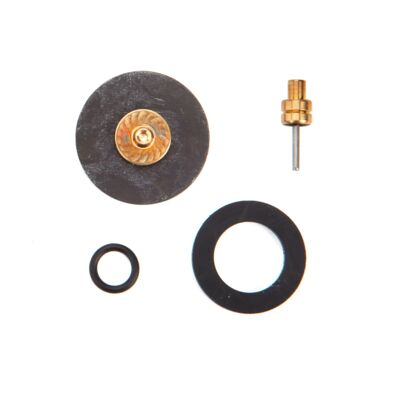

LFRK H560 1/8 - 3/4
Repair Kit |
Series 560 and H560 Mini Water Pressure Regulator</br></br> |
Diaphragm Assembly, Disc Assembly And Bottom Plug O-Ring</br> |
