LFN45BM1-DU-S 3/4

Part of the LFN45B Series

Ordering Code: 0009481

UPC: 098268332469

Lead Free: YES

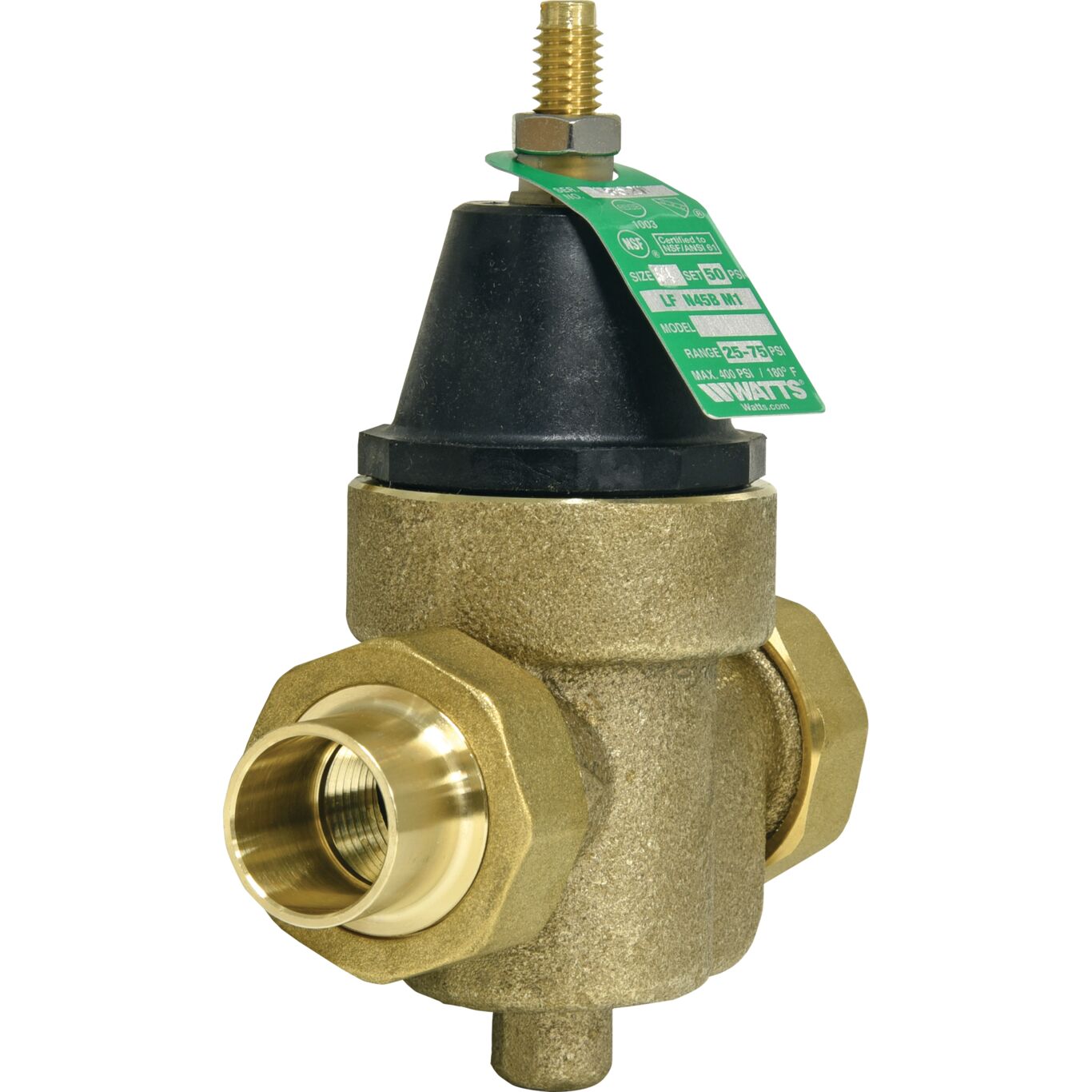

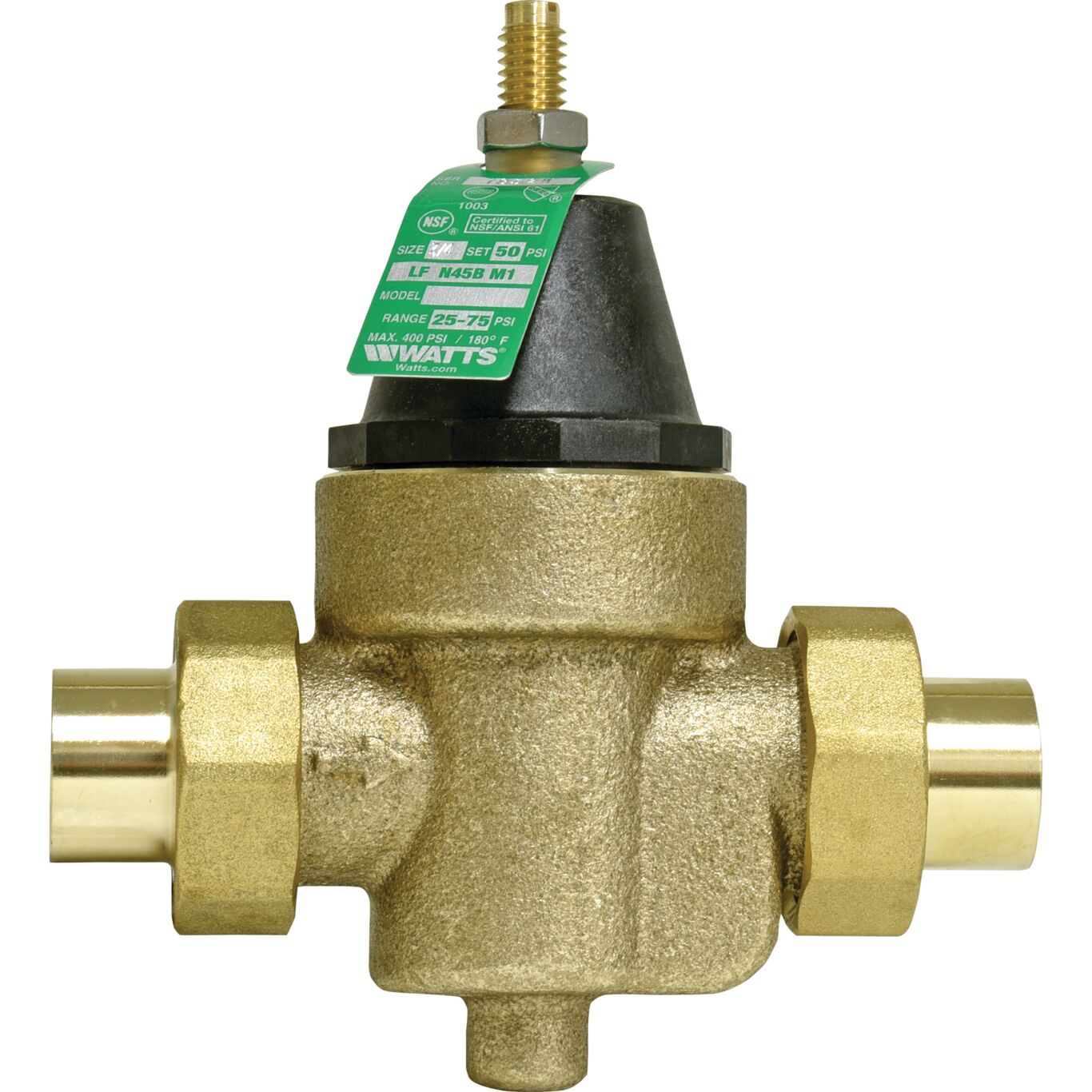

3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Solder, Elastomer Disc, Max 400 Psi, Adjust 25-75 Psi

This 3/4 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, double union solder inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 PSI (27.6 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Sealed spring cage for accessible outdoor or pit installations
  • Integral stainless steel strainer removable for cleaning
  • Solder union inlet and outlet
  • Thermoplastic seat and cage
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Copper Silicon Alloy
BrandName Watts
Corrosion Resistant Coating No
Disc Material Elastomer
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 3/4 IN
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LFN45BM1-DU-S 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Union Joint
Outlet Thread Type Does Not Apply To Product
Part Number 0009481
Series LFN45B
Standard Reduced Pressure Setting-BAR 345.00
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
