LFN45BM1-U-QC 1

Part of the LFN45B Series

Ordering Code: 0121280

UPC: 098268582307

Lead Free: YES

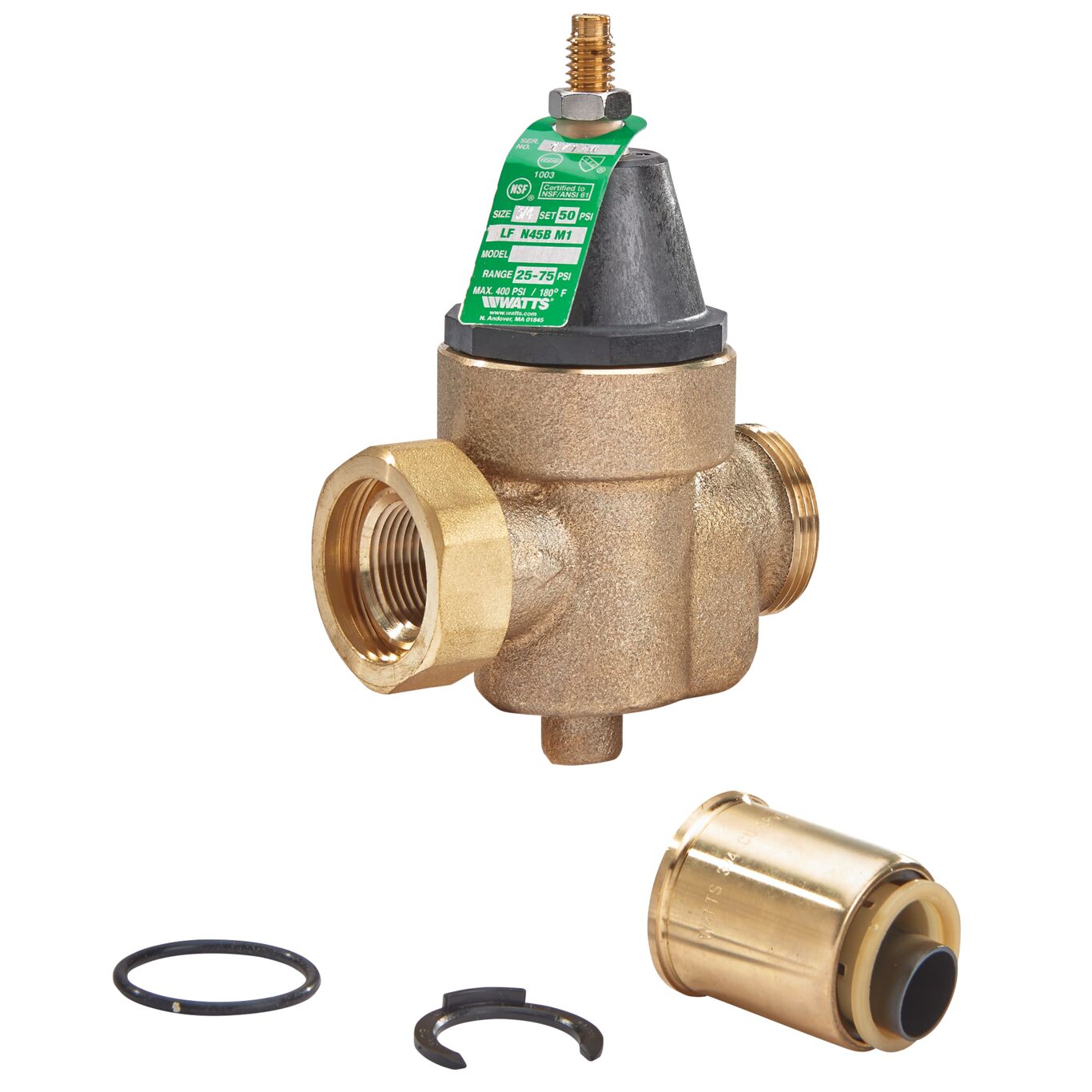

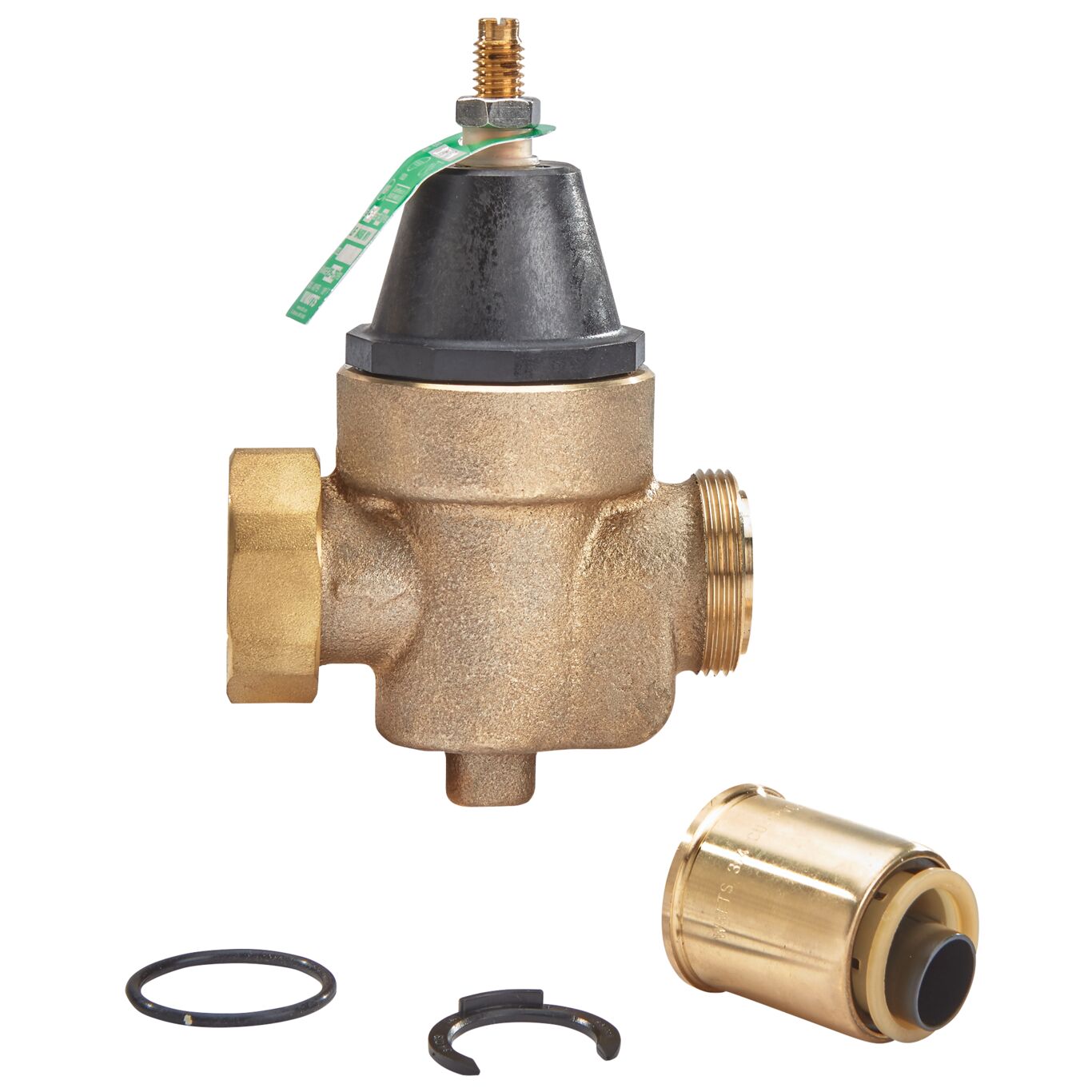

1 In Lead Free Water Pressure Reducing Valve, Single Union, Quick Connect, Elastomer Disc, Max Work 400 Psi, Adjust 25-75 Psi

This 1 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a bronze body construction, Quick-Connect union inlet and NPT female outlet, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass, and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 PSI (27.6 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Thermoplastic seat and cage
  • Quick-Connect union inlet and NPT female outlet
  • Sealed spring cage for accessible outdoor or pit installations
  • Integral stainless steel strainer removable for cleaning
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Cast Copper Silicon Alloy
BrandName Watts
Corrosion Resistant Coating No
Disc Material Elastomer
Gauge Option No Gauge
Inlet Connection Size 1 IN
Inlet Connection Type Quick Connect
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature-Fahrenheit 33
ModelNumber LFN45BM1-U-QC 1
Outlet Connection Size 1 IN
Outlet Connection Type Quick Connect
Outlet Thread Type Does Not Apply To Product
Part Number 0121280
Series LFN45B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Valve Style Standard
