LFN55B-DU 1 1/4 IN

Part of the LFN55B Series

Ordering Code: 0009671

UPC: 098268334616

Lead Free: YES

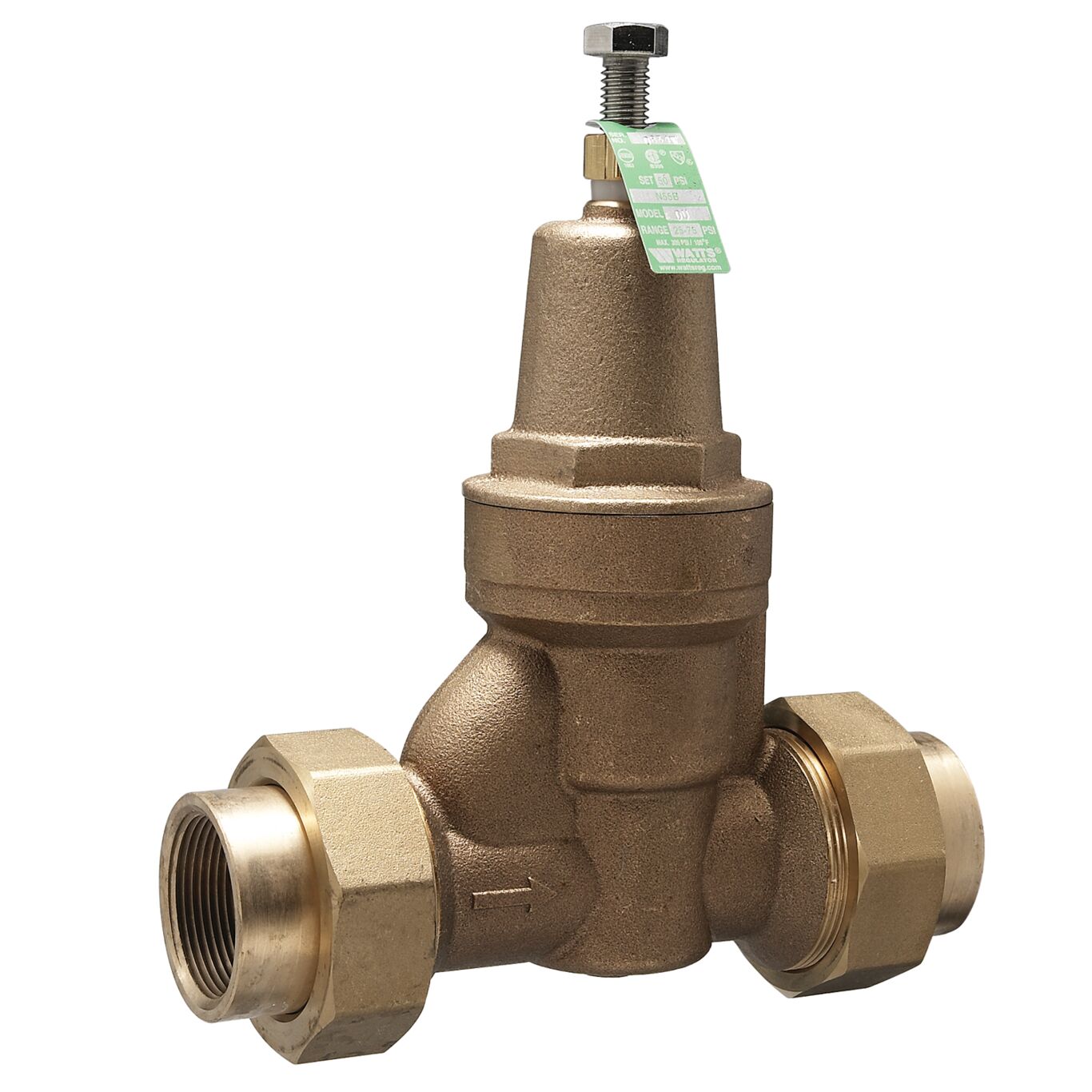

1 1/4 IN Lead Free Brass Water Pressure Reducing Valve, Double Union, FPT, Adjust 25-75 psi, Max Work 300 psi

  • Serviceable in line
  • Integral stainless steel strainer removable for cleaning
  • Thermoplastic seat and bronze cage
  • Sealed spring cage for accessible outdoor or waterworks pit installations
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Brass
Brand Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
EAN 098268334616
Gauge Option No Gauge
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Union Joint
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Union Joint
Outlet Thread Type NPT
Part Number 0009671
Series LFN55B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
