LFN55B-DU-S 1 1/2 IN

Part of the LFN55B Series

Ordering Code: 0009681

UPC: 098268334678

Lead Free: YES

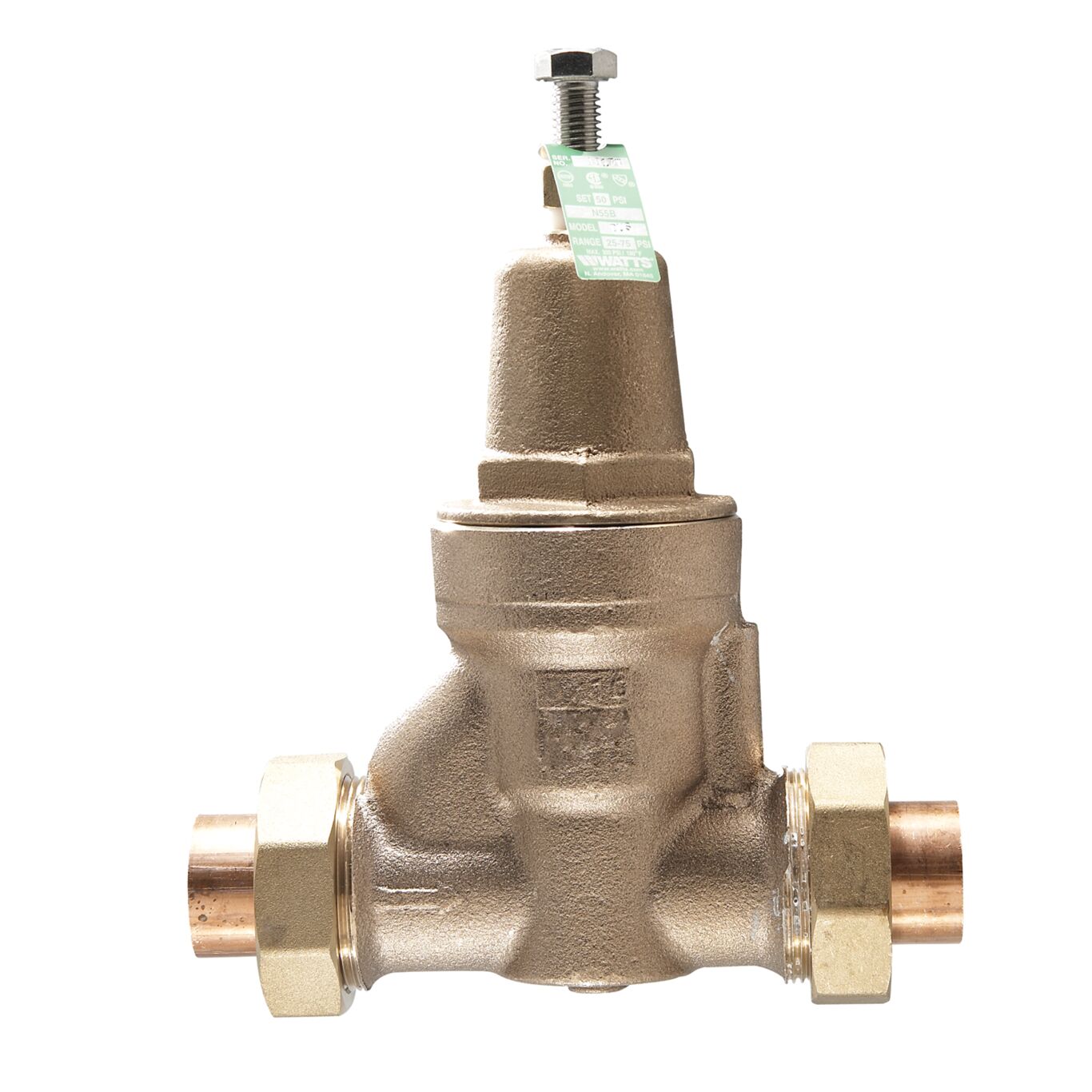

1 1/2 IN Lead Free Brass Water Pressure Reducing Valve, Double Union, Solder, Adjust 25-75 PSI, Max Work 300 PSI

This 1 1/2 inch water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, solder union inlet and outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Integral stainless steel strainer removable for cleaning
  • Serviceable in line
  • Sealed spring cage for accessible outdoor or waterworks pit installations
  • Thermoplastic seat and bronze cage
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Brass
BrandName Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
Gauge Option No Gauge
Inlet Connection Size 1 1/2 IN
Inlet Connection Type Union Solder
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature-Fahrenheit 33
ModelNumber LFN55B-DU-S 1 1/2 IN
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Union Solder
Outlet Thread Type Does Not Apply To Product
Part Number 0009681
Series LFN55B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
