LFN55BDU-G 1 1/4

Part of the LFN55B Series

Ordering Code: 0009767

UPC: 098268092745

Lead Free: YES

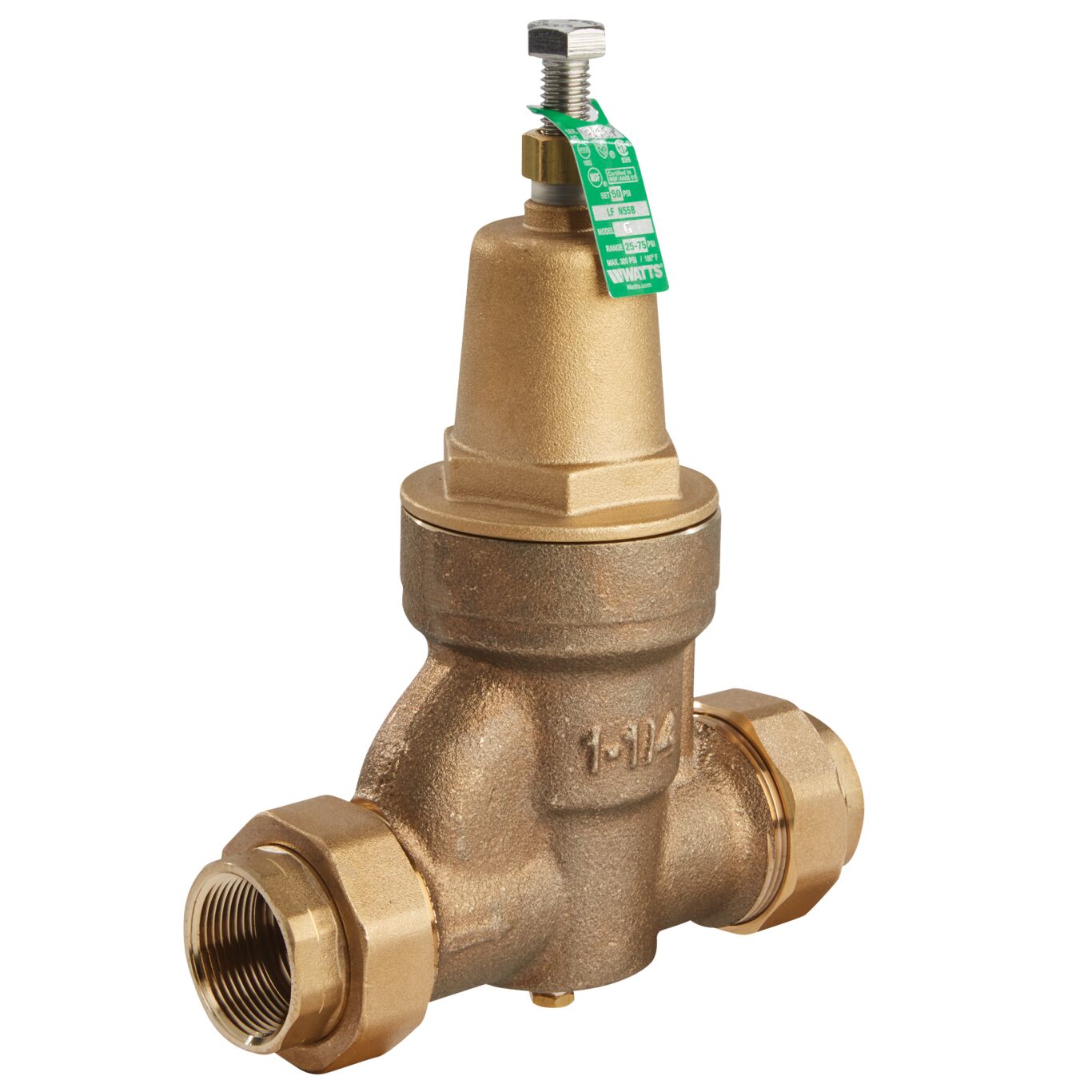

1 1/4 IN Lead Free Brass Water Pressure Reducing Valve, Double Union, FPT, Adjust 25-75 PSI, Max Work 300 PSI, Gauge Tapping

This 1 1/4 inch water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, female NPT union inlet and outlet connection, integral stainless steel strainer, thermoplastic seat, brass sealed spring cage for accessible outdoor waterworks or pit installations, a thermal expansion bypass, and a gauge port tapping furnished with a pipe plug. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

Product Features

  • Gauge port tapping allows downstream pressure measurements
  • Sealed spring cage for accessible outdoor or waterworks pit installations
  • Engineered copper-silicon body material
  • Integral stainless steel strainer removable for cleaning
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Brass
BrandName Watts
Corrosion Resistant Coating No
Disc Material Elastomer
Gauge Option Gauge Tapping
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Union Joint
Inlet Thread Type FPT
LeadFree YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature-Fahrenheit 33
ModelNumber LFN55BDU-G 1 1/4
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Union Joint
Outlet Thread Type FPT
Part Number 0009767
Series LFN55B
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
