N45B-EZ
Discontinued

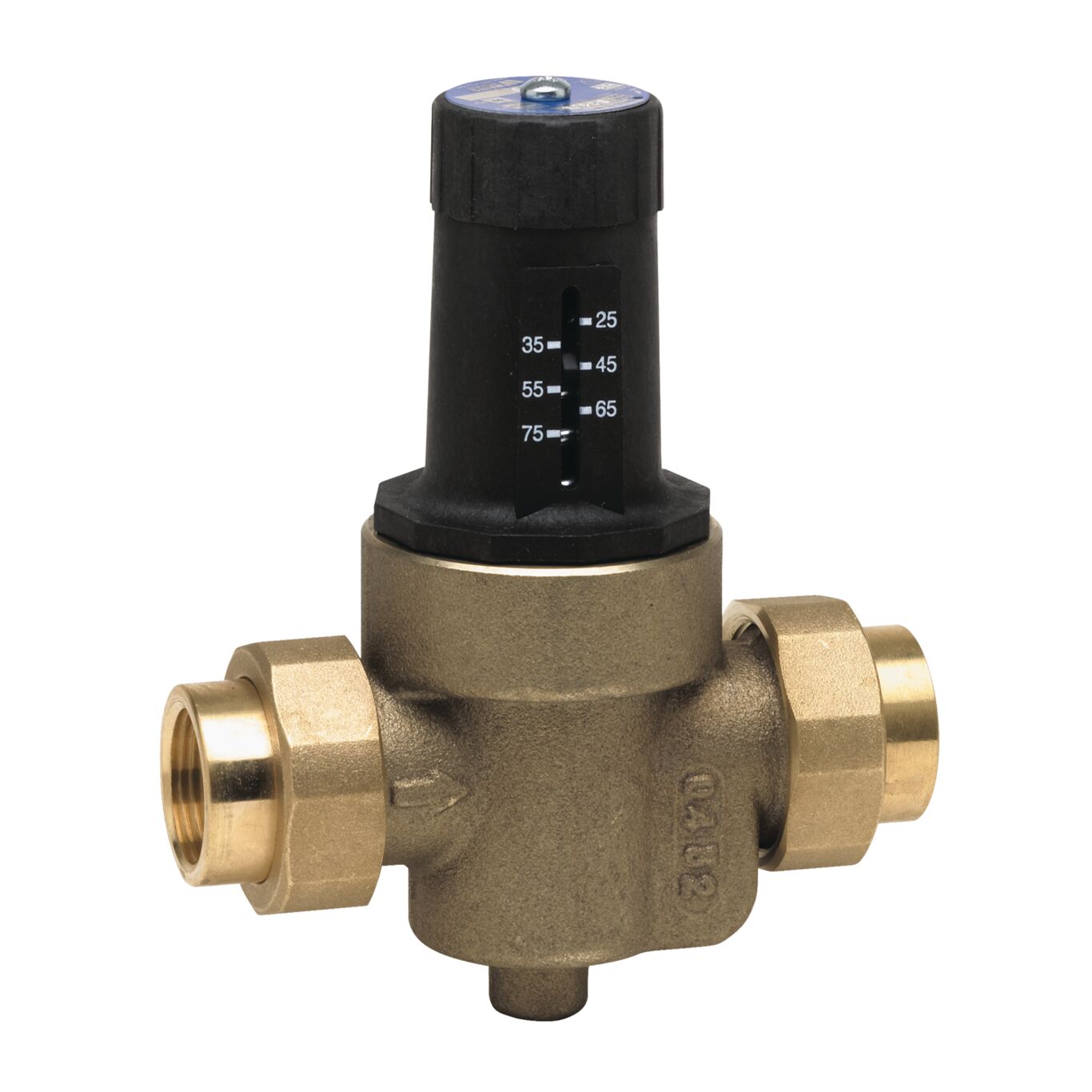

Water Pressure Reducing Valves with Easy to Adjust Pressure Setting
Series N45B-EZ Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and reduction of water consumption. It consists of a bronze body construction, integral stainless steel strainer, thermoplastic cage and seat, thermal expansion bypass, factory calibrated outlet pressure adjustment and easily adjustable pressure setting. The N45B-EZ Series is available with either double union threaded or solder end connections. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (345 kPa).
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific N45B-EZ
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
